PGE23

The Bourdon tube pressure gauge measures pressure through the principle of elastic deformation. Its core component is a curved metal tube (Bourdon tube). When the measured medium pressure enters the tube, the non-circular cross-section tube body deforms outward due to internal pressure, causing the free end to move. This displacement is amplified by a sector gear mechanism, which drives the pointer to rotate and indicate the pressure value on the dial. The entire system requires no external power supply and features a simple and reliable structure. Different configurations such as C-type or helical Bourdon tubes can accommodate various ranges, but overload and severe vibration should be avoided to maintain measurement accuracy.

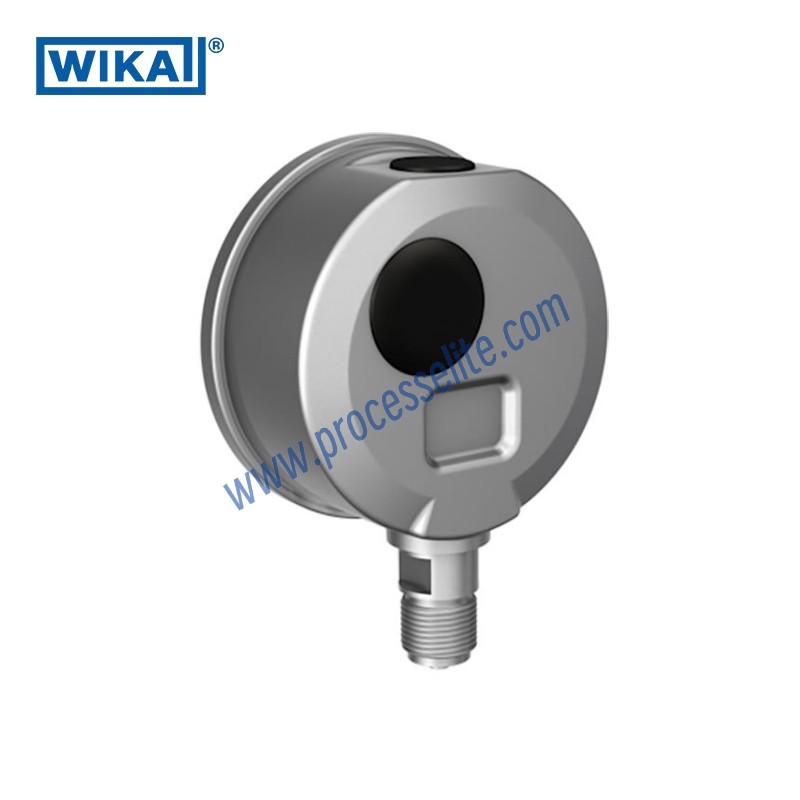

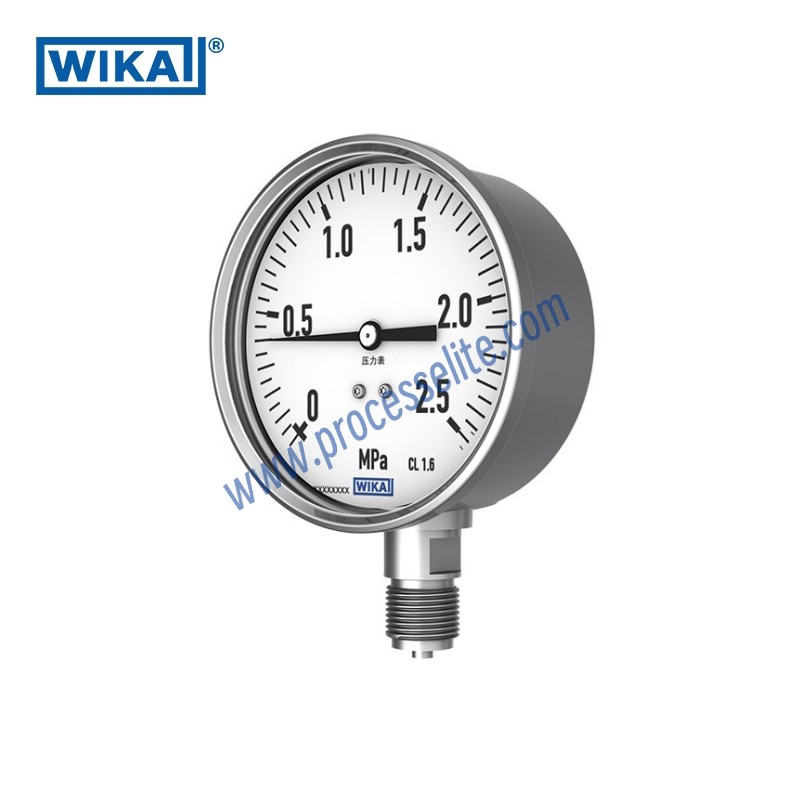

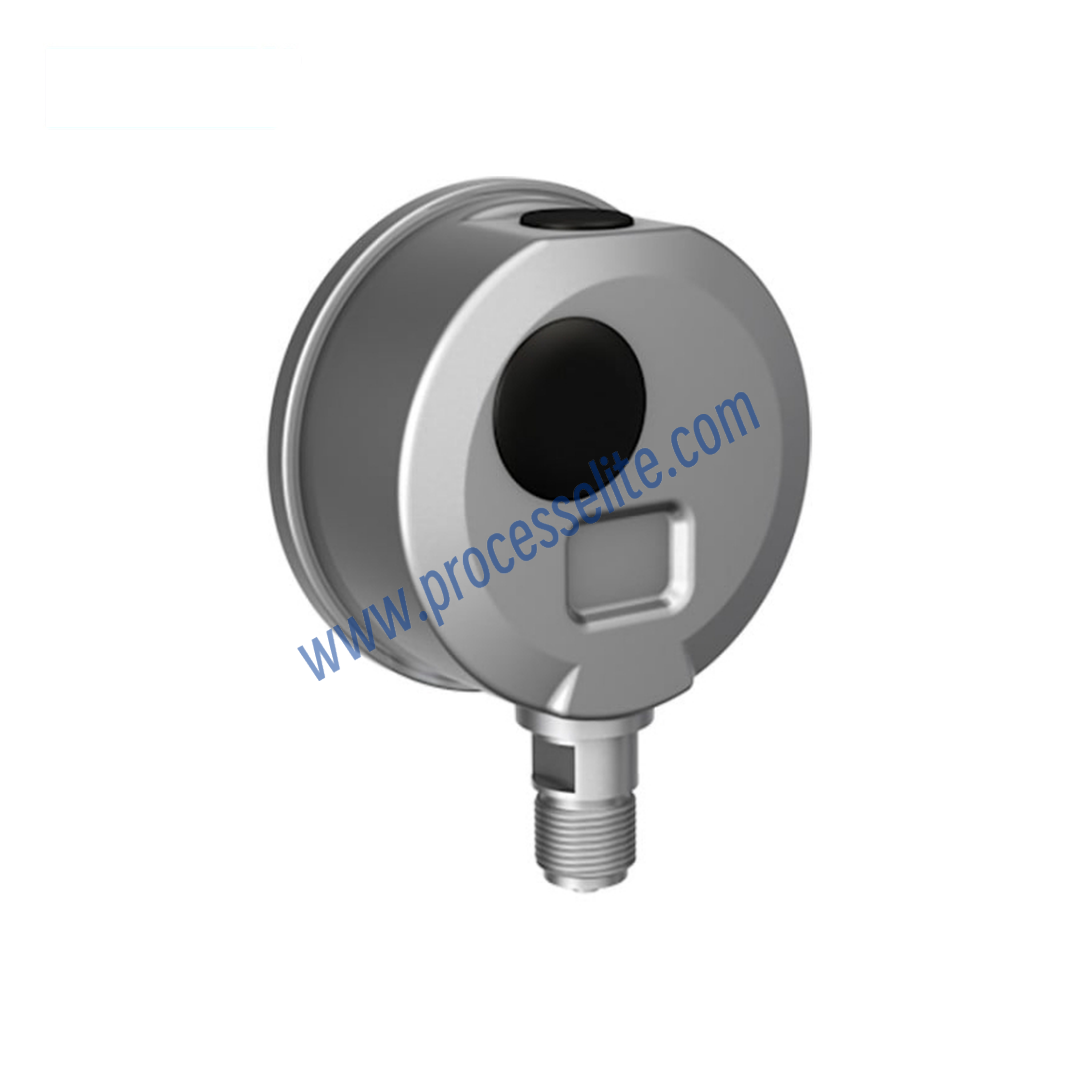

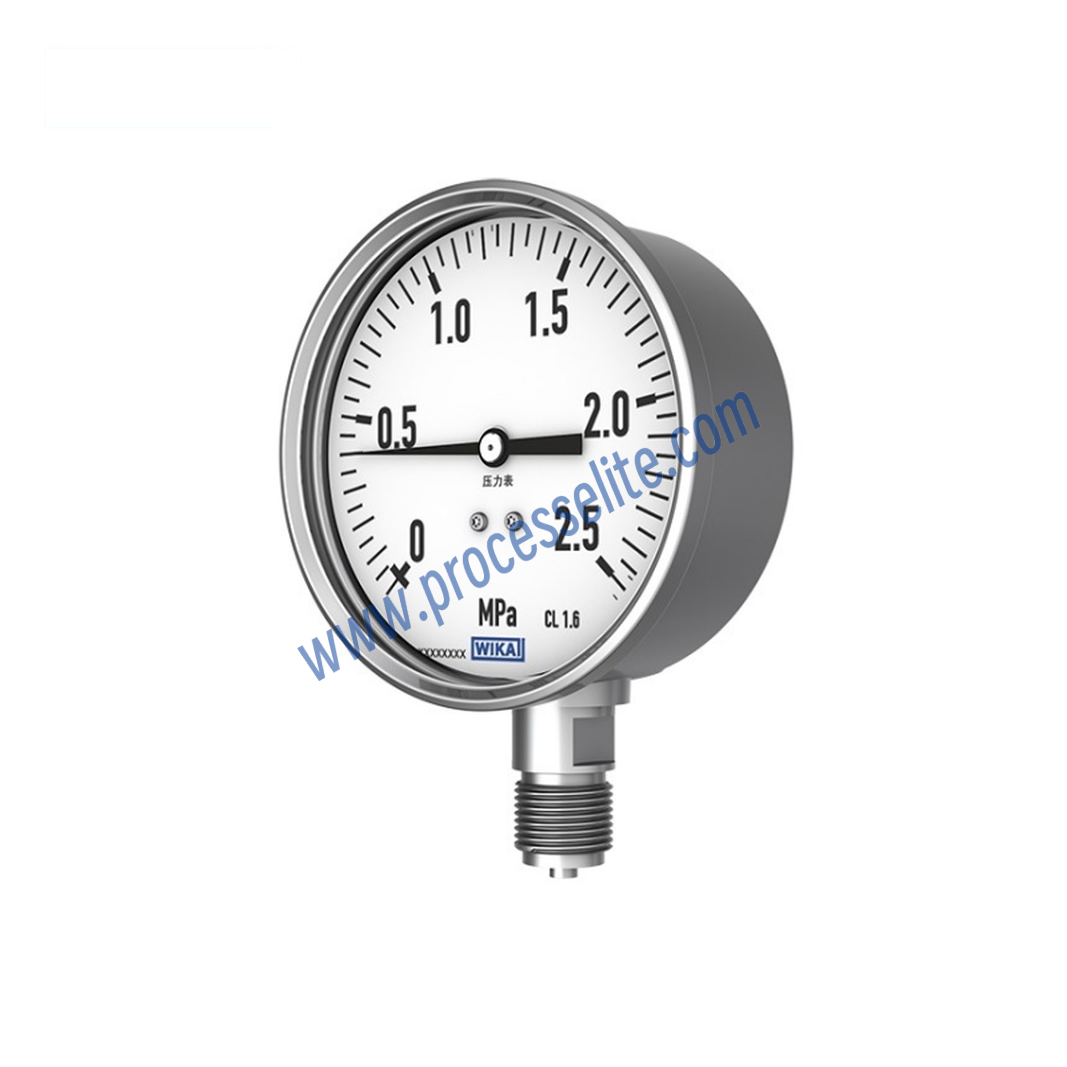

The Bourdon tube pressure gauge features a stainless steel case and wetted parts, and its unique, straightforward design offers a competitive price-performance ratio. It is widely used for pressure measurement of liquid and gaseous media in industrial applications. It also meets the demands of process control and high-volume OEM customer requirements. Suitable for non-viscous or non-crystallizing corrosive gases and liquids, it is used in pharmaceuticals, semiconductors, water treatment, machinery, and basic plant infrastructure.
