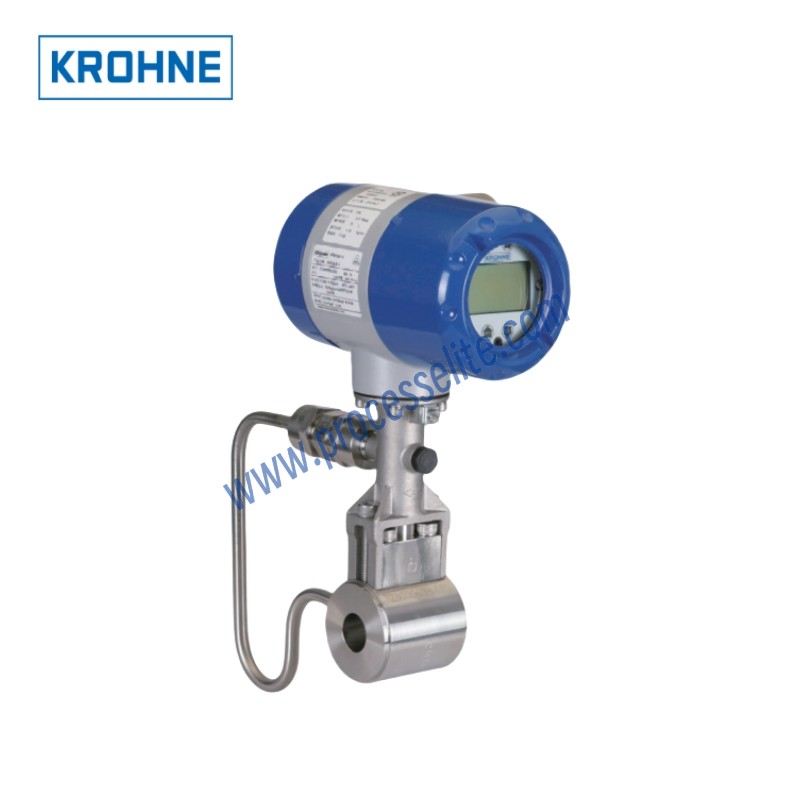

VFM1091G

Product brand:

Krohne/Krohne

Product feature:

• No moving mechanical parts, low maintenance • High measuring accuracy, low pressure loss • Integrated temperature, pressure and flow measurement • Online temperature and pressure compensation • Instrument sizes DN15 - DN300 • Sandwich version DN15 - DN100 • Metal gasket sealing, safe and reliable • Centering rings for sandwich version ensure installation quality • Optional battery power supply • HART protocol • All application parameters can be set via push buttons • Flow self-diagnostic function • KROHNE calculation software ensures accurate sizing • High measurement accuracy • 100% pressure tested, 100% product verified • Multiple technical approvals ensure quality

Favorite

Compare

Configure

Measuring principle:

The vortex flowmeter measures based on the Karman vortex street principle. As the fluid passes the bluff body, vortices are alternately shed on both sides, rotating in opposite directions. Each vortex creates a low-pressure zone, which is detected by the sensor and converted into electrical pulse signals. Within the permissible measuring range of the flowmeter, vortices are generated regularly. Therefore, the vortex frequency is proportional to the volume flow rate.

Product positioning:

Using scenario:

The vortex flowmeter is suitable for utility applications, advanced energy management systems and safety instrumented systems (SIS). It features integrated pressure & temperature compensation, energy calculation functions for advanced energy management, a rugged instrument design, and a high cost-performance solution for demanding process conditions and basic applications.
