RIA14

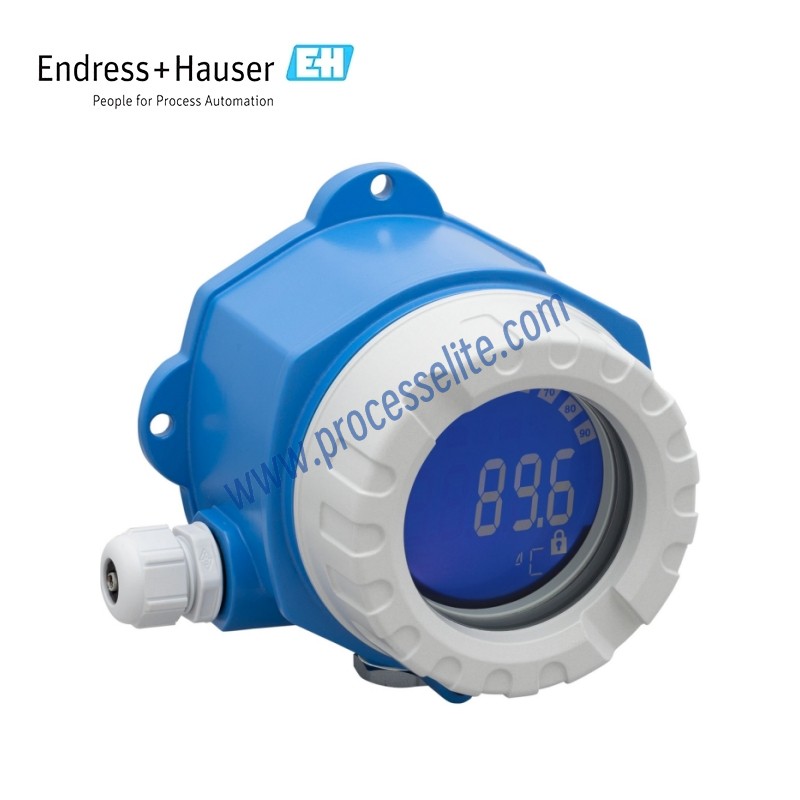

The digital indicator records analog measurement signals and displays them on the screen. The LCD shows current measured values numerically, with a bar graph indicating limit deviations. The digital indicator is connected to a 4 to 20 mA loop and powered via loop supply. Controlled by a microprocessor, it features a single‑chamber field‑mounted enclosure and a backlit LCD. With the enclosure cover opened, the measuring range, decimal point and offset can be easily configured using three internal keys. Configuration can also be performed via a PC running Field Care software.

The indicator features a large backlit display for measured values. An optional bar graph provides visual presentation of readings for a quick process overview. Editable plain text can show engineering units or TAG information. A signal is triggered with open‑collector output when limit values are exceeded. The indicator requires no separate power supply and is powered directly from the 4 to 20 mA loop. The enclosure is available in cast‑aluminum or stainless steel, with Ex d approval as an option.
