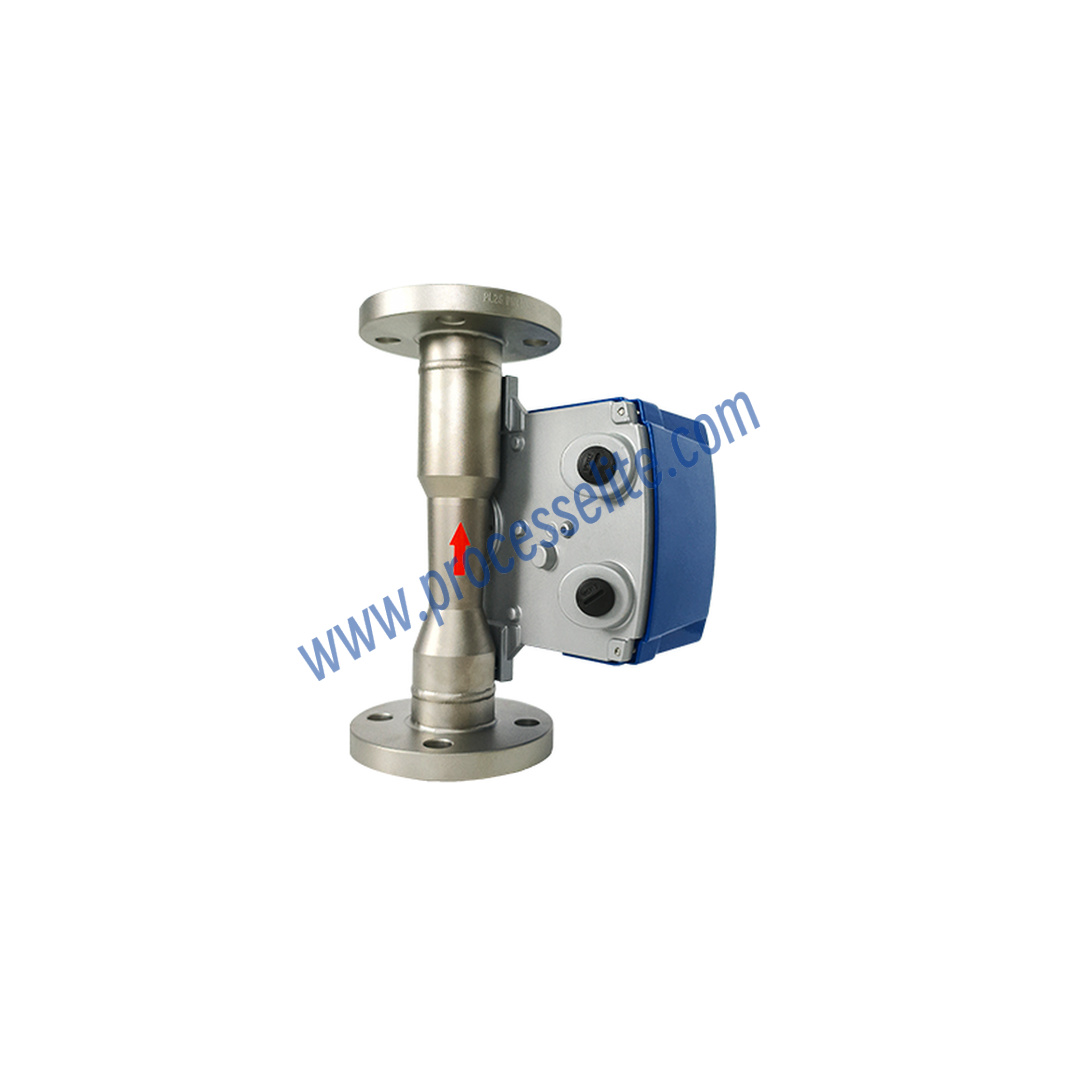

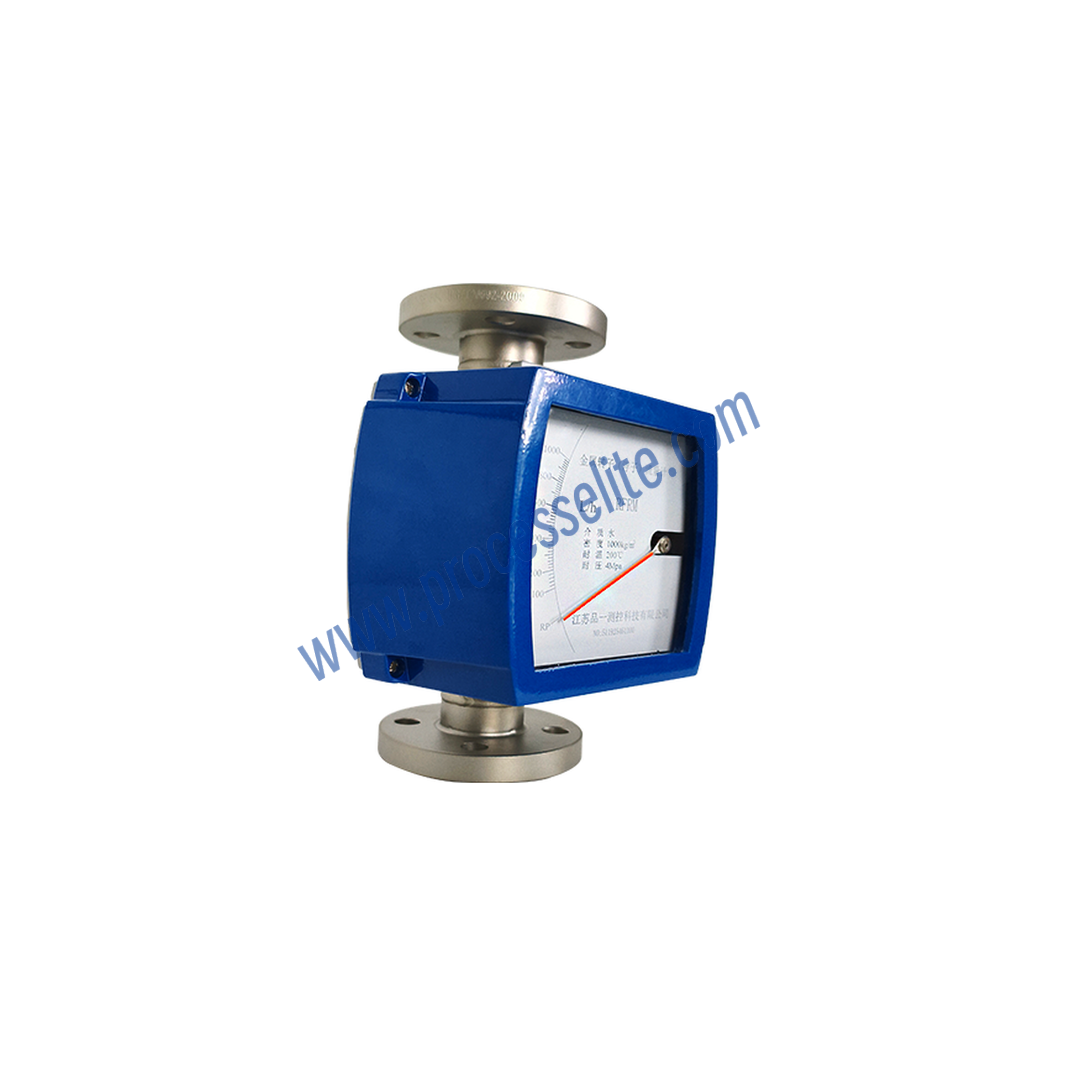

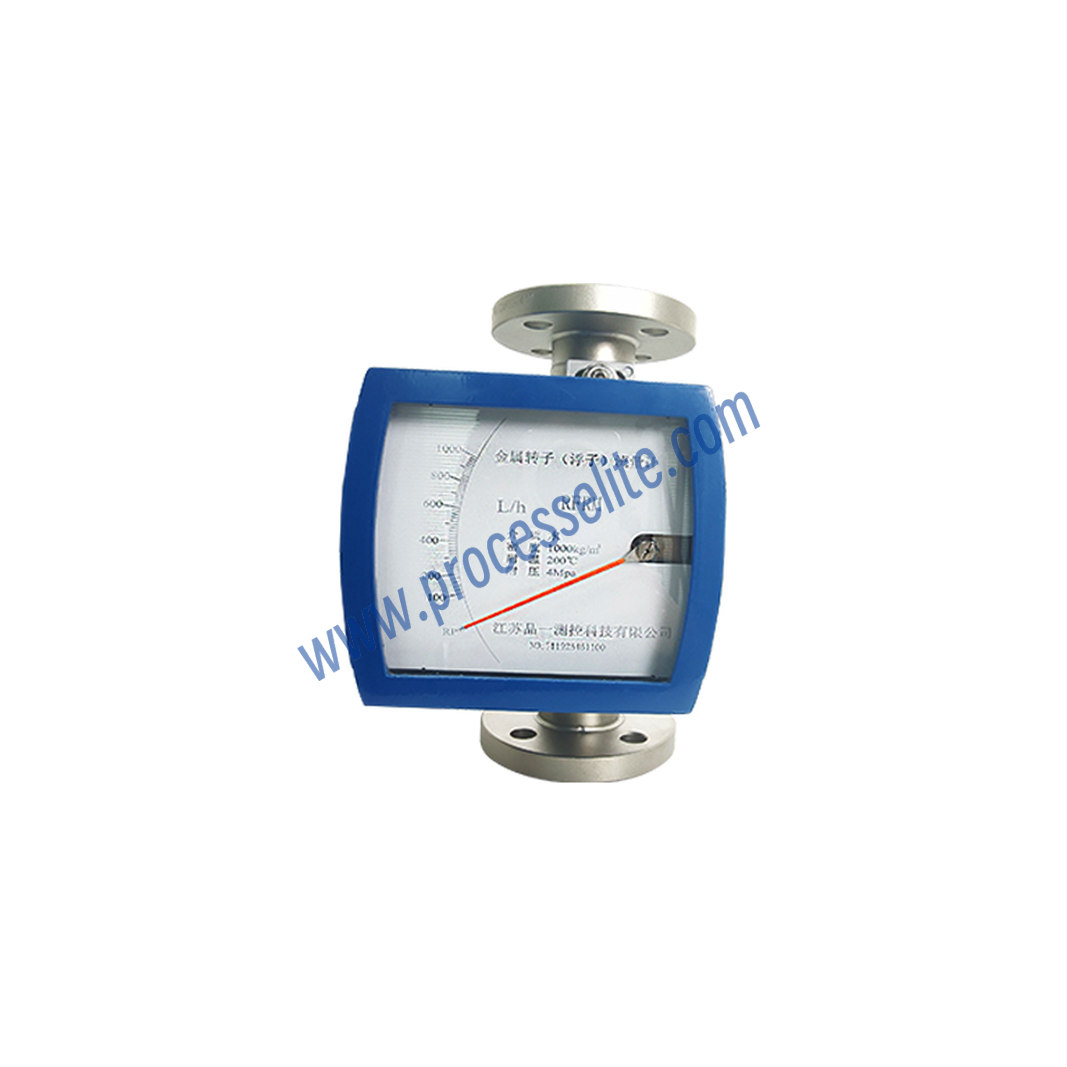

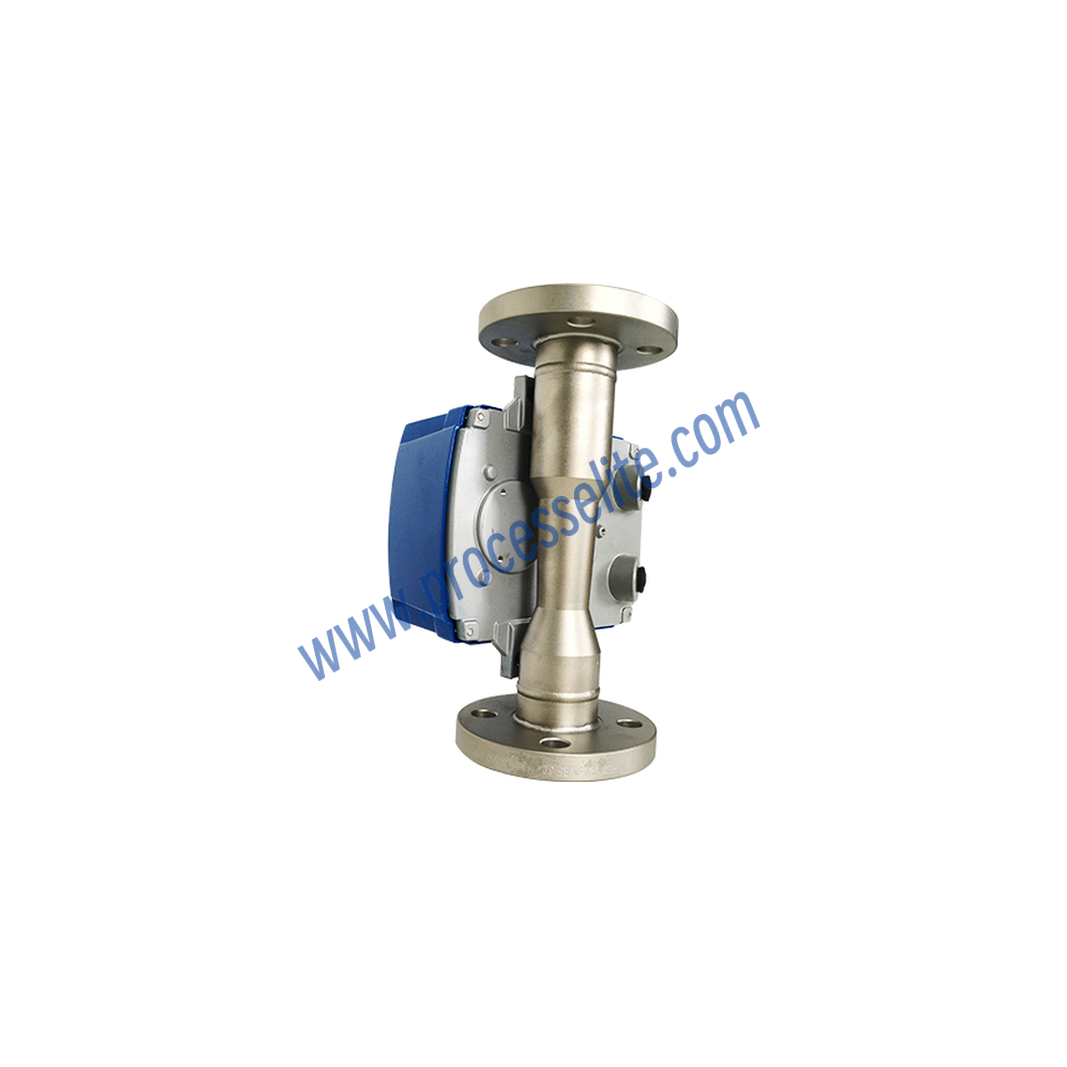

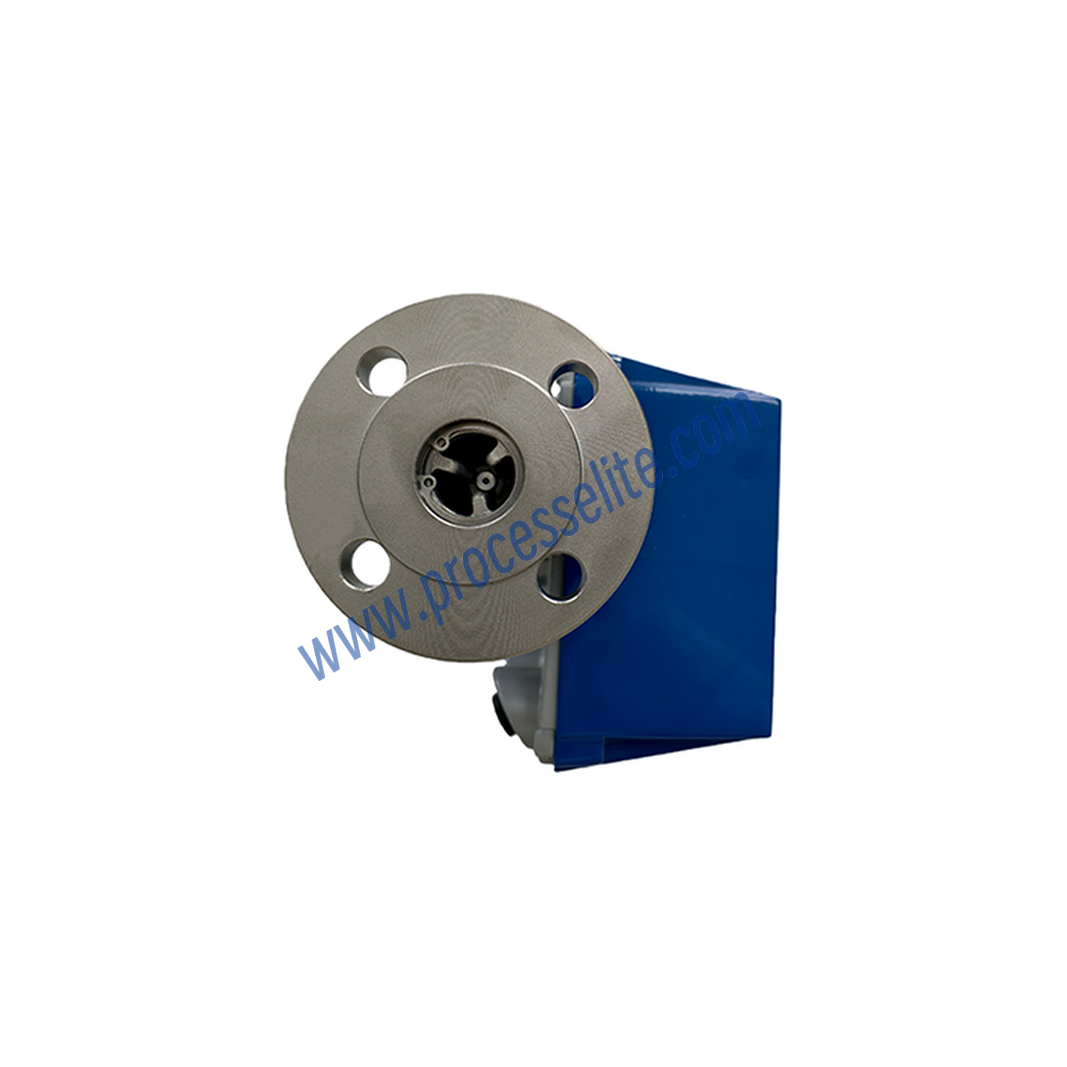

RFRM Metal Tube Rotameter - Processelite

*Picture for reference only !

Product name:

Metal Tube Rotameter

Product series:

RFRM

Product brand:

PE/PE

Product feature:

• Compact size, wide measuring range, user-friendly • Applicable to flammable & explosive hazardous locations • Customizable measurement modes • Fits small bore & low flow rate medium measurement • Reliable performance, low maintenance, long service life • Dual large LCD with optional backlight, displays instantaneous & total flow synchronously

Favorite

Compare

Configure

Measuring principle:

Metal tube float rotameters include local and intelligent configurations. Local type: Magnetic coupling between indicator follower magnet and float magnet rotates the pointer for direct flow reading on the dial. Intelligent type: Coupled rotation drives sensing magnet and pointer; magnetic signals are converted to electric signals, processed through A/D conversion, digital filtering, temperature compensation and MCU computation, then output via D/A and shown on LCD for instantaneous and cumulative flow display.

Product positioning:

Standard

Using scenario:

With superior performance, dependable quality and high cost-effectiveness, metal tube rotameters serve petrochemical, steel, metallurgical, food, pharmaceutical and water treatment fields extensively.

精度：

±1.5% o.r.

过程连接：

法兰

定制过程连接

口径：

DN 15~150

通讯方式：

无

4-20mA

4-20mA+HART

Modbus

人机界面：

有显示&不可操作

外壳材质：

铝/铸铝

接液材质：

304

316L

防爆型式：

非防爆

Ex d

防护等级：

IP65

供电电源：

无

24VDC

安装方式：

垂直

水平

适用介质：

液体

气体

All

Instruction

Operation

2D/3D

Certificate

Summary

Metal Tube Variable Area Flowmeter (Rotameter) RFRM
