Product name:

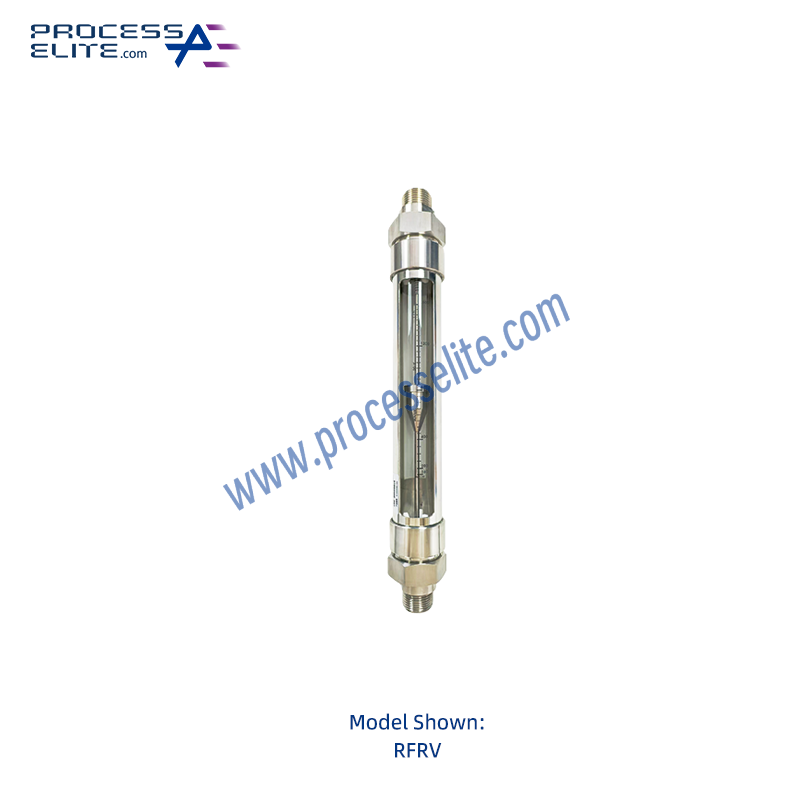

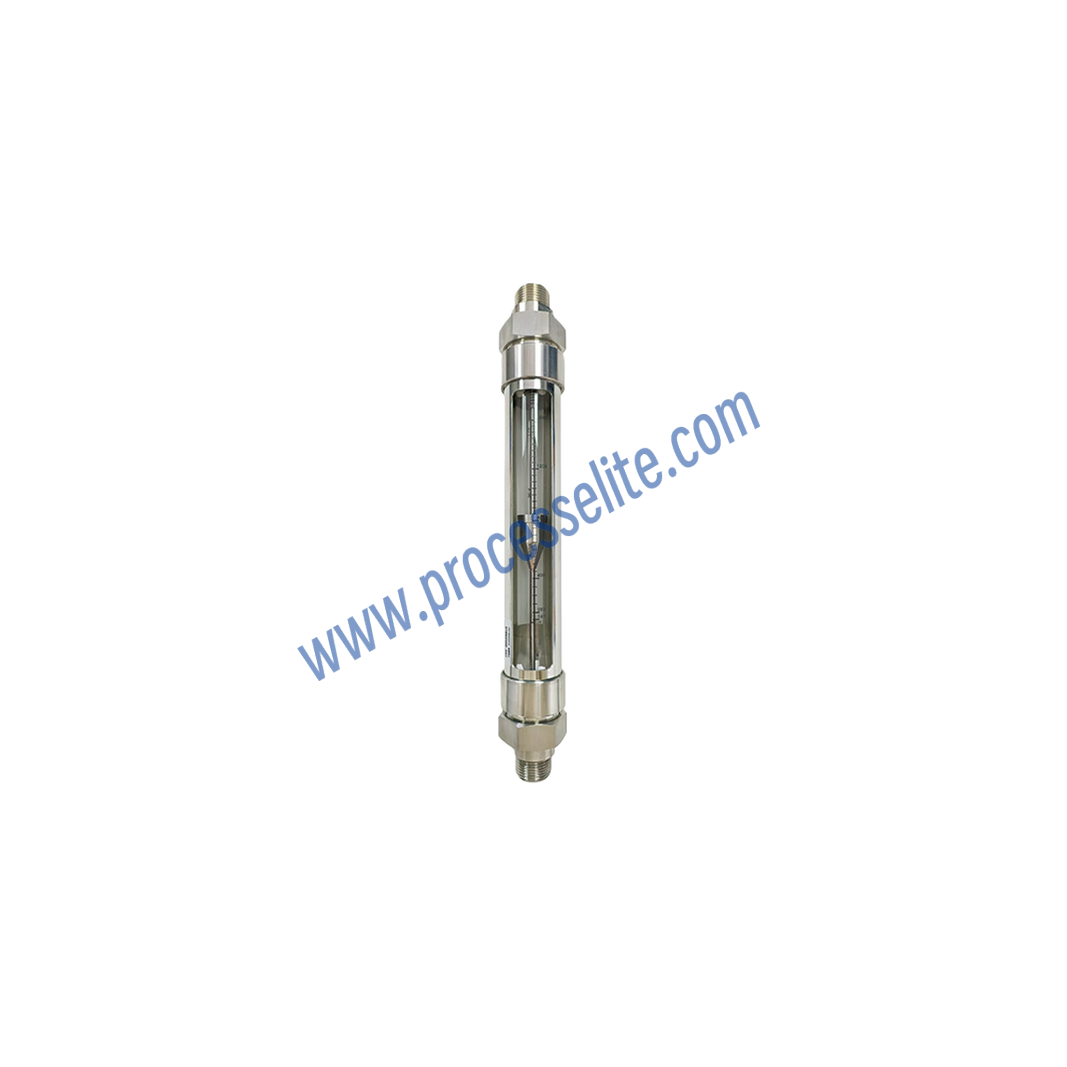

Glass Tube Rotameter

Product series:

RFRV

Product brand:

PE/PE

Product feature:

• High measurement accuracy • Good interchangeability • Wide flow range • Multiple connection types available • Easy installation and maintenance

Favorite

Compare

Configure

Measuring principle:

A glass rotameter adopts a vertical upward-widening tapered glass tube and an internal float as primary measuring parts. Upstream fluid creates differential pressure to elevate the float. Force balance among dynamic lift, buoyancy, viscous force and gravity fixes the float equilibrium height. Flow rate correlates linearly with float height and flow passage area, so float position is adopted for flow metering.

Product positioning:

General-Purpose

Using scenario:

Glass rotameter is a variable-area flowmeter for on-site indication of liquid/gas instantaneous flow in closed pipes ≤DN100, extensively applied in chemical, petrochemical, pharmaceutical and food industries.

精度：

±2.5% o.r.

±4.0% o.r.

过程连接：

法兰

螺纹

定制过程连接

口径：

DN 15~50

最高过程温度：

120℃

最大过程压力：

D15~DN25：1.0MPA

外壳材质：

玻璃+304

防爆型式：

非防爆

安装方式：

垂直

适用介质：

液体

气体
