All >> Level measurement >> RF Admittance Level Switch (Standard Type)

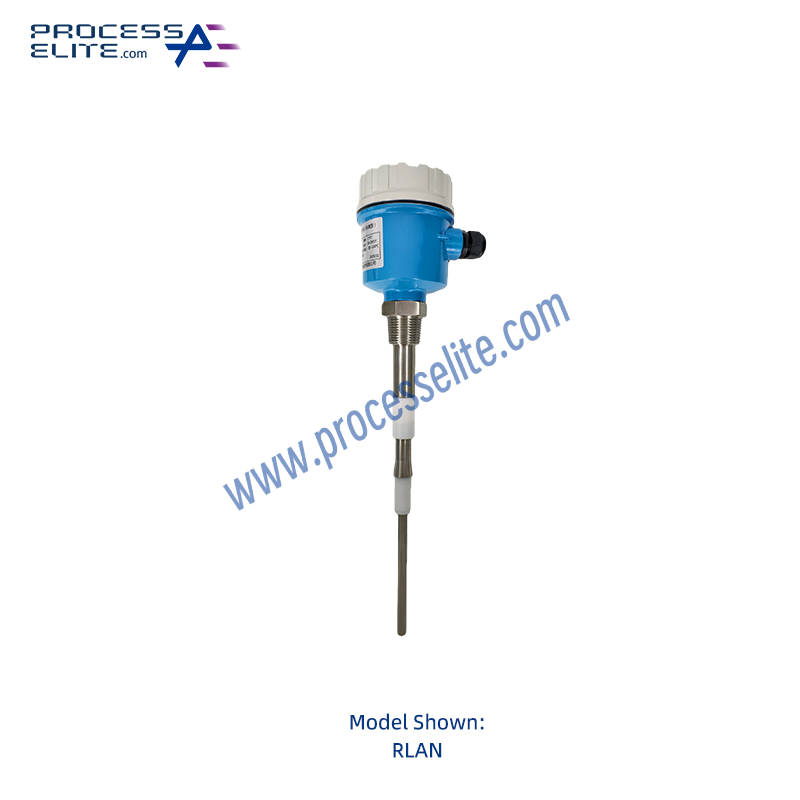

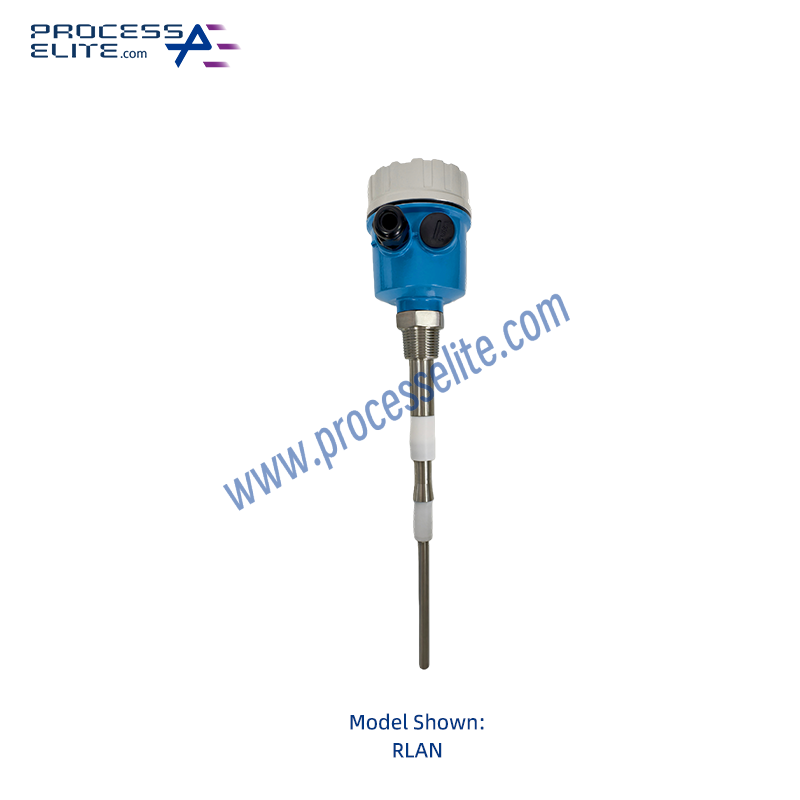

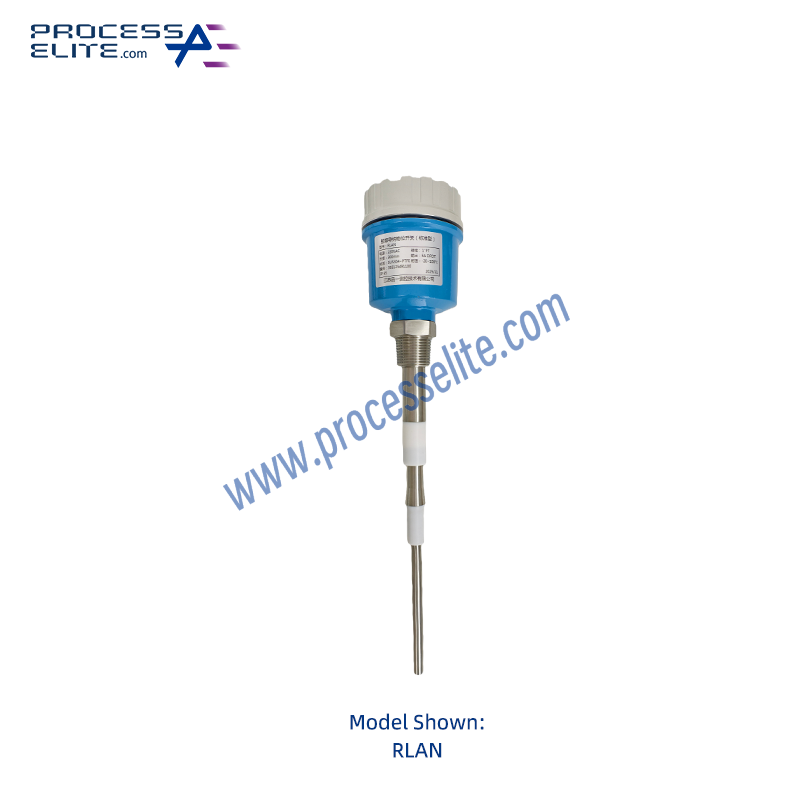

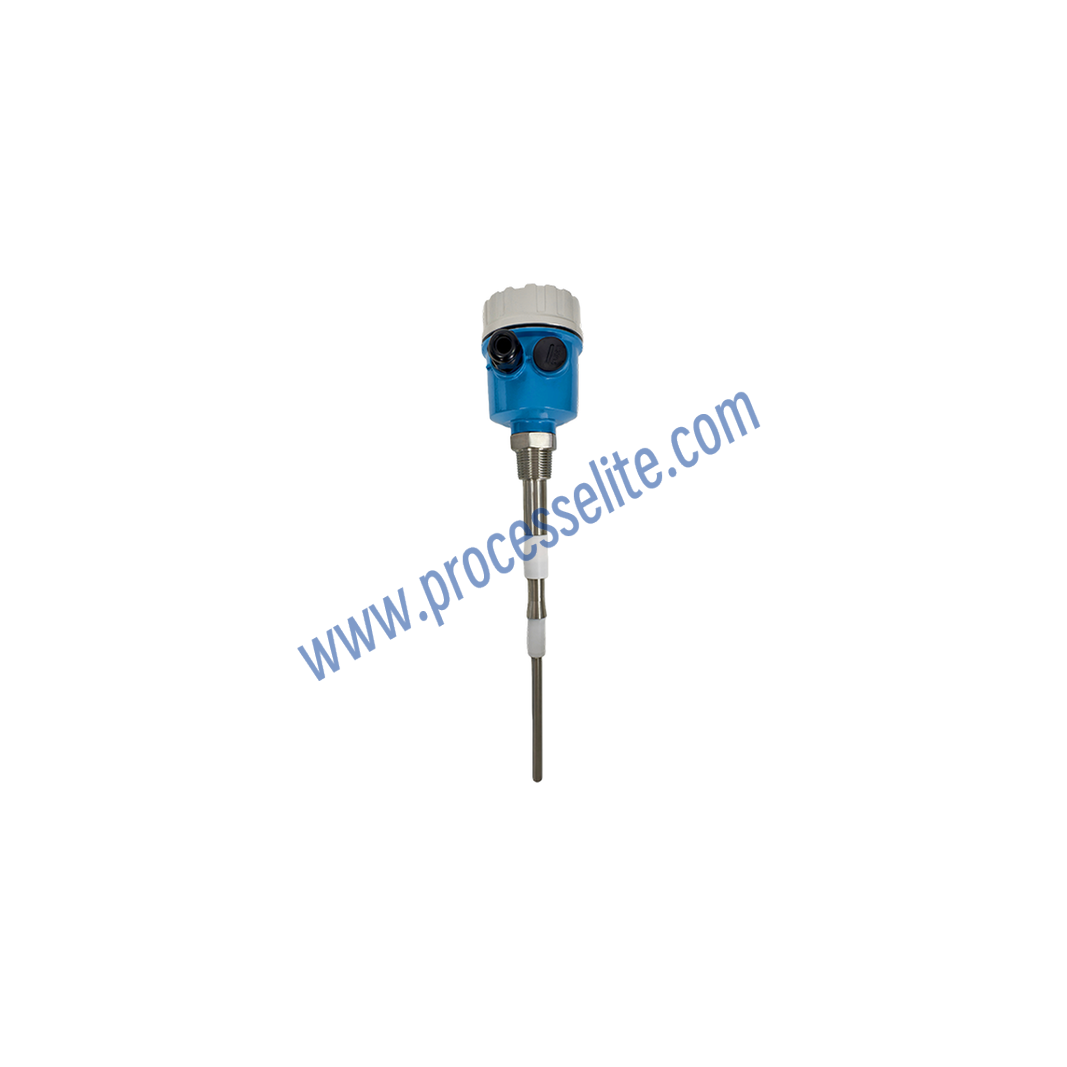

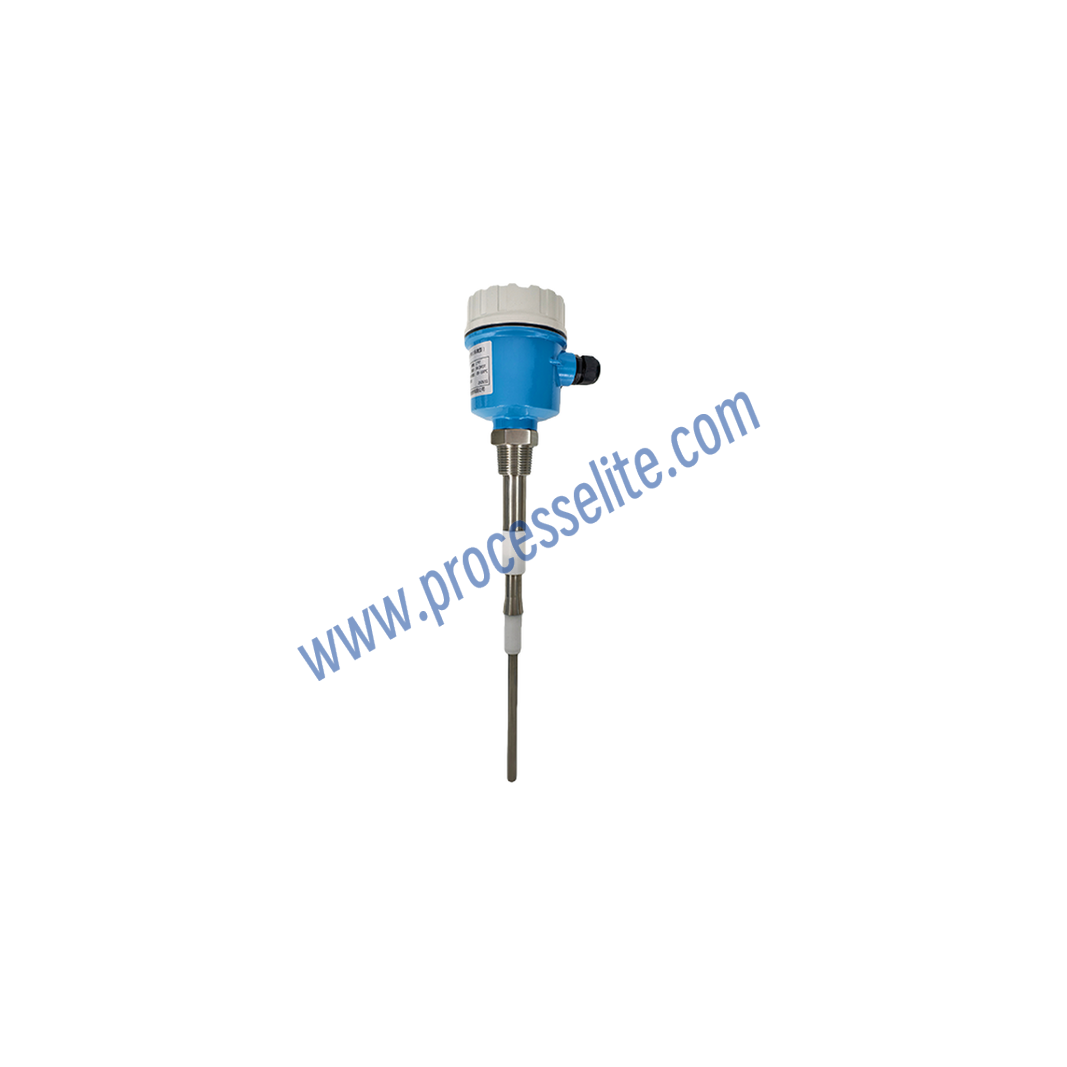

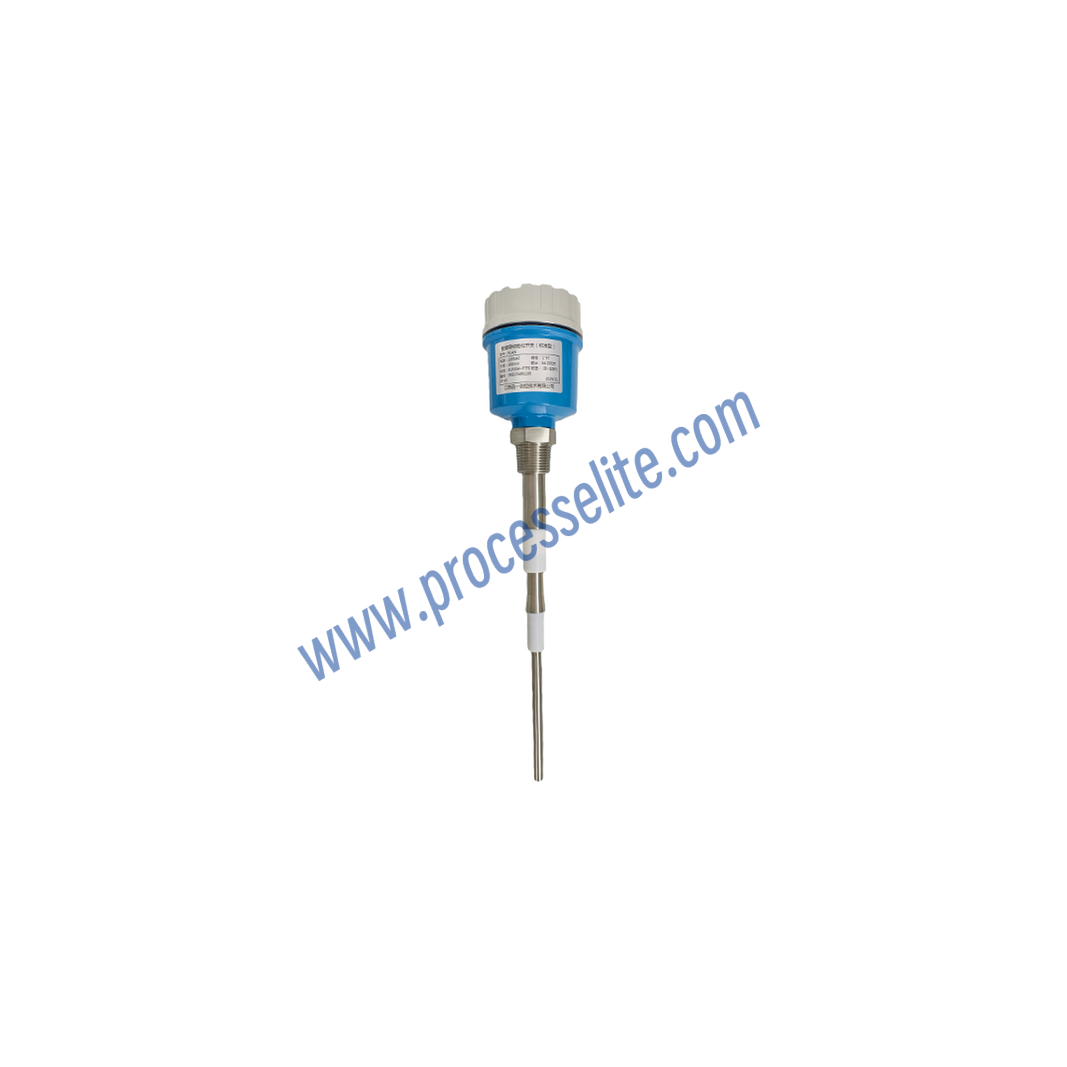

RLAN RF Admittance Level Switch (Standard Type) - Processelite
*Picture for reference only !
RLAN RF Admittance Level Switch (Standard Type) - Processelite
Product name:
RF Admittance Level Switch (Standard Type)
Product series:

RLAN

Product brand:
PE/PE
Product feature:
• Immune to the impact of material adhesion • Simple installation and commissioning • Excellent stability with temperature insensitivity • Adjustable delay output ranging from 0 to 30 seconds • Applicable for detection of liquids, slurries, solids, particles and material interfaces • Switchable high/low level fail-safe alarm function
Favorite
Compare
Measuring principle:
The admittance level switch probe includes measuring, guard and ground electrodes insulated from one another. Material contact increases admittance between the measuring probe and ground electrode for level detection. The guard electrode shares the same signal waveform with the measuring probe in an isolated state, offsetting admittance interference from material caking on the probe. The unit solely monitors admittance across the probe and tank wall to prevent false alarms from material adhesion.
Product positioning:
Standard
Using scenario:
Serves level monitoring and control for liquids, powders and granules within storage silos, water wells, water tanks, chemical drums and acid-base vessels.
