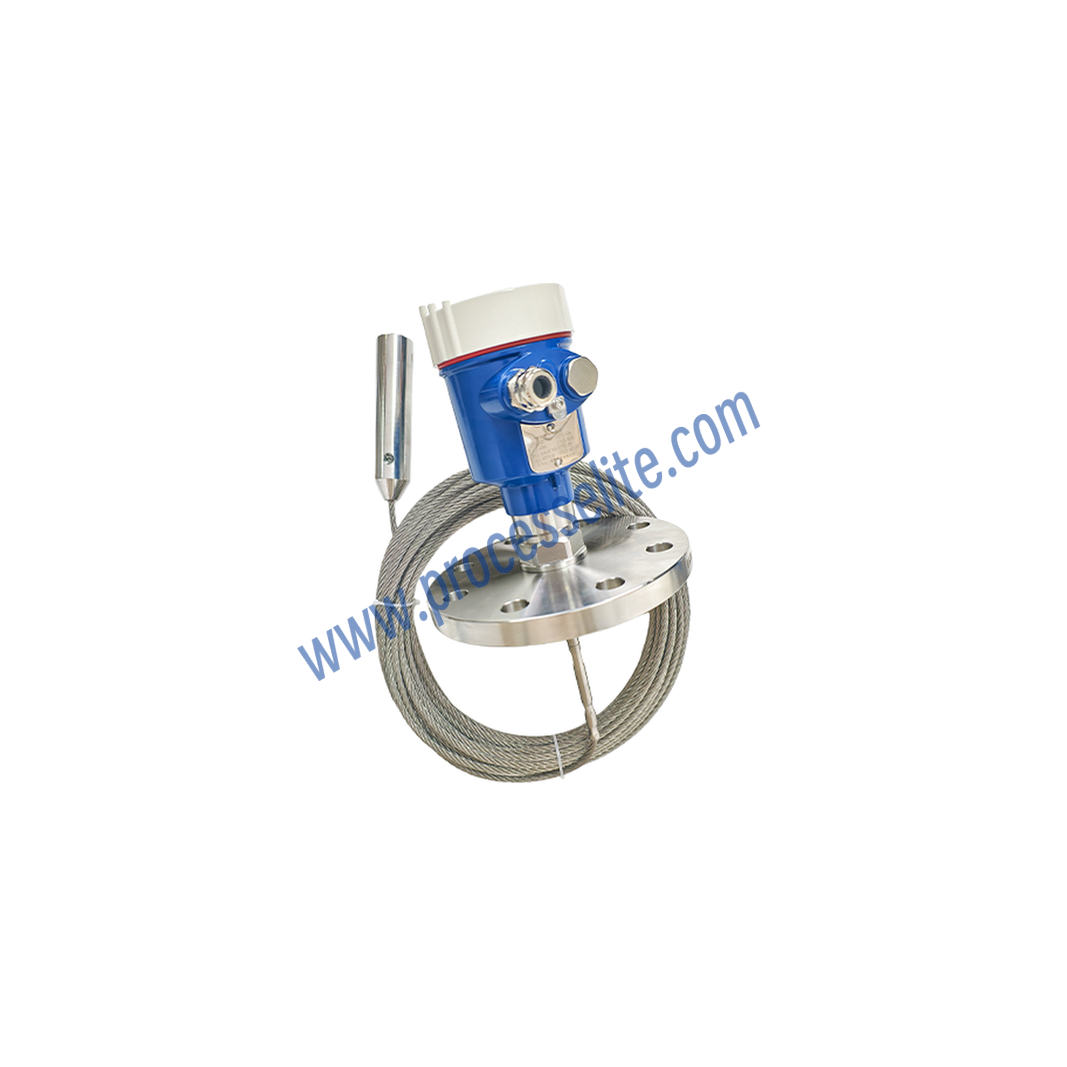

RLRD Guided Wave Radar Level Transmitter - Processelite

*Picture for reference only !

Product name:

Guided Wave Radar Level Transmitter

Product series:

RLRD

Product brand:

PE/PE

Product feature:

Guided wave radar suits high-temperature, high-pressure & low-dielectric media. Measurement is unaffected by noise, thermal/pressure drift, density shift, foam, vapor and dust. Suitable for liquids & solid powders in sealed vessels.

Favorite

Compare

Configure

Measuring principle:

Microwave pulses from guided wave radar travel along steel cable/steel rod probes; abrupt dielectric constant variation of process media triggers signal reflection. The time difference between transmitted and reflected pulses is proportional to the measured distance.

Product positioning:

Standard

Using scenario:

Guided wave radar is designed for measuring liquids, solids and the interface between two immiscible liquids. It works for common media as well as corrosive fluids under high-pressure or extreme temperature conditions. Featuring low transmitting power, this device can be mounted inside metallic and non-metallic vessels without hazards to personnel or the environment.

防爆型式：

非防爆

Ex d

精度：

±3mm

通讯方式：

4~20mA HART

Modbus

过程连接：

螺纹

法兰

防护等级：

IP67

人机界面：

无显示&不可操作

有显示&可操作

All

Instruction

Operation

2D/3D

Certificate

Summary

Guided Wave Radar Level Meter (Standard) RLRD
