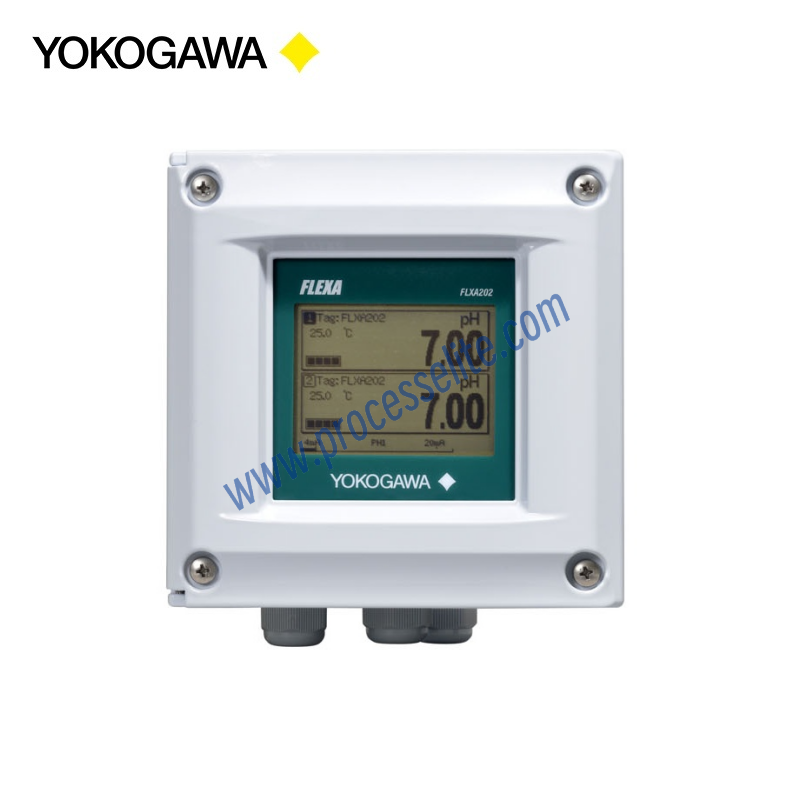

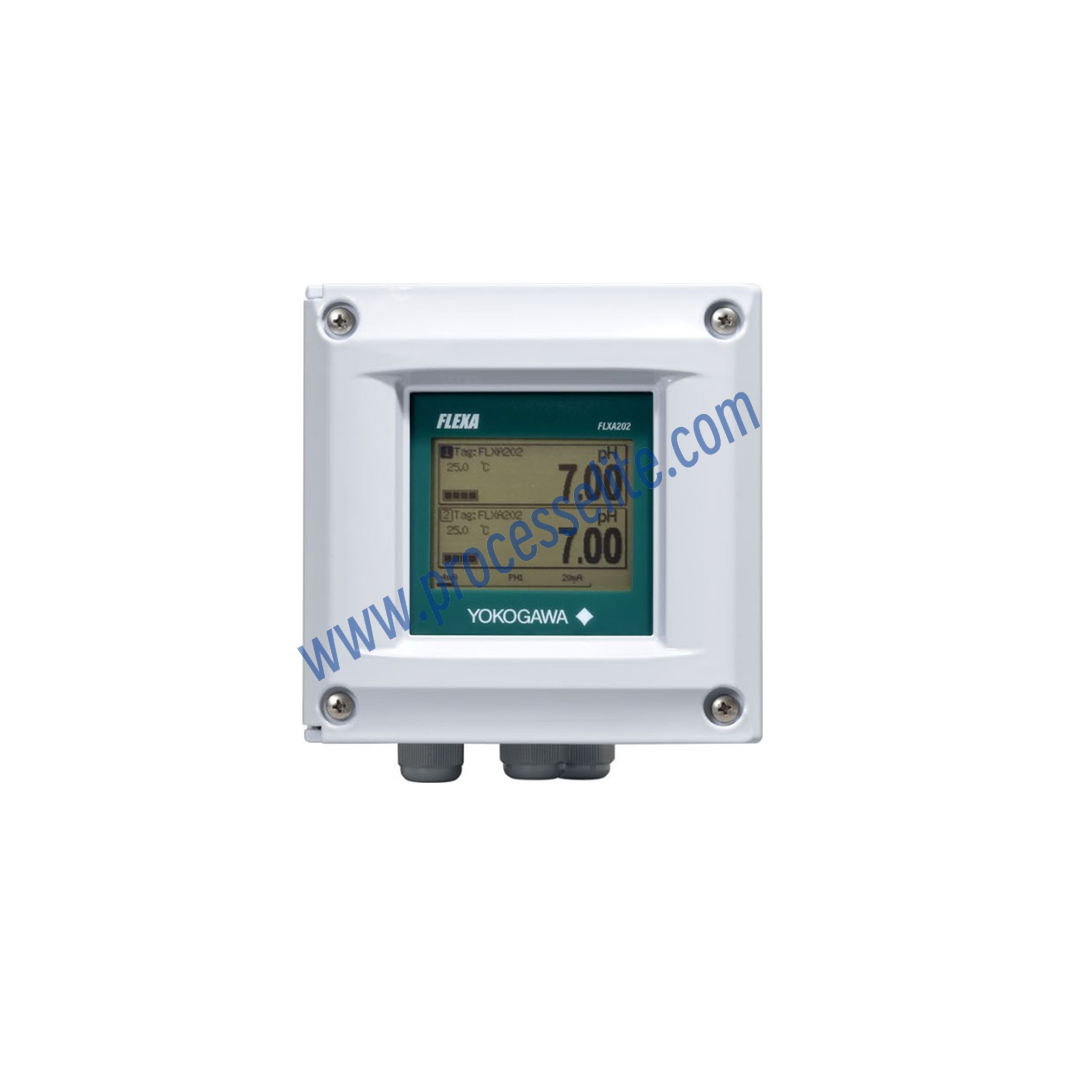

FLXA21

pH/ORP Module: Utilizes potentiometric analysis. pH Measurement: The potential difference between a glass electrode (measurement electrode) and a reference electrode is measured. This potential difference is logarithmically related to the hydrogen ion concentration in the solution (i.e., acidity), and the pH value is calculated accordingly. ORP Measurement: The potential difference between the measurement electrode and the reference electrode is measured, directly reflecting the oxidizing or reducing strength of the solution. Conductivity Module: An alternating voltage is applied to the electrodes in the solution, and the current passing through the solution is measured. According to Ohm's law (resistance = voltage/current), the resistance of the solution is calculated, and then converted to conductivity using the electrode constant. Dissolved Oxygen Module: The sensor membrane isolates the electrode from the solution. Oxygen diffuses through the membrane to the electrode, where a reduction reaction occurs at the cathode, generating a current. The magnitude of this current is proportional to the concentration of dissolved oxygen, and the dissolved oxygen content can be calculated by measuring the current.

Electric power industry, petroleum industry, pharmaceutical industry, food industry, paper manufacturing industry
