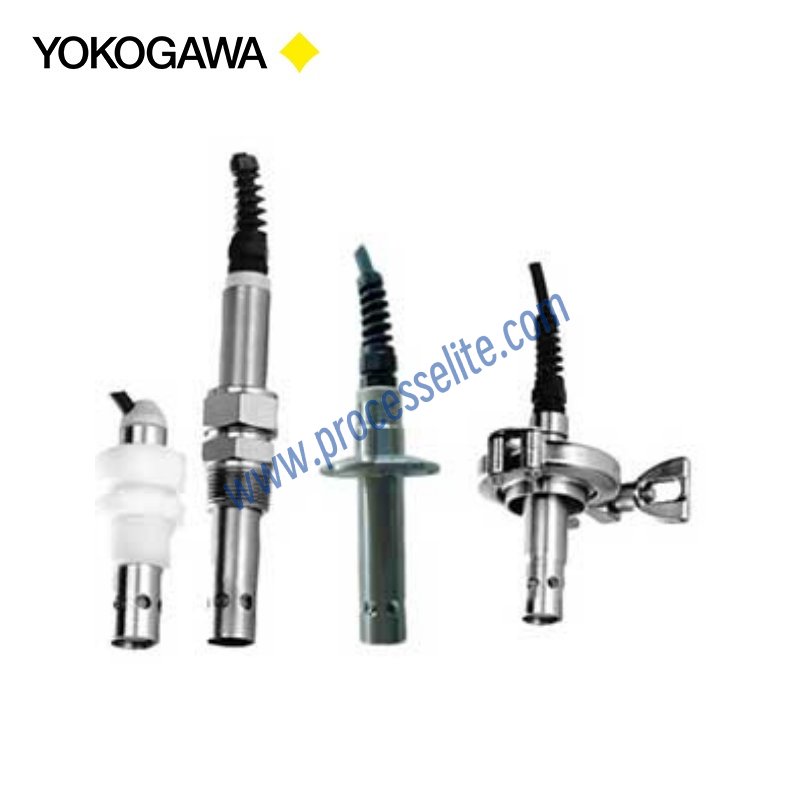

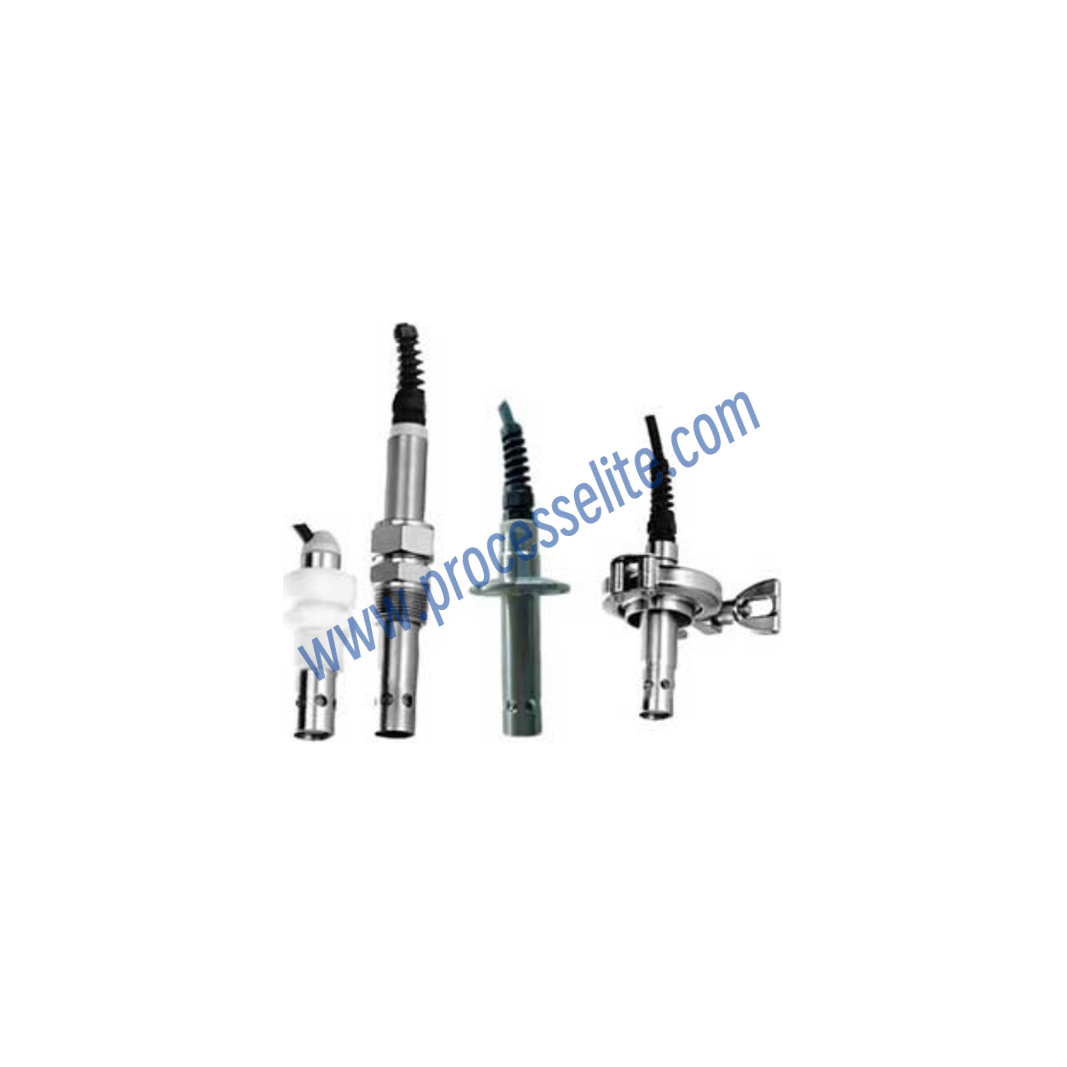

SC4AJ

Product brand:

YOKOGAWA/YOKOGAWA

Product feature:

• Compact and lightweight sensor • Built-in temperature resistor: Pt1000 • Rapid temperature response • Plug and cable form an IP67 waterproof connection • Two selectable electrode constants: 0.02 cm⁻¹ or 0.10 cm⁻¹ • Sensor with 8-pin Variopin connector and ID chip, for SA11-C1 type SENCOM • Certified for hazardous areas • Can be directly inserted into process pipelines • Multiple mounting options • Compatible with PR10 plug-in components • Sensor polished to meet pharmaceutical standards • Standard quality inspection certificate provided with the sensor at the factory • Peek and O-ring materials comply with FDA standards

Favorite

Compare

Configure

Measuring principle:

The SC4AJ adopts a two-electrode contact measurement method, with its core principle based on Ohm's Law: the sensor applies a low-frequency alternating voltage to the two electrodes (to avoid electrode polarization caused by direct current), and the resulting current is measured to calculate the solution resistance. The conductivity is then determined by combining this with the known electrode constant (K = 0.02 cm⁻¹ or 0.1 cm⁻¹).

Product positioning:

Using scenario:

SC4AJ, due to its high accuracy and corrosion resistance, is particularly suitable for stringent conditions involving ultrapure water and low conductivity, such as in the semiconductor industry, pharmaceuticals and biotechnology, the power industry, and the food and agriculture sectors.

传感器材质：

316(L)

温度传感器：

Pt1000

防爆型式：

非防爆

防护等级：

IP65

IP67

All

Instruction

Operation

2D/3D

Certificate

Summary

SC4A general specifications

SC4A instruction manual

SC4A ATEX, IECEx 认证证书

SC4A 产品说明
