FLXA402T

Product brand:

YOKOGAWA/YOKOGAWA

Product feature:

• Self-diagnostic function • Motor rotation monitoring, empty pool detection, sensor status check (zero point, slope, calibration stability) • Output signal: linear or segmented output (4-20mA) • Analog output, digital communication (Modbus RTU or Modbus TCP/IP) • Can connect multiple detectors/sensors: chlorine (reagent-free type), turbidity, pH, conductivity • Multilingual display: English, German, French, Chinese, Korean, Spanish, Portuguese, Japanese

Favorite

Compare

Configure

Measuring principle:

The core principle of the FLXA402T is modular combination: it can connect up to two sensor modules and processes and displays data by receiving signals from sensors such as turbidity, residual chlorine, pH, or conductivity. For example, when connected to a turbidity sensor, it uses right-angle scattered light to detect the scattering of light by suspended particles in water; when connected to a residual chlorine sensor, it measures the free chlorine content in water using a reagent-free electrochemical method.

Product positioning:

Using scenario:

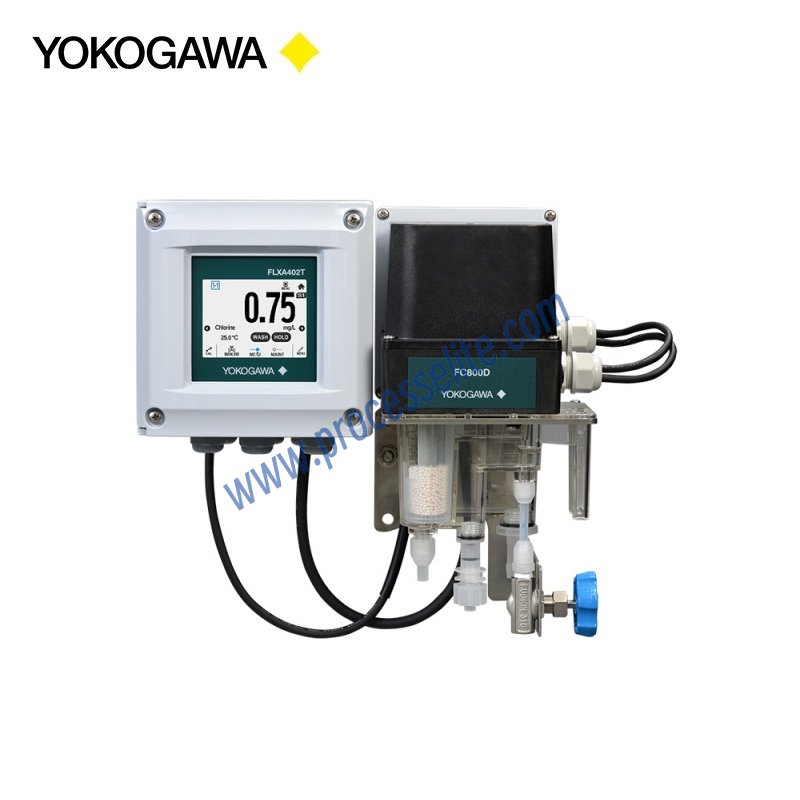

The reagent-free free chlorine analyzer consists of the FC800D reagent-free chlorine sensor unit and the FLXA402T turbidity/chlorine liquid analyzer. It is suitable for the control of free chlorine in water purification, water supply management, and usage processes. In addition to water treatment plants, it is mainly used at measurement points in public facilities such as pumping stations, water supply stations, schools, and public halls within the water supply network.

Measuring parameters:

Disinfectant

Turbidity / suspended solids concentration

Protection class:

IP66

Communication:

4-20mA

Modbus

Power supply:

100~230V AC

All

Instruction

Operation

2D/3D

Certificate

Summary

FLXA402T drawings

FLXA402T operation instructions

FC800D, FLXA402T technical information

FC800D, FLXA402T Product 说明
