RC800D Reagent Type Residual Chlorine Sensor Unit - Processelite
*Picture for reference only !
RC800D Reagent Type Residual Chlorine Sensor Unit - Processelite
Product name:
Reagent Type Residual Chlorine Sensor Unit
Product series:

RC800D

Product brand:
YOKOGAWA/YOKOGAWA
Product feature:
• Cleaning with anti-fouling rotary electrodes and ceramic beads • Measurement cell structure that is easy to clean • Rotating mechanism using belt/sleeve joints, no adjustment required • Easily find optimal operating conditions by monitoring applied voltage and tipping characteristics • Select an appropriate pre-chlorination treatment system based on user applications
Favorite
Compare
Measuring principle:
The core measurement principle of the RC800D is polarography. It generates an electrochemical reaction between the built-in rotating alloy electrode and the chlorine in the water sample, producing a current signal proportional to the chlorine concentration. At the same time, the instrument precisely adds chemical reagents (such as buffers or masking agents) through a reagent pump, chemically separating "residual chlorine (total chlorine)" and "free chlorine" in the water, thereby achieving high-precision, continuous online measurement of specific chlorine forms.
Product positioning:
Using scenario:

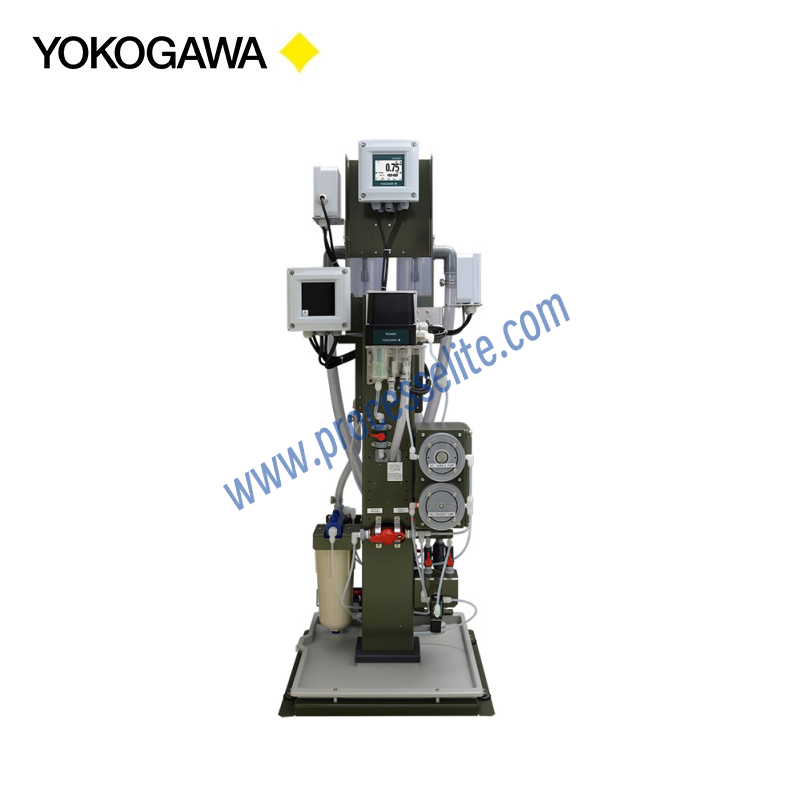

The residual chlorine analyzer consists of an RC800D reagent-type residual chlorine sensor unit and an FLXA402T turbidity/chlorine liquid analyzer. It is suitable for process management and control in water treatment plants or industrial water facilities that treat cooling water or drinking water, as well as for water quality control in large boilers.
