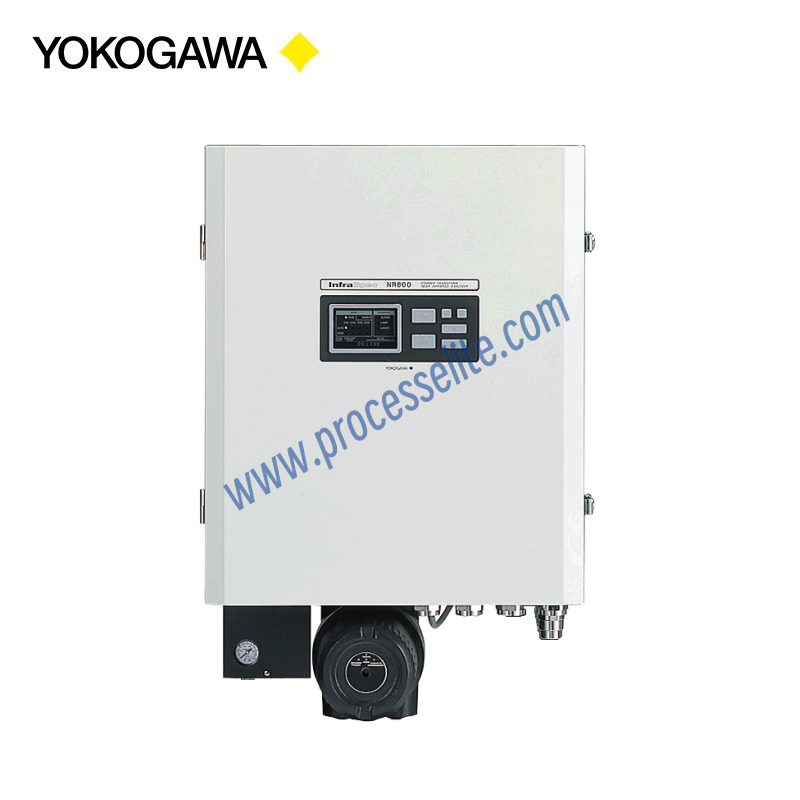

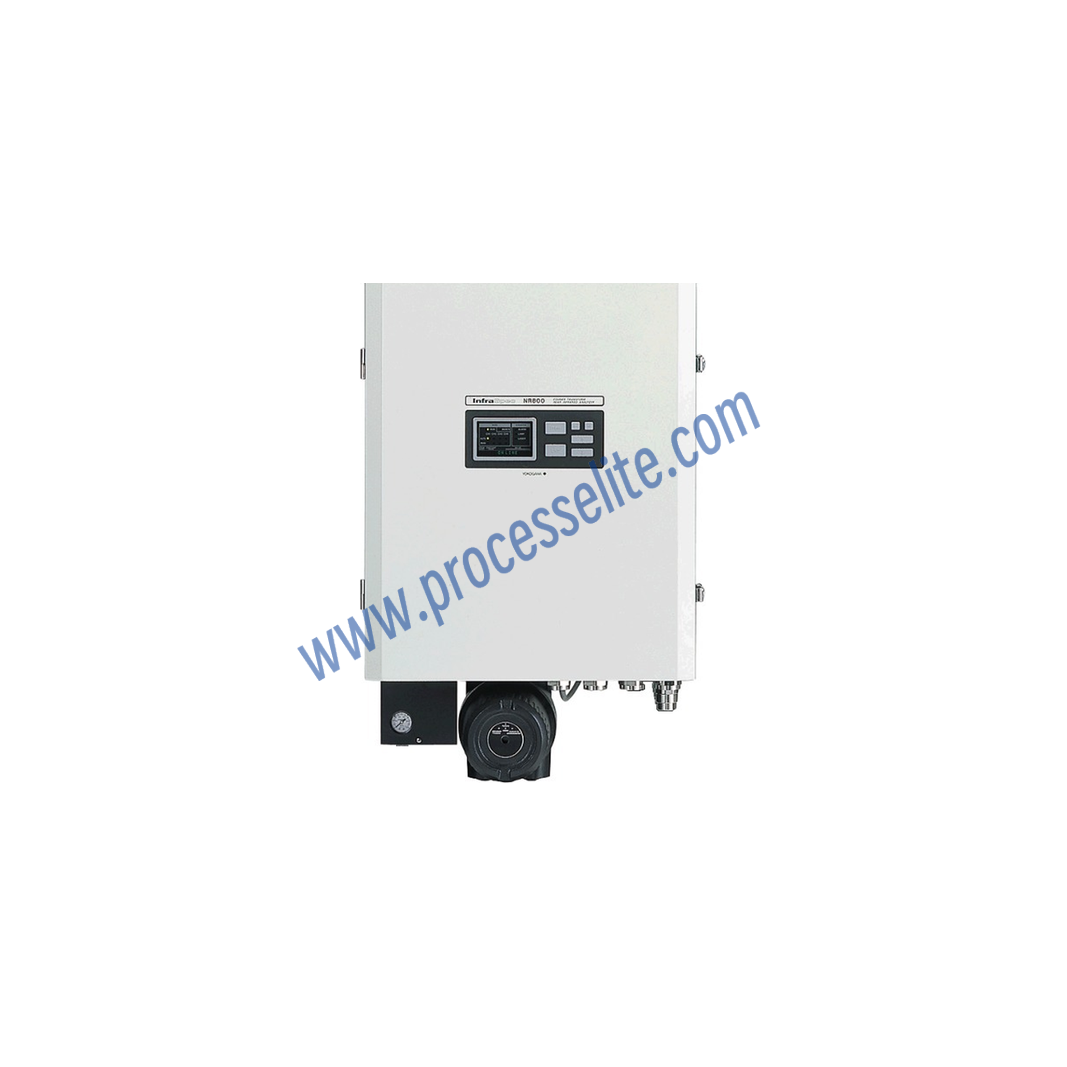

InfraSpec NR800

Product brand:

YOKOGAWA/YOKOGAWA

Product feature:

• Adopts a newly developed Michelson interferometer with anti-vibration mechanisms, ensuring more reliable and stable operation • Analyzer operation is not interrupted by PC failures, nor affected by rapid changes in PC technology • The NR800 has a measurement wavelength range of 900–2500 nm, allowing for more information display and providing more accurate calibration models • The NR800 has a wavelength resolution of 4 cm⁻¹. The ideal fitting frequency band can be used for calibration models and measurements • Laboratory models can be directly applied to systems in process streams and can also be transferred between analyzers • The dual-beam configuration is a standard feature of the NR800, compensating for measurement disturbances caused by changes in environmental conditions and installation attenuation • The NR800 provides up to 4 channels for multiple spectrometers

Favorite

Compare

Configure

Measuring principle:

The measurement principle is based on transmission-type near-infrared spectroscopy using Fourier transform. The core process is as follows: the broadband light emitted by a halogen lamp passes through a Michelson interferometer to produce interference light, which is transmitted to the probe via optical fiber to illuminate the sample. After the sample absorbs light of specific wavelengths, the transmitted light is received by an InGaAs detector. The resulting interferogram signal is mathematically processed through Fourier transform, converting it into an absorption spectrum that reflects the vibrational modes of chemical bonds in the sample. Combined with a chemometric model, this spectrum is then used to calculate the sample's component concentrations or physical properties.

Product positioning:

Using scenario:

The InfraSpec NR800 is primarily applied in online real-time quality control within process industries such as petrochemicals, pharmaceuticals, food, and chemicals. Specific applications include rapid detection of gasoline blending components (octane number, aromatic content) in refineries, monitoring the concentration of raw materials and intermediates during pharmaceutical reactions, analyzing monomer conversion rates and copolymer composition in polymer production, and non-destructive measurement of acid value, iodine value, and moisture content in the food industry.
