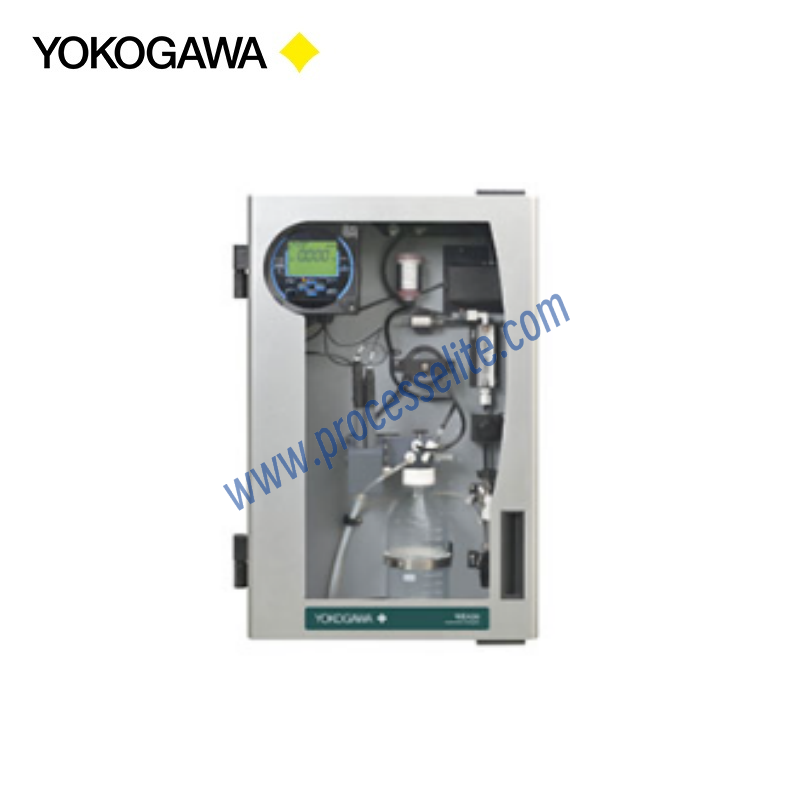

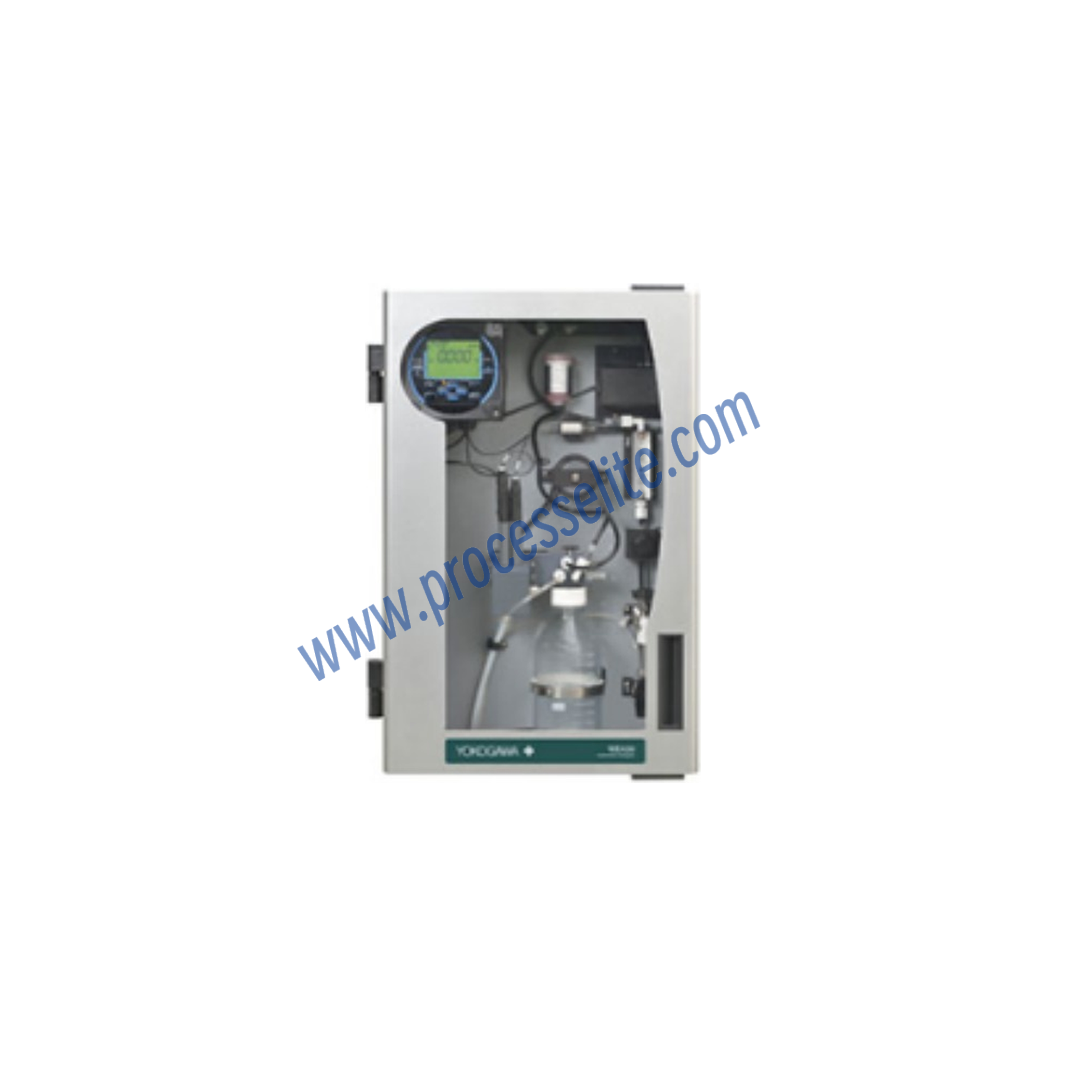

WE430

Product brand:

YOKOGAWA/YOKOGAWA

Product feature:

• Utilizes constant pressure dosing and diaphragm pump technology, resulting in low reagent consumption • Dual-chamber enclosure design, fully isolating the electronic unit from wet components • Equipped with automatic calibration, automatic cleaning, and automatic verification functions • Color graphic touchscreen interface, supporting multi-language switching • Built-in data logger, supporting USB data download • Optional single-channel or dual-channel measurement versions • Fast response speed, capable of instantaneously indicating changes in oxygen scavenger concentration

Favorite

Compare

Configure

Measuring principle:

The measurement principle of the WE430 hydrazine analyzer is based on the wet chemical photometric colorimetric method. Under acidic conditions, hydrazine in the water sample reacts with p-dimethylaminobenzaldehyde reagent to produce a yellow azo compound. The instrument measures the absorbance of this compound at a specific wavelength (approximately 420 nm) and calculates the concentration of hydrazine according to the Lambert-Beer law.

Product positioning:

Using scenario:

The WE430 Hydrazine Analyzer is primarily used in the boiler feed water systems of thermal power plants, nuclear power stations, and the chemical industry. It continuously monitors hydrazine, which is used as an oxygen scavenger, and precisely controls the dosing amount to prevent corrosion of thermal equipment, while ensuring steam quality and system safety.

All

Instruction

Operation

2D/3D

Certificate

Summary

WE430 user's manual.pdf

WE430 general specifications.pdf
