All >> Flow Measurement >> Coriolis Mass Flow and Density Meter Model
*Picture for reference only !
Product name:

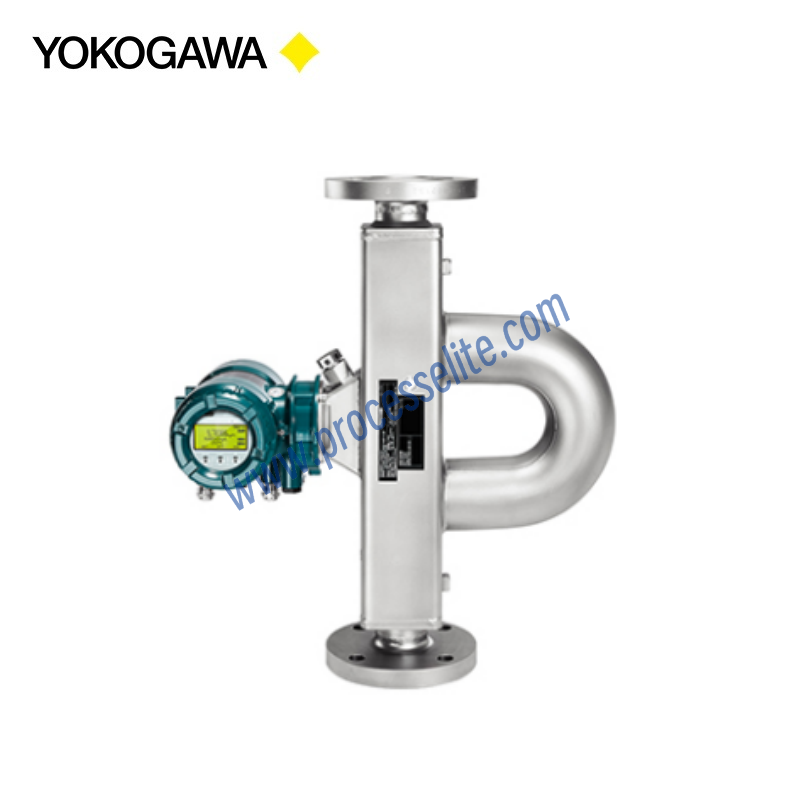

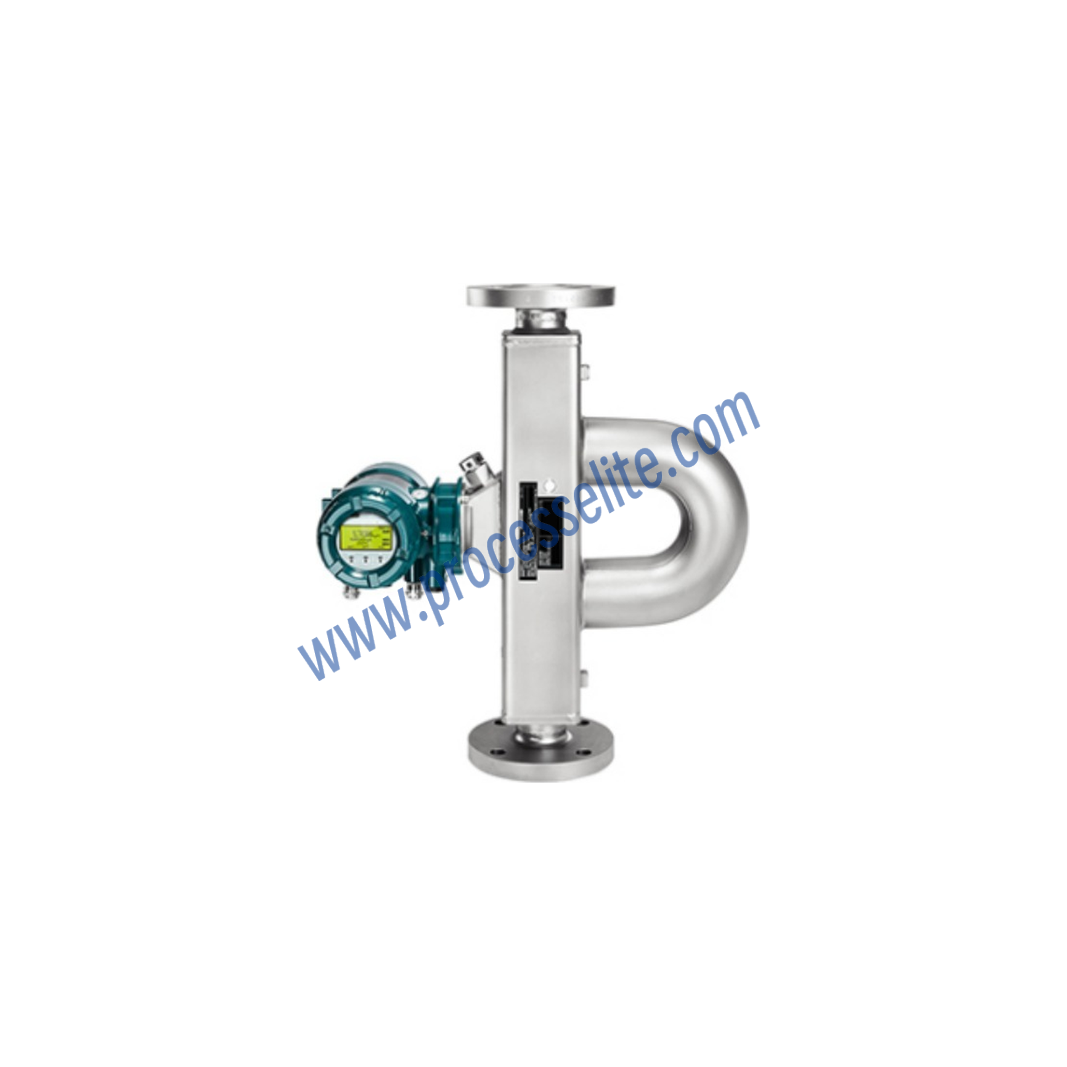

Coriolis Mass Flow and Density Meter Model
Product series:

ROTAMASS Supreme

Product brand:
YOKOGAWA/YOKOGAWA
Product feature:
• Achieve optimal decoupling of the measuring tube from external stress and vibration through validated and robust sensor design. • Operating temperature range from cryogenic fluids at -196°C to extremely high temperatures up to 350°C, equipped with customer-specified or factory-installed sensor insulation and heat tracing systems to meet the requirements of high-temperature, viscous, or molten process fluids. • Thick measuring tube resistant to pressure dependency or wear effects; wetted components made of 316L stainless steel or 304L stainless steel as required, or C-22 nickel alloy. • High-density measurement and online concentration measurement capabilities. • Gas void fraction and net oil calculation functions combined with entrained gas handling capability, enabling multiphase flow meters to perform repeatable mass flow measurements for oil, water, and gas mixed fluids.
Favorite
Compare
Measuring principle:
The ROTAMASS Supreme measures based on the Coriolis effect. The measuring tube within its sensor is excited into high-frequency vibration by a drive coil. When fluid flows through, the Coriolis force causes a phase difference (twist) between the inlet and outlet sections that is proportional to the mass flow, allowing the mass flow to be calculated directly by detecting this signal. At the same time, changes in the fluid density alter the natural frequency of the measuring tube's vibration, enabling the simultaneous calculation of fluid density, thus achieving "dual measurement in one instrument."
Product positioning:
Using scenario:
ROTAMASS Supreme is primarily aimed at the stringent and critical processes in industries such as petrochemical, chemical, oil and gas, and food and pharmaceuticals. Typical applications include metering of raw materials/products under high-temperature and high-pressure or ultra-low-temperature conditions, batch and filling control, fuel distribution for burners, online monitoring of concentration/density for gas-containing liquids or slurry media, as well as high-precision mass balancing and net oil calculation for trade settlement purposes.
