8782

Product brand:

Emerson/Emerson

Product feature:

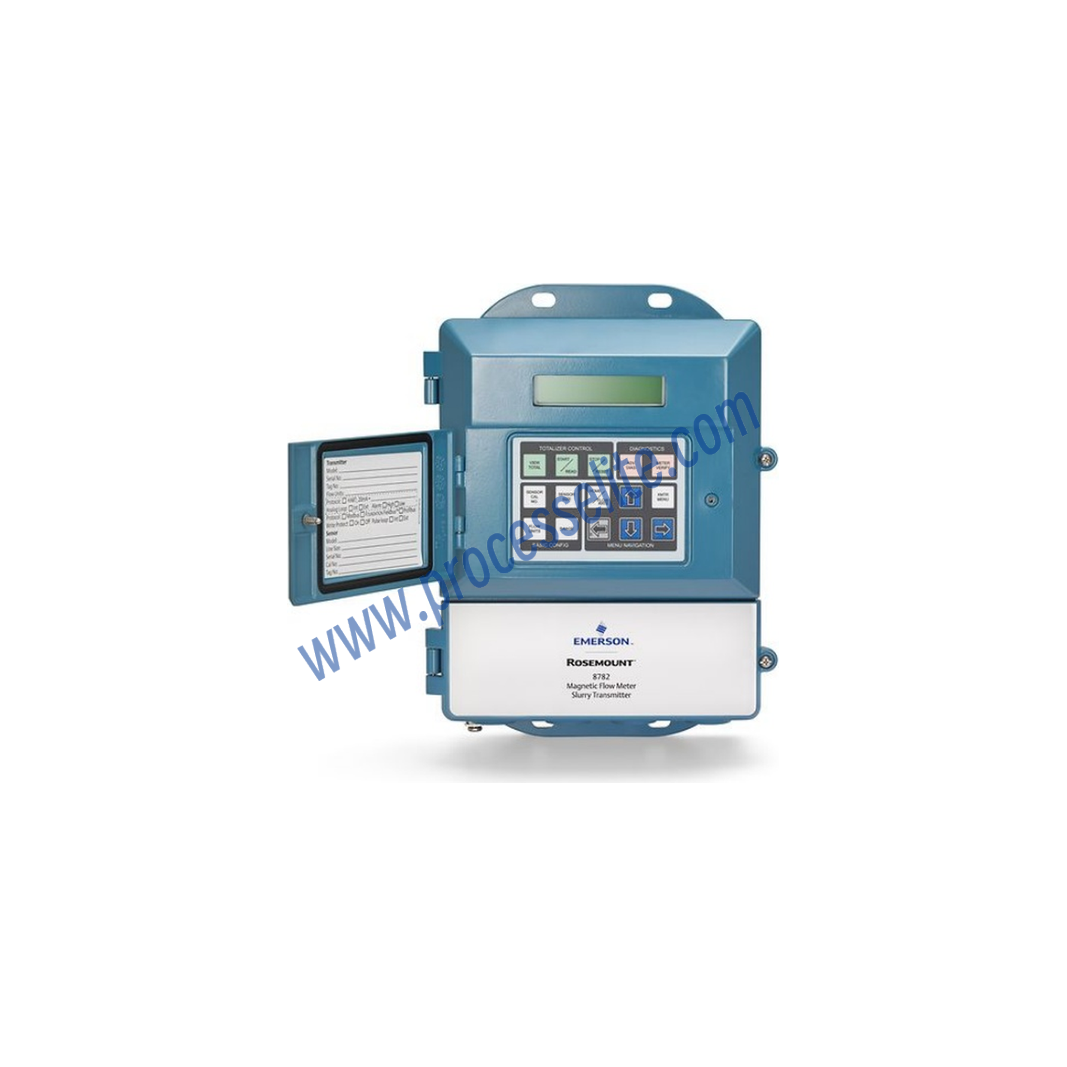

•Optimize customizable signal processing settings in noisy applications with high process noise diagnostic and selectable coil drive frequency options Selectable levels of advanced signal processing allows for the elimination of signal spikes and noise while maintaining responsiveness Increase uptime with Smart Meter Verification which monitors meter health and performance without stopping the process signal Maximize reliability and protection against moisture with a dual-compartment transmitter enclosure Intuitive 15 button Local Operator Interface with dedicated quick keys for ease of use Gain the top benefits of AC magnetic meter systems combined with the stability and performance of pulsed DC technology

Favorite

Compare

Configure

Measuring principle:

The Emerson 8782 slurry type electromagnetic flowmeter transmitter has the same fundamental measurement principle as all electromagnetic flowmeters, all following Faraday's law of electromagnetic induction. When the conductive slurry flows through the magnetic field inside the matching MS sensor, it will cut the magnetic field lines and generate an induced electromotive force proportional to the flow rate. This product adopts advanced signal processing technology, which can separate the "process noise" caused by the impact of solid particles in the slurry on the electrodes in real time and adaptively, thereby stably obtaining the true flow signal.。

Product positioning:

Using scenario:

The 8782 Slurry Transmitter is ideal for high noise applications where the highest levels of performance are required. Incorporating our latest in advanced signal processing, the 8782 is able to stabilize an otherwise noisy process flow signal without having to compromise on responsiveness. Advanced signal processing and real-time diagnostics deliver measurement confidence and the ability to automatically control the loop leading to: improved product quality, a reduction in raw material cost, minimizing waste and re-work required, and more peace of mind.

精度(标况)：

±0.15% o.r.

±0.25% o.r.

通讯方式：

4-20mA

4-20mA HART

供电电源：

24VDC

220VAC

防爆型式：

非防爆

Ex i

防护等级：

IP66

IP69

外壳材质：

铝/铸铝

All

Instruction

Operation

2D/3D

Certificate

Summary

8782 快速安装指南.pdf

浆液电磁流量计产品数据表.pdf
