8C5B

The measuring system operates on the Coriolis measuring principle. The Coriolis force is the force acting on an object moving in a straight line within a rotating‑motion system. Fc = 2 · ∆m (ν · ω) Fc = Coriolis force ∆m = mass of the moving object ω =angular velocity ν = radial velocity of the object in the rotating or oscillating system The magnitude of the Coriolis force depends on the mass \(\Delta m\) of the moving object and its radial velocity v, i.e. the mass flow rate. The sensor uses oscillating measuring tubes instead of the constant angular velocity \(\omega\) of a rotating system.Fluid flows through the sensor. Two parallel measuring tubes inside the sensor oscillate in antiphase, similar to a tuning fork. Coriolis forces are generated in the measuring tubes and produce a phase shift in their oscillation: • At zero flow (fluid at rest), both measuring tubes oscillate in‑phase with no phase difference. • Mass flow causes the measuring tubes to oscillate faster at the inlet and slower at the outlet, generating a phase shift.The higher the mass flow rate, the larger the phase shift. Electromagnetic phase sensors record the oscillation phase at the inlet and outlet of the measuring tubes. Antiphase oscillation of the two measuring tubes ensures system balance. The measuring principle is completely independent of temperature, pressure, viscosity, electrical conductivity and fluid properties.

Low‑flow measurement Compact design

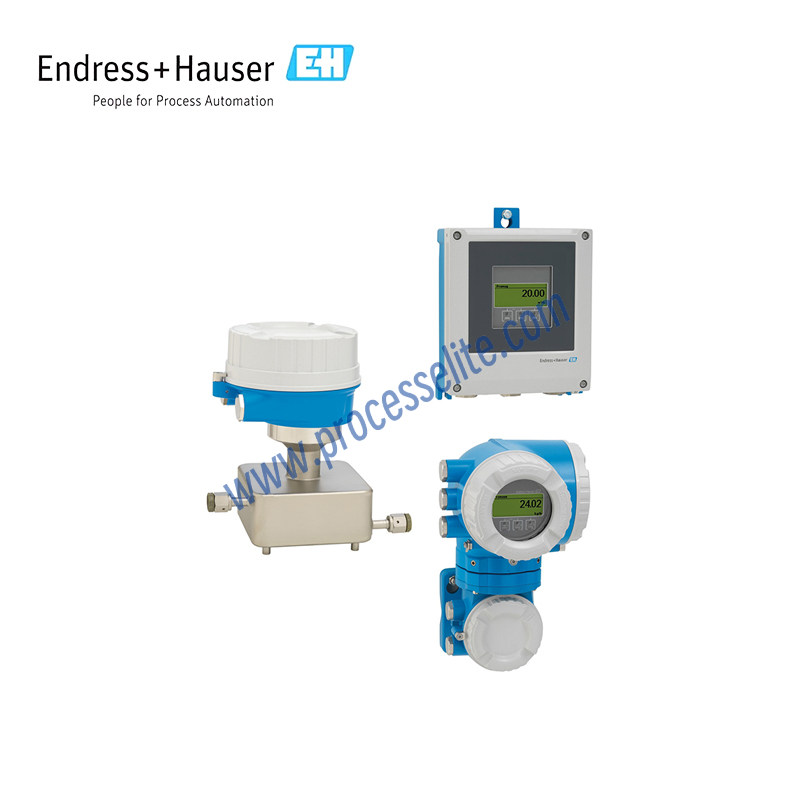

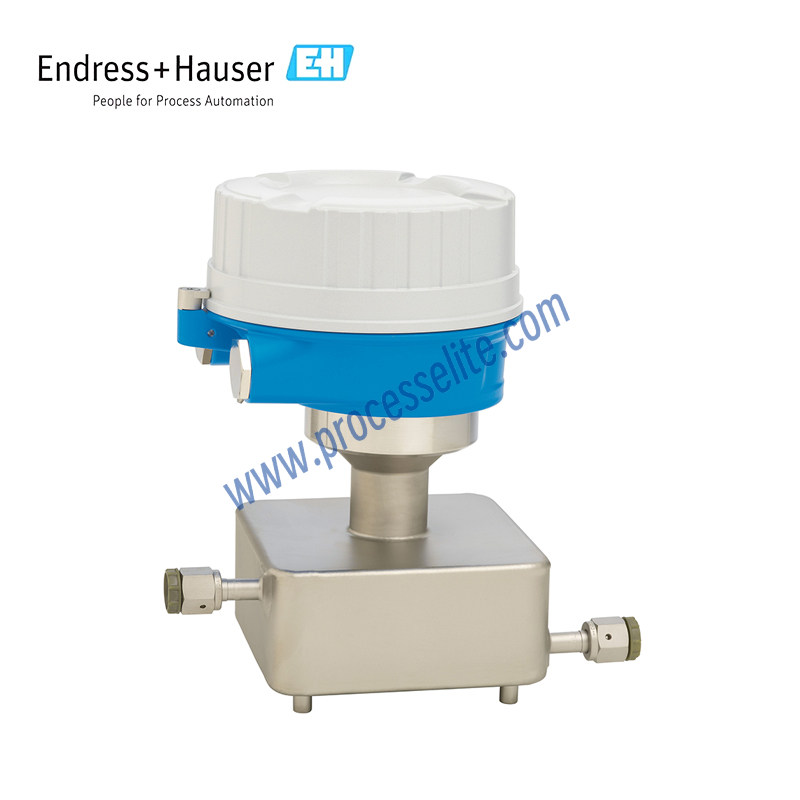

Cubemass C is ideal for very‑low‑flow measurement in skid‑mounted systems, test benches and industrial robot applications. Measuring accuracy remains unaffected even under high‑pressure conditions and fluctuating flow rates. The Cubemass C 500 features an innovative remote transmitter, delivering maximum installation flexibility and operational safety even under demanding process conditions. Heartbeat Technology ensures reliable measurement and compliance verification. • Measuring principle is independent of fluid physical properties (e.g. viscosity and density) • High‑precision measurement for liquids and gases at very low flow rates
