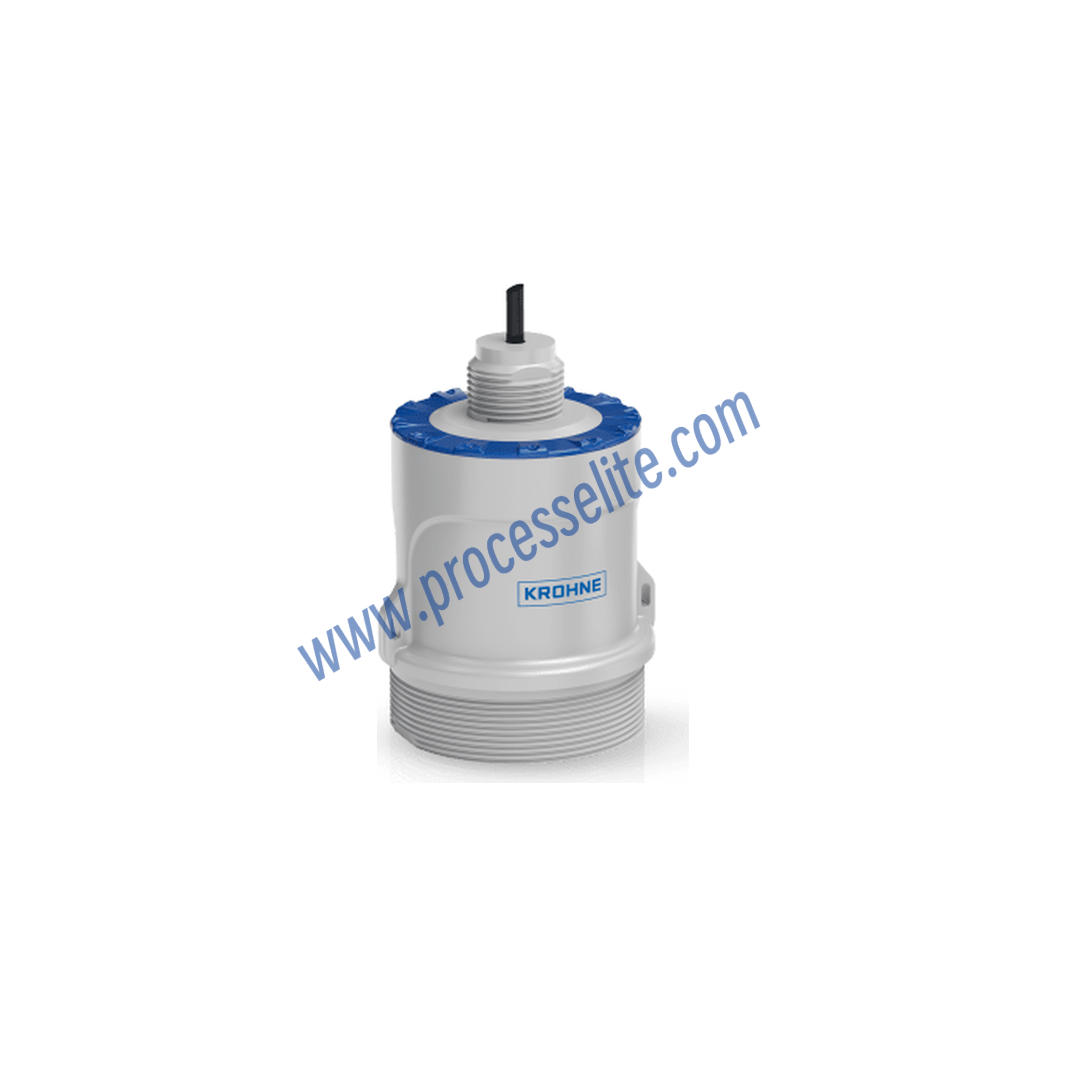

Radar Level Transmitter

Krohne/Krohne

• 2-wire 80 GHz FMCW radar level transmitter, hygienic design (non-contact continuous level measurement) • For hygienic applications with liquids in food, beverage, pharmaceutical and cosmetic industries • Hygienic process connections: G 1, G 1½, 1"/2" Tri-Clamp, DIN 11851 DN50/DN80, SMS 1145, VARIVENT N, NEUMO Bio Control • Hygienic antennas: PTFE Lens DN40 (standard), PEEK Lens DN25/DN40 (high temperature) • Hygienic sealing: EPDM (FDA), FKM (FDA), FFKM Kalrez (FDA, high temperature) • Measuring range 0-10 m, process temperature 0...+130°C (CIP/SIP) / 0...+150°C (high temperature hygienic) • IP66/IP68/IP69K ingress protection (sanitary spray-down) • 4-20 mA HART 7 output, Bluetooth + OPTICHECK Level Mobile app for parameterisation • ±5 mm accuracy, TBM (Tank Bottom Management) for empty tank measurement • Hygienic certifications: 3-A Sanitary Standards, EHEDG, FDA, EN 1935/2004 • Hazardous area approvals (optional): ATEX II 1G Ex ia IIC T6 Ga, IECEx, NEPSI • 3-year warranty, maintenance-free concept
