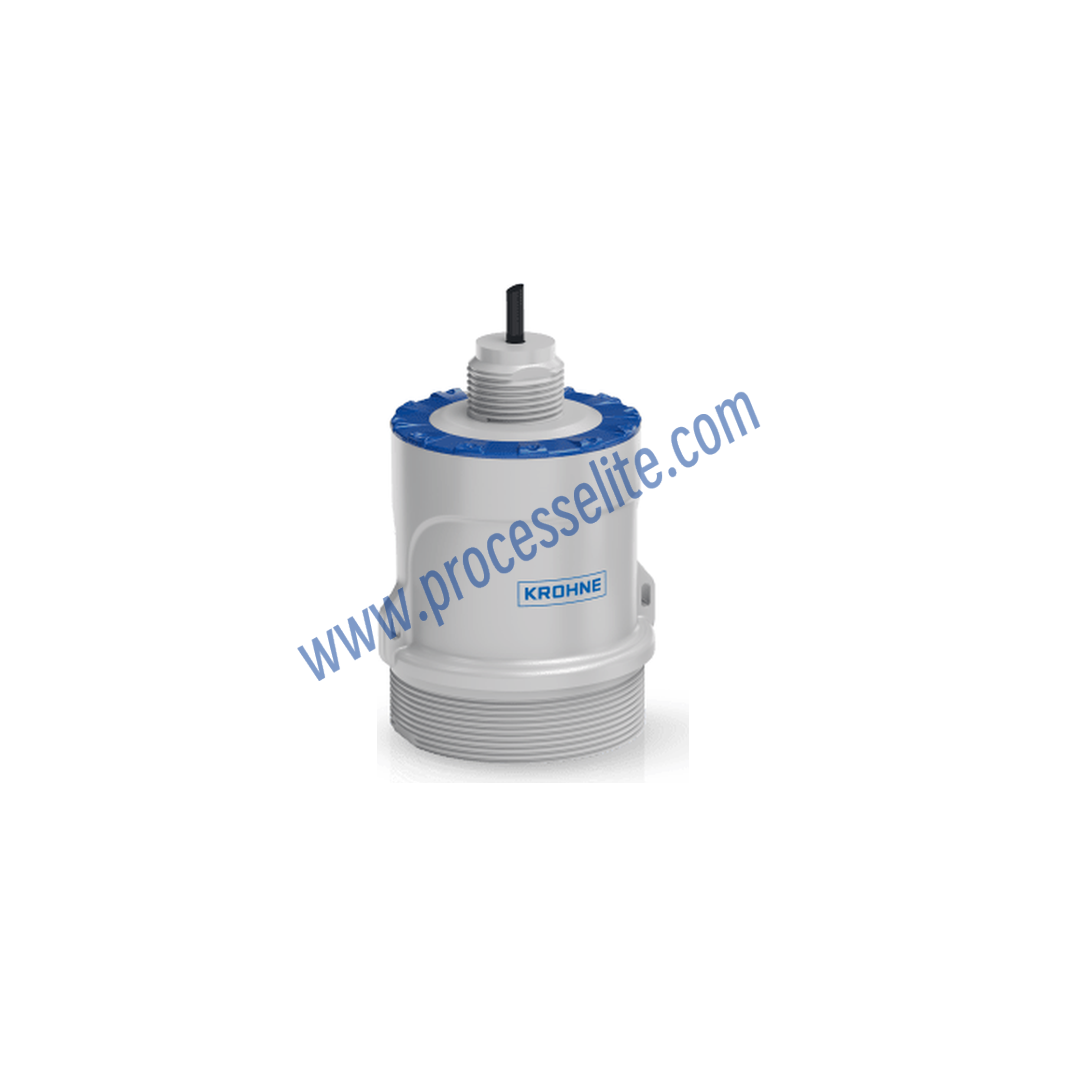

OPTIWAVE 1560

Product brand:

Krohne/Krohne

Product feature:

• 2-wire 80 GHz FMCW radar level transmitter for high temperature / cryogenic applications (-196 to +400°C) • For steam, LNG, hot oils, highly corrosive media • Measuring range 0-30 m, process pressure -1 to +40 bar • PEEK/Ceramic Lens DN40/DN70/DN100 high temperature antenna • Sealing: Kalrez 4079 (standard high temp) / Kalrez 6375 (highly corrosive) / Graphite (+400°C) • Cooling options: air cooling shroud / water cooling jacket • 4-20 mA HART 7 output, Bluetooth + OPTICHECK Level Mobile app • IP66/IP68 ingress protection, approvals: ATEX II 1G Ex ia IIC T6 Ga, IECEx, NEPSI, FM, cCS Aus • SIL 2 capable, WHG overfill protection • KROHNE standard 3-year warranty

Favorite

Compare

Configure

Measuring principle:

The OPTIWAVE 1560 is a 2-wire 80 GHz radar (FMCW) level transmitter for high-temperature and cryogenic applications. Process temperature range -196 to +400°C. The device uses a flush-mounted PEEK/Ceramic Lens antenna and measures 0-30 m. Suitable for steam, LNG, cryogenic liquefied gases, hot oils, and highly corrosive media. Air or water cooling jackets available, with Kalrez 4079/6375 or graphite sealing for ultra high temperatures and strong corrosion resistance.

Product positioning:

High temperature / cryogenic level measurement

Using scenario:

Typical extreme conditions applications for the OPTIWAVE 1560: • Steam boilers / superheater level (high temperature +250°C and above) • LNG / LPG storage tanks (-196°C cryogenic level) • Coke oven / coal chemical reactors • Hot oil tanks (-40 to +250°C) • Highly corrosive media tanks (acids, alkalis, strong solvents) • Refinery atmospheric / vacuum distillation columns • Asphalt storage tanks (high temperature +200°C) • Chemical reactors (rapid temperature changes)
