OPTIWAVE-M 7500

Product brand:

Krohne/Krohne

Product feature:

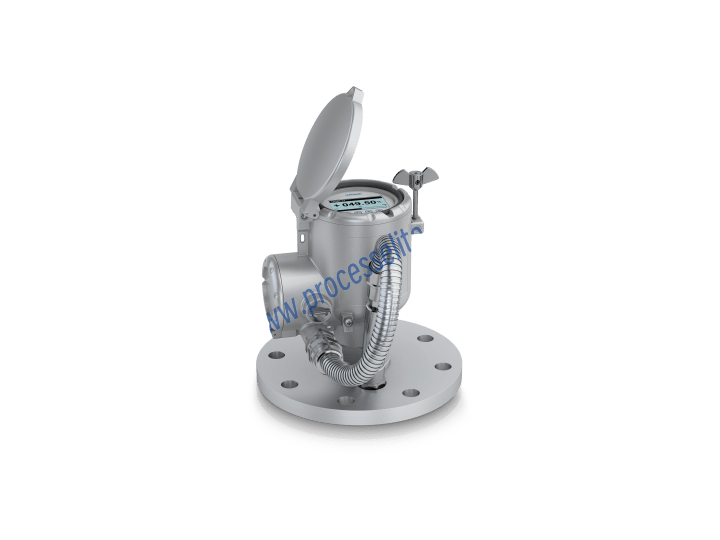

Radar level transmitter for liquids and solids in the marine industry; Continuous, non-contact cargo level measurement; 80 GHz radar, Lens antenna (flush-mounted); Very small beam angle for narrow tanks of various heights and shapes; Redundant ullage indication with local display on deck; OPTIWAVE-M 7500 with DN40 / 1½" PEEK Lens antenna

Favorite

Compare

Configure

Measuring principle:

Radar level measurement

Product positioning:

Using scenario:

The OPTIWAVE-M 7500 is a highly accurate and reliable 2-wire 80 GHz radar (FMCW) level transmitter for measuring ullage. Equipped with a heavy-duty stainless steel housing, this marine level radar is designed to withstand the roughest conditions on deck. Due to its flush-mounted PEEK Lens antenna with a very small beam angle, this FMCW radar is the optimal choice for continuous, non-contact level measurement involving narrow small or high tanks with internal obstructions. Insensitive to deposits or corrosive environments, this marine level transmitter is equally suited for oil or other liquids, slurries and pastes as well as solids.
