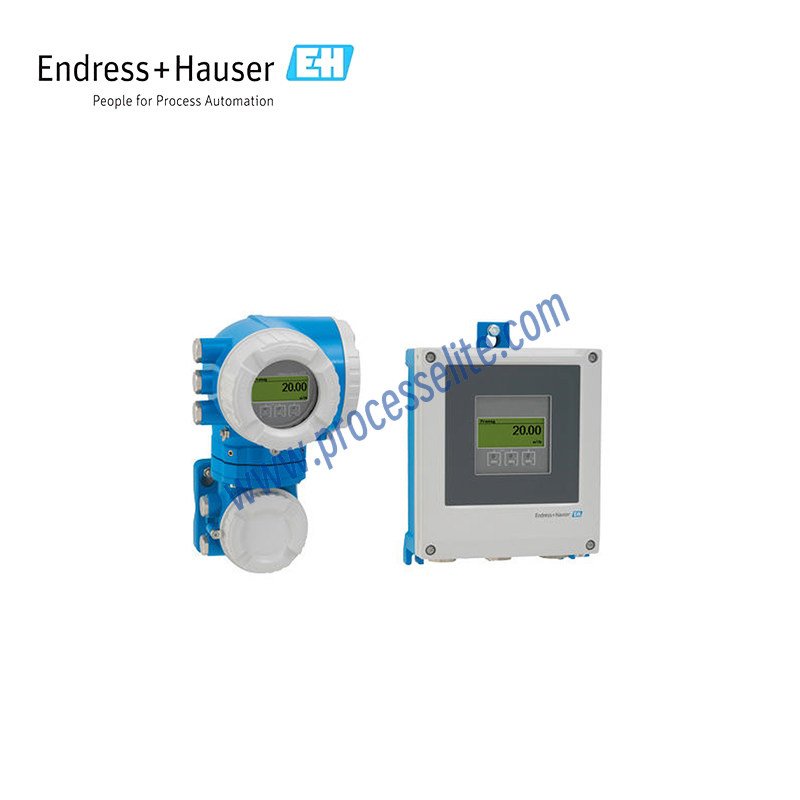

*Picture for reference only !

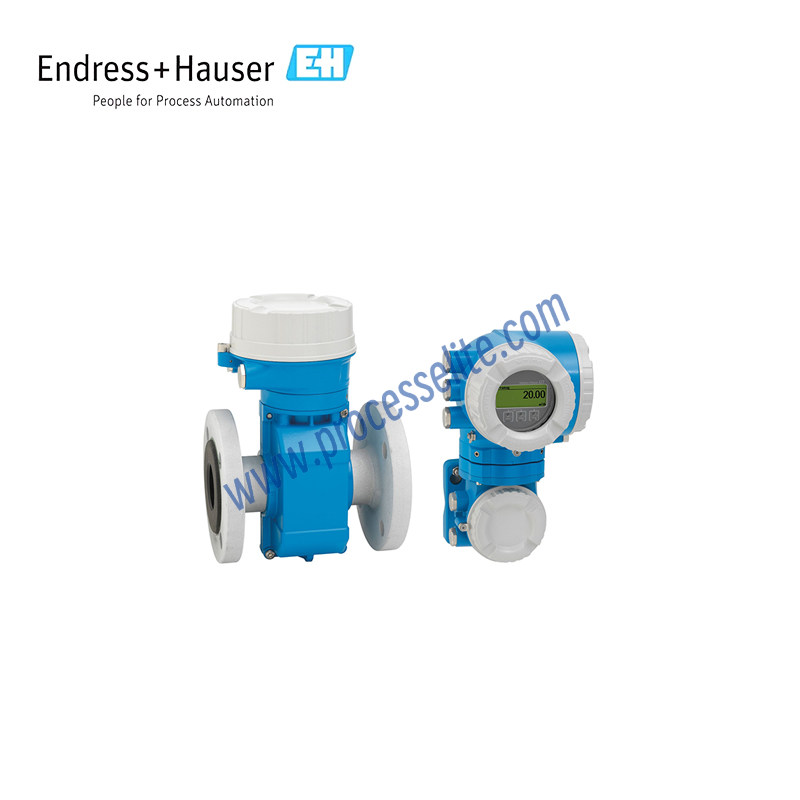

*Picture for reference only !

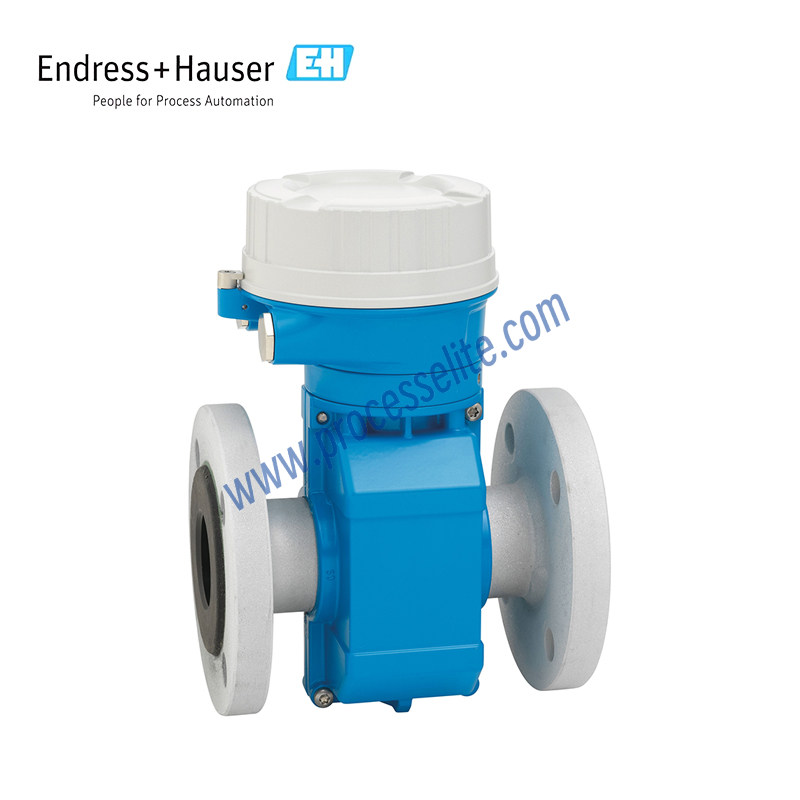

*Picture for reference only !
Product name:
Electromagnetic Flowmeter
Product series:

5W5B

Product brand:
E+H/Endress+Hauser
Product feature:
• International drinking‑water approvals • IP68 (Type 6P, housing) protection rating • Custody‑transfer measurement compliant with MI‑001 / OIML R49 • Remote version with up to 4 input/output channels • Backlit display, touch‑key operation and WLAN access • Sensor and transmitter connected by standard cables • High‑accuracy and reliable measurement, no upstream/downstream straight pipe required, no pressure loss • Flexible installation: sensor with fixed or loose flange process connections • EN ISO 12944 corrosion‑protection for direct buried installation or long‑term underwater service • Enhanced availability: sensor complies with industry‑specific requirements • Comprehensive process and diagnostic information: multiple user‑configurable I/O signal combinations and Ethernet communication supported • Reduced complexity and variability: user‑definable input/output functions • On‑board verification: integrated Heartbeat Technology
Favorite
Compare
Measuring principle:
According to Faraday’s Law of Electromagnetic Induction, an induced voltage is generated when a conductor moves in a magnetic field. In the electromagnetic measuring principle, the flowing medium acts as the moving conductor. The induced voltage (Uₑ) is proportional to the medium flow velocity (v) and transmitted to the amplifier via two measuring electrodes. The volumetric flow rate (Q) is calculated based on the pipe cross‑sectional area (A). The DC magnetic field is generated by switched direct current with alternating polarity. Calculation formulas • Induced voltage: Uₑ = B · L · v • Volumetric flow rate: Q = A · v
Product positioning:
Water and Wastewater Applications
Using scenario:
Promag W 500 is dedicated to the water and wastewater industry, a specialist flowmeter for hazardous areas and harsh‑condition applications. Its innovative remote‑transmitter design delivers maximum installation flexibility and highest operational safety under demanding process conditions. Heartbeat Technology ensures reliable measurement and compliant verification. • Bidirectional measuring principle virtually independent of pressure, density, temperature and viscosity • Specialist for industrial and munici
