All >> Flow Measurement >> Electromagnetic Flowmeter
*Picture for reference only !
Product name:

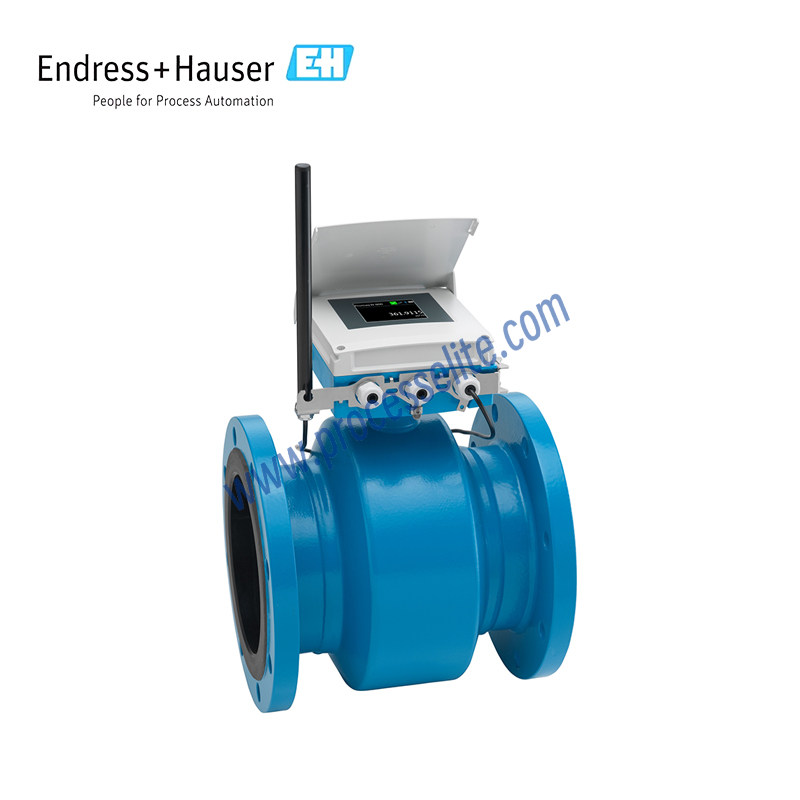

Electromagnetic Flowmeter
Product series:

5W8C

Product brand:
E+H/Endress+Hauser
Product feature:
• Approved for international drinking‑water requirements • IP68, Type 6P protection rating • Custody‑transfer measurement in accordance with MI‑001 / OIML R49 • Robust polycarbonate transmitter housing • Battery‑powered, up to 15‑year service life • Flexible adjustable measuring interval on demand • Battery‑operated electromagnetic flowmeter for safe system integration and signal transmission • Corrosion‑protection enabled, suitable for direct buried installation or long‑term underwater measurement • Flexible engineering design: sensor with fixed or loose flange connections • Enhanced plant availability: sensor complies with industry‑specific requirements • Secure data storage and transmission: encrypted communication via global mobile network • Convenient instrument commissioning and operation: access via Bluetooth with the SmartBlue App • Built‑in self‑verification: Heartbeat Technology
Favorite
Compare
Measuring principle:
According to Faraday’s Law of Electromagnetic Induction, an induced voltage is generated when a conductor moves in a magnetic field. In the electromagnetic measuring principle, the flowing medium acts as the moving conductor. The induced voltage (Uₑ) is proportional to the medium flow velocity (v) and transmitted to the amplifier via two measuring electrodes. The volumetric flow rate (Q) is calculated based on the pipe cross‑sectional area (A). The DC magnetic field is generated by switched direct current with alternating polarity. Calculation formulas • Induced voltage: Uₑ = B · L · v • Volumetric flow rate: Q = A · v
Product positioning:
Water and Wastewater Applications
Using scenario:
Promag W 800 is the ideal choice for off‑grid applications in the water industry, supporting both direct‑buried installation and underwater measurement. Promag 800 (Basic version) comes with all essential functions, while Promag 800 (Premium version) offers enhanced functions and improved performance. The battery‑powered transmitter enables global transmission of measured data without mains power supply. Heartbeat Technology ensures measurement reliability and verification compliance. • Bidirectional flow measurement, fully independent of pressure, density, temperature and viscosity • Especially suited for industrial wastewater and municipal sewage measurement
