All >> Flow Measurement >> Electromagnetic Flowmeter

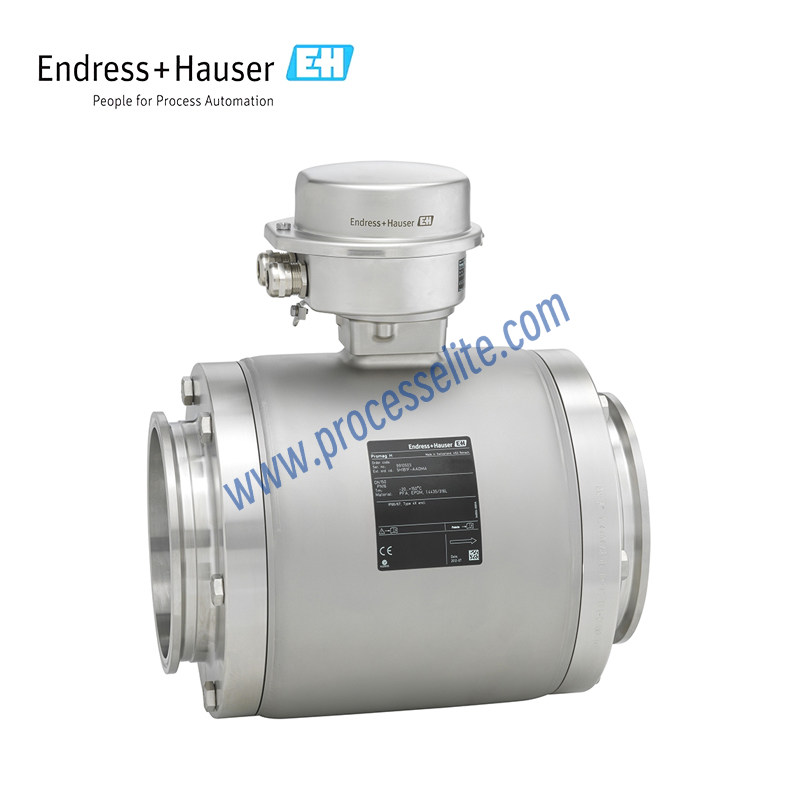

*Picture for reference only !

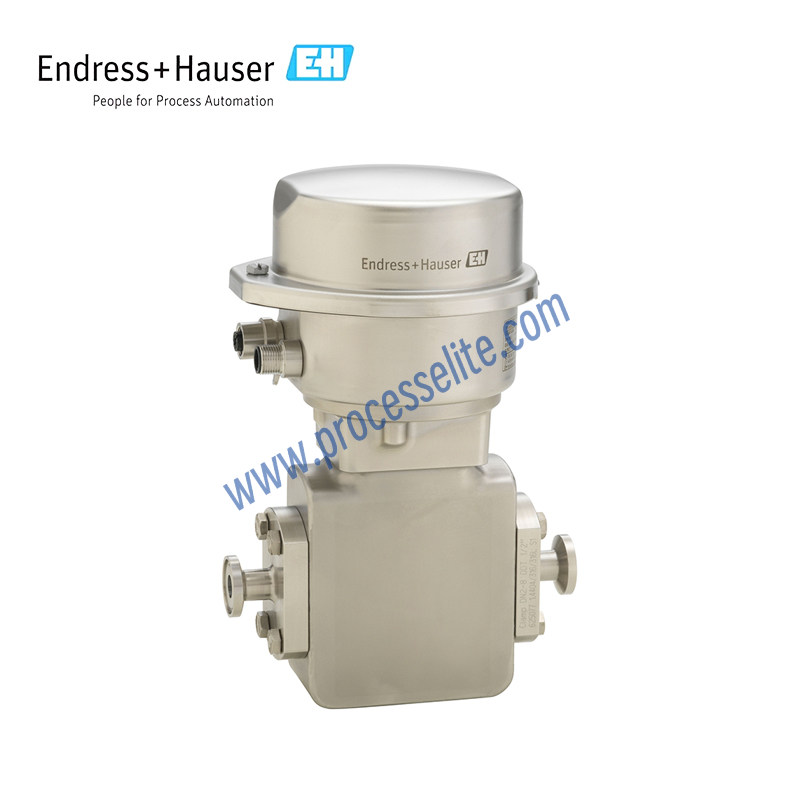

*Picture for reference only !
Product name:
Electromagnetic Flowmeter
Product series:

5H1B

Product brand:
E+H/Endress+Hauser
Product feature:
• Integrated temperature measurement • Stainless‑steel sensor housing (3‑A, EHEDG) • Wetted parts resistant to CIP and SIP cleaning • Robust ultra‑compact transmitter housing • High protection class: IP69 • With local display • Multivariable measurement of flow, temperature and conductivity • Flexible installation ‑ various hygienic process connections • Energy‑efficient flow measurement ‑ full‑bore design, no pressure loss • Space‑saving transmitter ‑ small size with full‑featured functions • Time‑saving local operation without additional hardware and software ‑ integrated web server • Integrated verification: Heartbeat Technology • Maintenance‑free: no moving parts
Favorite
Compare
Measuring principle:
According to Faraday’s Law of Electromagnetic Induction, an induced voltage is generated when a conductor moves in a magnetic field. In the electromagnetic measuring principle, the flowing medium acts as a moving conductor. The induced voltage (Uₑ) is proportional to the medium flow velocity (v) and is fed to the amplifier via two measuring electrodes. The volumetric flow rate (Q) is calculated from the pipe cross‑sectional area (A). Switched direct current with alternating polarity produces a direct‑current (DC) magnetic field. Calculation formulas • Induced voltage: Uₑ = B · L · v • Volumetric flow rate: Q = A · v
Product positioning:
Hygienic applications
Using scenario:
The Promag H sensor is suited for the most demanding applications with highest measurement requirements in the food & beverage and life‑science industries. The ultra‑compact transmitter features the industry’s smallest housing while delivering comprehensive performance for seamless system integration. This makes Promag H 100 the preferred choice for skid builders, system integrators and other original equipment manufacturers. Heartbeat Technology ensures compliance and process safety at all times. • Bidirectional measurement independent of pressure, density, temperature and viscosity • Suitable for demanding applications in the food & beverage and life‑science industries
