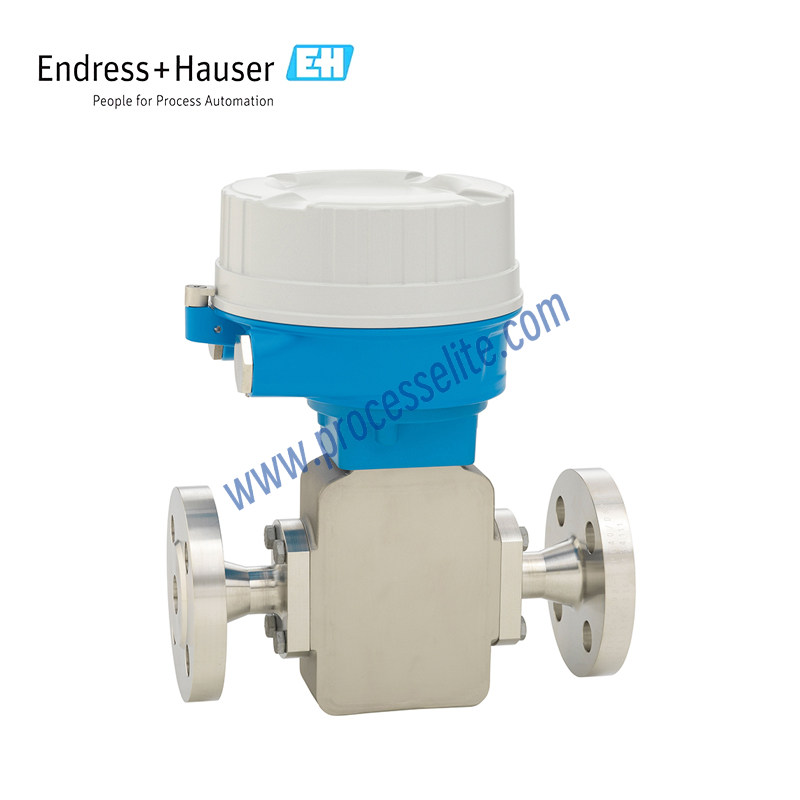

*Picture for reference only !

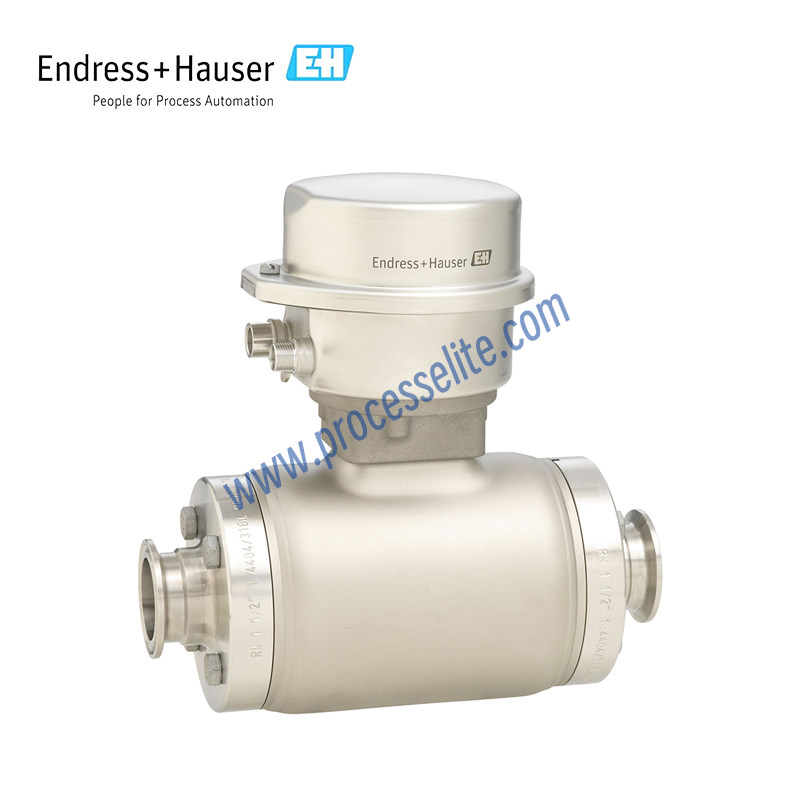

*Picture for reference only !
Product name:
Electromagnetic Flowmeter
Product series:

5H5B

Product brand:
E+H/Endress+Hauser
Product feature:
• PFA liner • Stainless‑steel sensor housing (3‑A certified, EHEDG‑tested) • Wetted‑part materials resistant to CIP and SIP cleaning • Remote version instrument with up to 4 input/output channels, hygienic process connections, sensor housing protection class: IP69 • Backlit display, touch‑key operation and WLAN access • Sensor and transmitter connected via standard cable • Multivariable measurement of flow, temperature and conductivity • Flexible installation: wide range of hygienic process connections available • Energy‑efficient flow measurement: no throttling components, ensuring zero pressure loss • Maintenance‑free: no moving parts • Full visibility of process and diagnostic information: multiple user‑configurable input/output combinations and Ethernet available • Reduced complexity and variety: user‑configurable input/output functionality • On‑board verification: integrated Heartbeat Technology
Favorite
Compare
Measuring principle:
According to Faraday’s Law of Electromagnetic Induction, an induced voltage is generated when a conductor moves in a magnetic field. In the electromagnetic measuring principle, the flowing medium acts as a moving conductor. The induced voltage (Uₑ) is proportional to the medium flow velocity (v) and is fed to the amplifier via two measuring electrodes. The volumetric flow rate (Q) is calculated from the pipe cross‑sectional area (A). Switched direct current with alternating polarity produces a direct‑current (DC) magnetic field. Calculation formulas • Induced voltage: Uₑ = B · L · v • Volumetric flow rate: Q = A · v
Product positioning:
Hygienic applications
Using scenario:
The Promag H sensor is particularly suited for hygienic applications and meets the demanding requirements of the food & beverage and life‑science industries. Combined with the innovative remote transmitter, Promag H 500 delivers high installation flexibility and operational safety even under harsh process conditions. Heartbeat Technology ensures continuous compliance and process safety. • Bidirectional measuring principle independent of pressure, density, temperature and viscosity • Suitable for demanding applications in the food & beverage and life‑science industries
