All >> Flow Measurement >> Electromagnetic Flowmeter

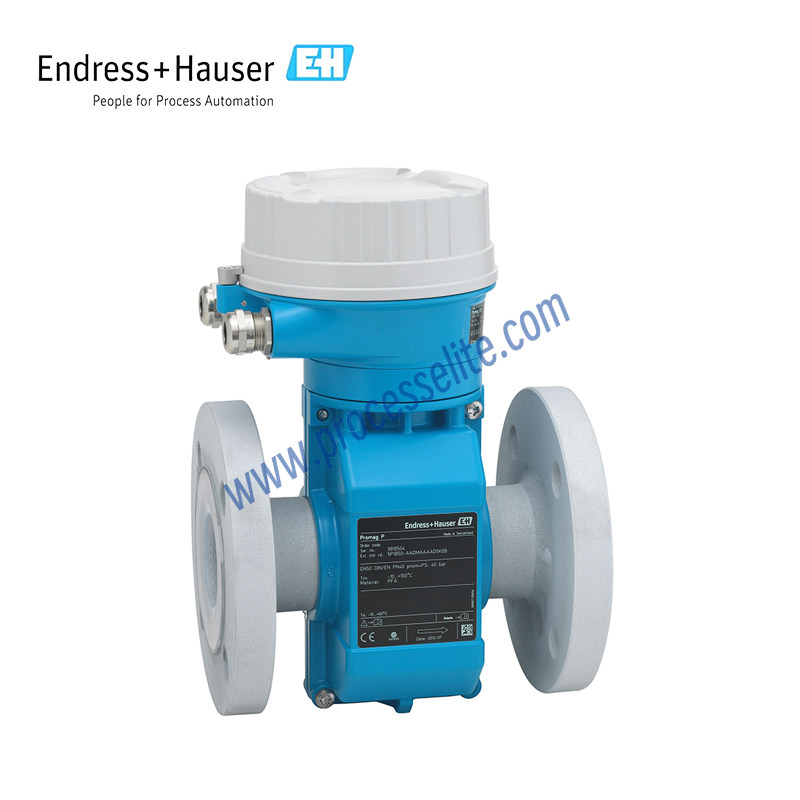

*Picture for reference only !
Product name:
Electromagnetic Flowmeter
Product series:

5P1B

Product brand:
E+H/Endress+Hauser
Product feature:
• Nominal diameter: max. DN 600 (24") • PTFE or PFA liner • Robust, ultra‑compact compact transmitter housing • Optional on‑site display • Wide range of applications: multiple wetted‑part material options • Energy‑saving flow measurement: full pipe cross‑section, no pressure loss • Maintenance‑free: no moving parts • Space‑saving transmitter: small size with full‑range functions • Time‑saving local operation via integrated web server, no additional hardware or software required • Integrated verification: Heartbeat Technology
Favorite
Compare
Measuring principle:
According to Faraday’s Law of Electromagnetic Induction, an induced voltage is generated when a conductor moves in a magnetic field. In the electromagnetic measuring principle, the flowing medium acts as a moving conductor. The induced voltage (Uₑ) is proportional to the medium flow velocity (v) and is fed to the amplifier via two measuring electrodes. The volumetric flow rate (Q) is calculated from the pipe cross‑sectional area (A). Switched direct current with alternating polarity generates a direct‑current (DC) magnetic field. Calculation formulas • Induced voltage: Uₑ = B · L · v • Volumetric flow rate: Q = A · v
Product positioning:
Chemical & Process Industry
Using scenario:
Promag P is suitable for process applications involving high‑temperature and corrosive media in the chemical industry. Featuring an ultra‑compact transmitter, Promag P 100 provides comprehensive functions in a compact form factor and supports easy seamless system integration. It is the preferred solution for skid builders, OEMs and system integrators. Heartbeat Technology guarantees continuous compliance and process safety. • Bidirectional measuring principle independent of pressure, density, temperature and viscosity • Designed for the measurement of corrosive and high‑temperature media in chemical & process applications
