5P2B

According to Faraday’s Law of Electromagnetic Induction, an induced voltage is generated when a conductor moves in a magnetic field. In the electromagnetic measuring principle, the flowing medium acts as a moving conductor. The induced voltage (Uₑ) is proportional to the medium flow velocity (v) and is fed to the amplifier via two measuring electrodes. The volumetric flow rate (Q) is calculated from the pipe cross‑sectional area (A). Switched direct current with alternating polarity produces a direct‑current (DC) magnetic field. Calculation formulas • Induced voltage: Uₑ = B · L · v • Volumetric flow rate: Q = A · v

Chemical & Process Industry

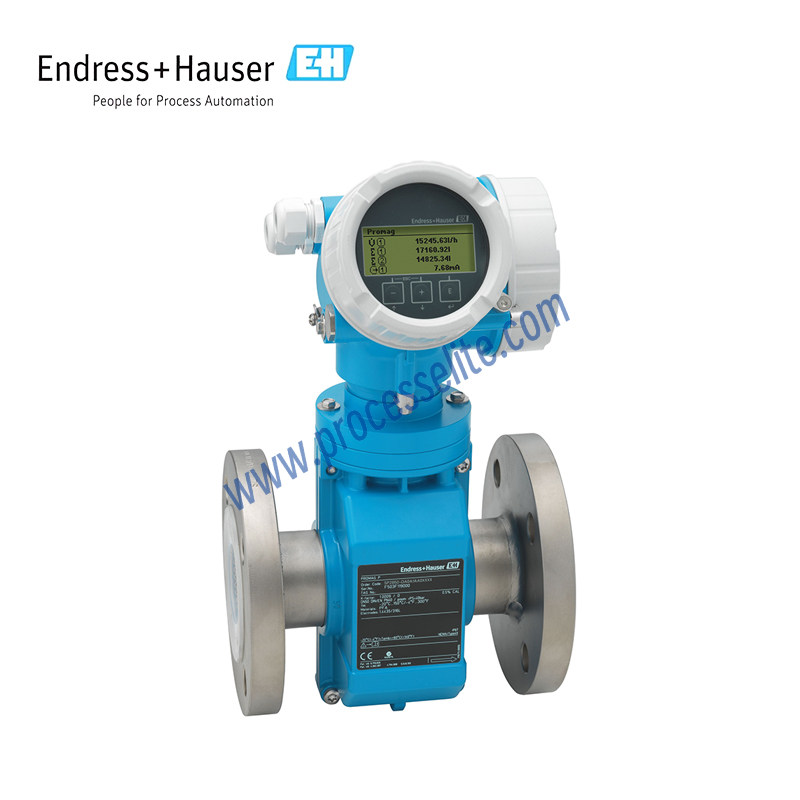

The Promag P 200 features industry‑compliant two‑wire technology, enabling seamless integration of the device with existing infrastructure and control systems. Intrinsically‑safe design (Ex ia) together with standard installation procedures ensures safe operation in hazardous areas. The Promag P 200 is suitable for measuring high‑temperature and corrosive media in the chemical industry. Promag P is designed for process applications involving high‑temperature and corrosive media within the chemical sector. Featuring true loop‑powered technology, the Promag P 200 enables cost‑effective, seamless integration with existing infrastructure. With its intrinsically‑safe design (Ex ia), the flowmeter delivers maximum operational safety even in hazardous areas. Heartbeat Technology guarantees permanent process safety. • Bidirectional measuring principle independent of pressure, density, temperature and viscosity • Designed for corrosive and high‑temperature media in chemical & process applications
