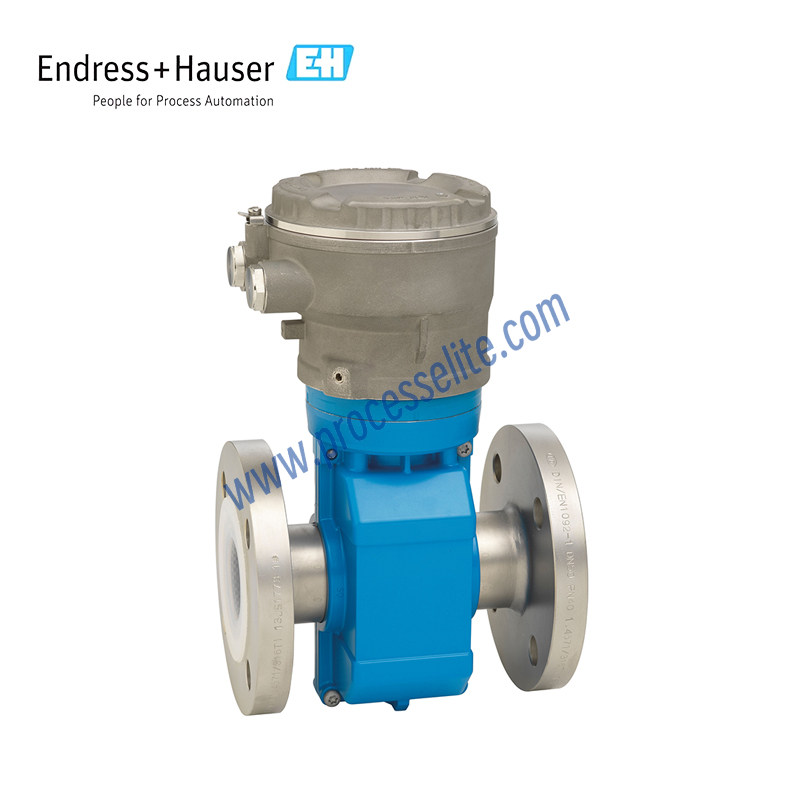

*Picture for reference only !

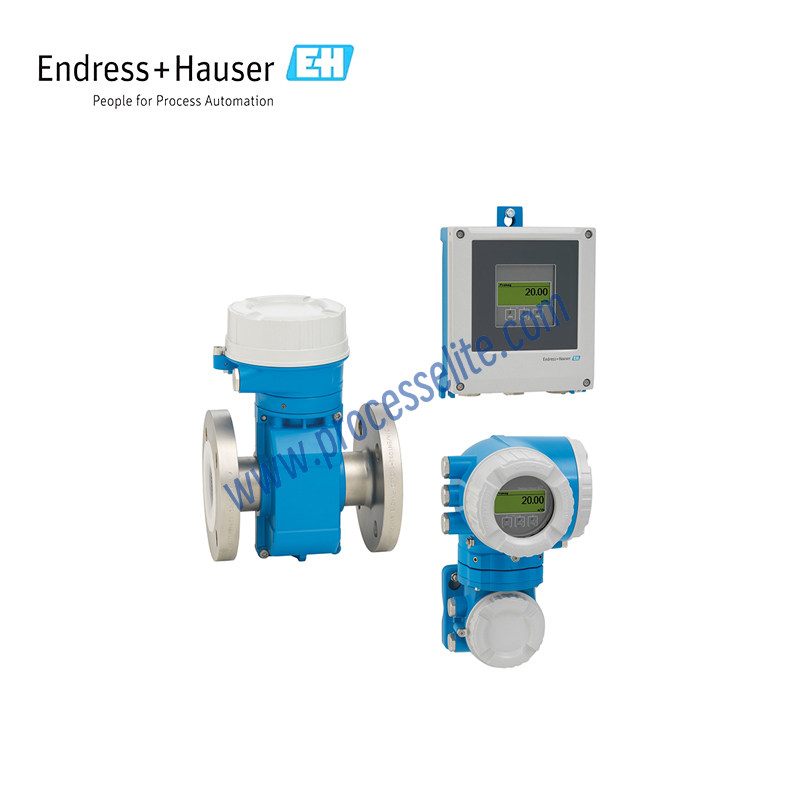

*Picture for reference only !

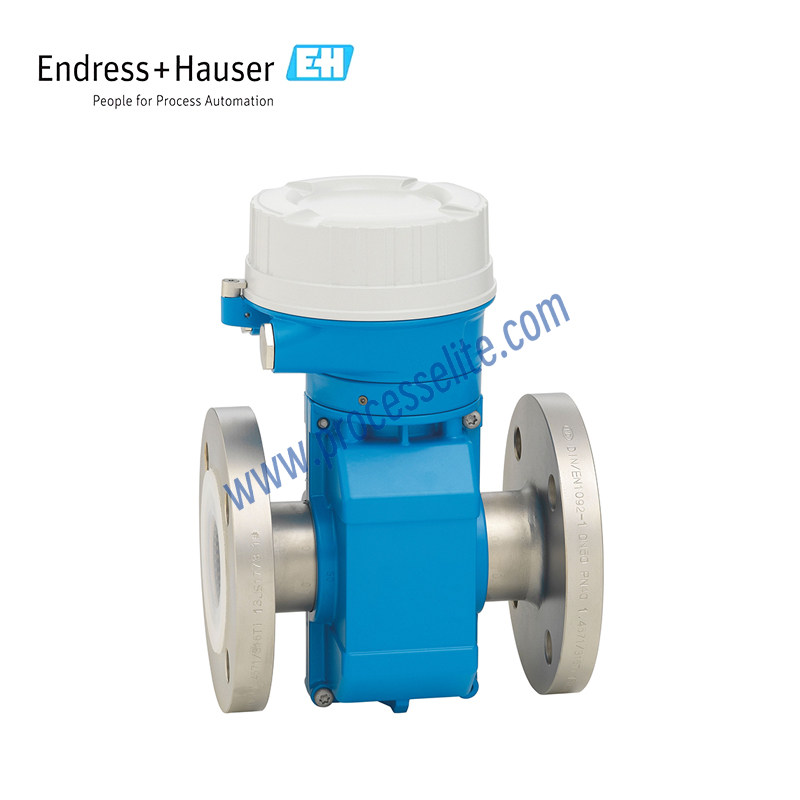

*Picture for reference only !
Product name:
Electromagnetic Flowmeter
Product series:

5P5B

Product brand:
E+H/Endress+Hauser
Product feature:
• Nominal diameter: max. DN600 (24") • All general explosion‑proof (Ex) certifications • PTFE or PFA liner • Remote version with up to 4 input/output channels • Backlit display, touch‑key operation and WLAN access • Sensor and transmitter connected via standard cable • Wide range of applications: multiple welded wetted‑part material options • Energy‑efficient flow measurement: no throttling components, ensuring zero pressure loss • Maintenance‑free: no moving parts • Full visibility of process and diagnostic information: multiple user‑configurable I/O combinations and Ethernet available • Reduced complexity and variety: user‑configurable input/output functionality • On‑board verification: integrated Heartbeat Technology
Favorite
Compare
Measuring principle:
According to Faraday’s Law of Electromagnetic Induction, an induced voltage is generated when a conductor moves within a magnetic field. For the electromagnetic measuring principle, the flowing medium acts as a moving conductor. The induced voltage (Uₑ) is proportional to the medium flow velocity (v) and is fed to the amplifier via two measuring electrodes. The volumetric flow rate (Q) is calculated from the pipe cross‑sectional area (A). Switched direct current with alternating polarity produces a direct‑current (DC) magnetic field. Calculation formulas • Induced voltage: Uₑ = B · L · v • Volumetric flow rate: Q = A · v
Product positioning:
Chemical & Process Industry
Using scenario:
The Promag P sensor is designed for measuring high‑temperature and corrosive media in chemical & process applications. Paired with the innovative remote transmitter, the Promag P 500 delivers maximum installation flexibility and highest operational safety even under harsh process conditions. Heartbeat Technology ensures continuous compliance and safeguards process safety. • Bidirectional measuring principle independent of pressure, density, temperature and viscosity • Special‑purpose flowmeter for high‑temperature and corrosive media in chemical & process applications
