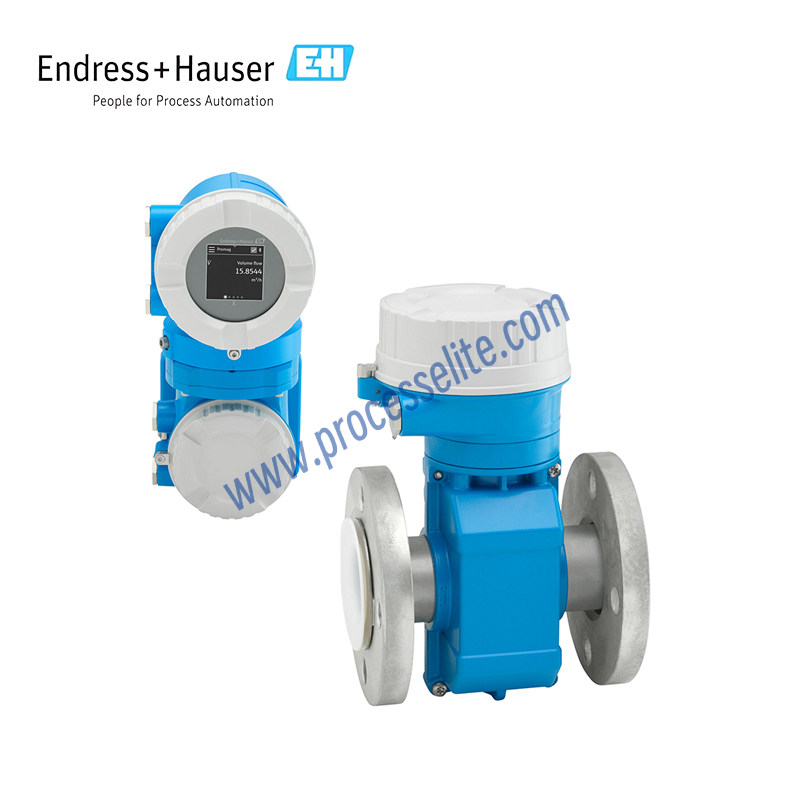

*Picture for reference only !

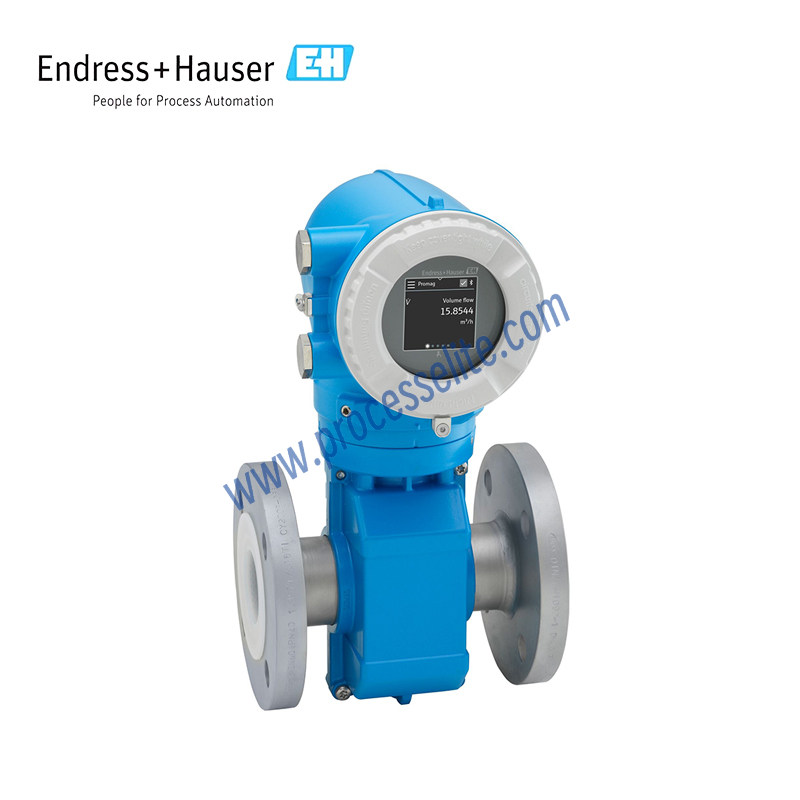

*Picture for reference only !
*Picture for reference only !
Product name:
Electromagnetic Flowmeter
Product series:

5PBB

Product brand:
E+H/Endress+Hauser
Product feature:
• Max. nominal diameter: DN 600 (24") • General explosion‑proof certification approved • PTFE or PFA liner • System integration with HART or Modbus RS485 supported • Flexible operation via App and optional display unit • Wide range of applications: multiple wetted‑part material options available • Energy‑saving flow measurement: no throttling components, no pressure loss • Maintenance‑free: no moving parts • Optimum operability: direct touch‑screen operation on mobile devices with SmartBlue App • Simple and efficient commissioning: guided pre‑configuration and on‑site setup • Self‑check function available: equipped with Heartbeat Technology
Favorite
Compare
Measuring principle:
According to Faraday’s Law of Electromagnetic Induction, an induced voltage is generated when a conductor moves in a magnetic field. In the electromagnetic measuring principle, the flowing medium acts as a moving conductor. The induced voltage (Uₑ) is proportional to the medium flow velocity (v), and is transmitted to the amplifier via two measuring electrodes. The volumetric flow rate (Q) is calculated based on the pipe cross‑sectional area (A). Switched direct‑current with alternating polarity generates a direct‑current (DC) magnetic field. Calculation Formulas • Induced voltage: Uₑ = B · L · v • Volumetric flow rate: Q = A · v
Product positioning:
Chemical & Process Industry
Using scenario:
The Promag P sensor is the ideal choice for measuring corrosive and high‑temperature liquids in the chemical & process industry. The hardware and software of Promag P 10 feature intuitive design. While ensuring Endress+Hauser high‑quality standards, it greatly simplifies every step across the instrument’s full life cycle from engineering to service. Equipped with Heartbeat Technology to safeguard process safety. • Bidirectional flow measurement, fully independent of pressure, density, temperature and viscosity • Ideal for corrosive liquid measurement in the chemical & process industry
