Product name:

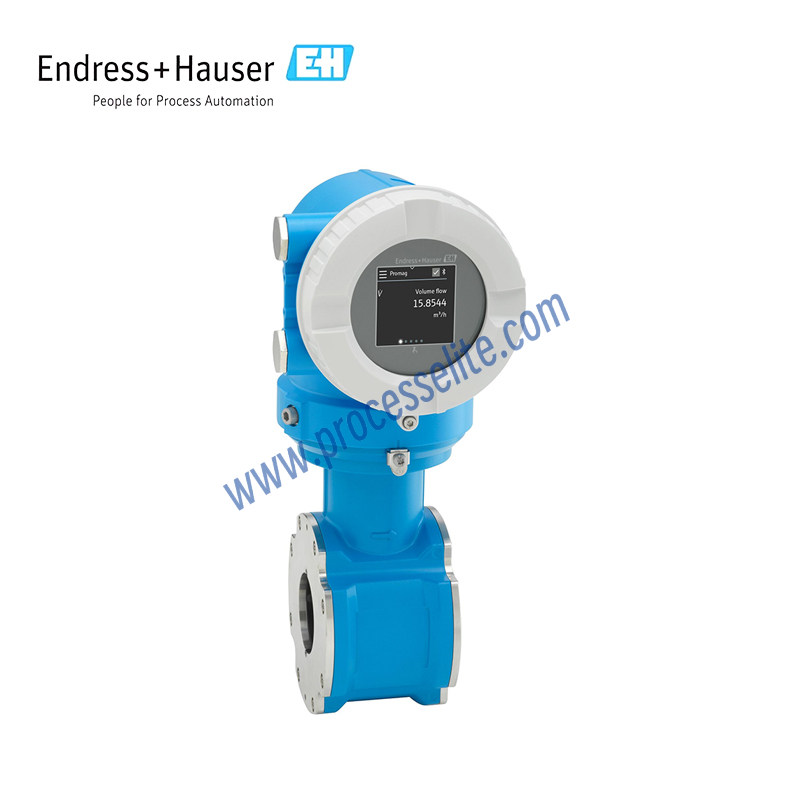

Electromagnetic Flowmeter
Product series:

5DBB

Product brand:
E+H/Endress+Hauser
Product feature:
• Short installation length requirement and low weight • Integrated stainless‑steel grounding ring • Certified to international drinking‑water standards • System integration via HART or Modbus RS485 • Flexible operation: setup via app with optional display unit • Simple centring installation of sensor thanks to innovative housing design • Energy‑saving flow measurement: no obstructions, no pressure loss • Maintenance‑free: no moving parts • Optimum operability: direct touch‑screen operation using mobile devices with the SmartBlue app • Fast and efficient commissioning: guided pre‑configuration and on‑site setup • Self‑verification function via Heartbeat Technology
Favorite
Compare
Measuring principle:
In the electromagnetic measuring principle, the flowing medium acts as a moving conductor. The induced voltage (Ue) is proportional to the flow velocity (v) of the medium, and is transmitted to the amplifier via two measuring electrodes. The volumetric flow rate (Q) is calculated based on the pipe cross‑sectional area (A). A switched direct current with alternating polarity generates the direct‑current (DC) magnetic field. Calculation formulas • Induced voltage: Ue = B · L · v • Volumetric flow rate: Q = A · v
Product positioning:
Clamped version; Water & Wastewater
Using scenario:
The Promag D electromagnetic flowmeter features clamped installation and is intended for basic water‑industry applications with limited installation space. Both hardware and software of the Promag D 10 adopt intuitive design. While retaining Endress+Hauser high quality standards, it greatly simplifies every step across the instrument’s full lifecycle, from engineering design to after‑sales service. Heartbeat Technology ensures measurement reliability and verification compliance. • Bi‑directional flow measurement, fully independent of pressure, density, temperature and viscosity • Suitable for standard water‑industry applications; can be installed in confined spaces and on plastic pipes
