9I4B Ultrasonic Flowmeter - Processelite

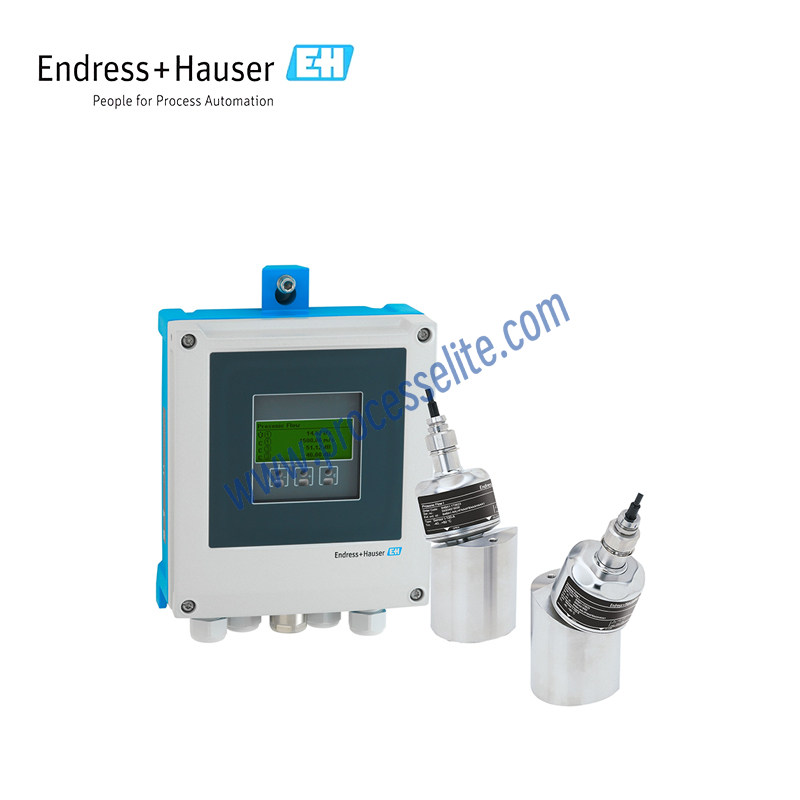

*Picture for reference only !

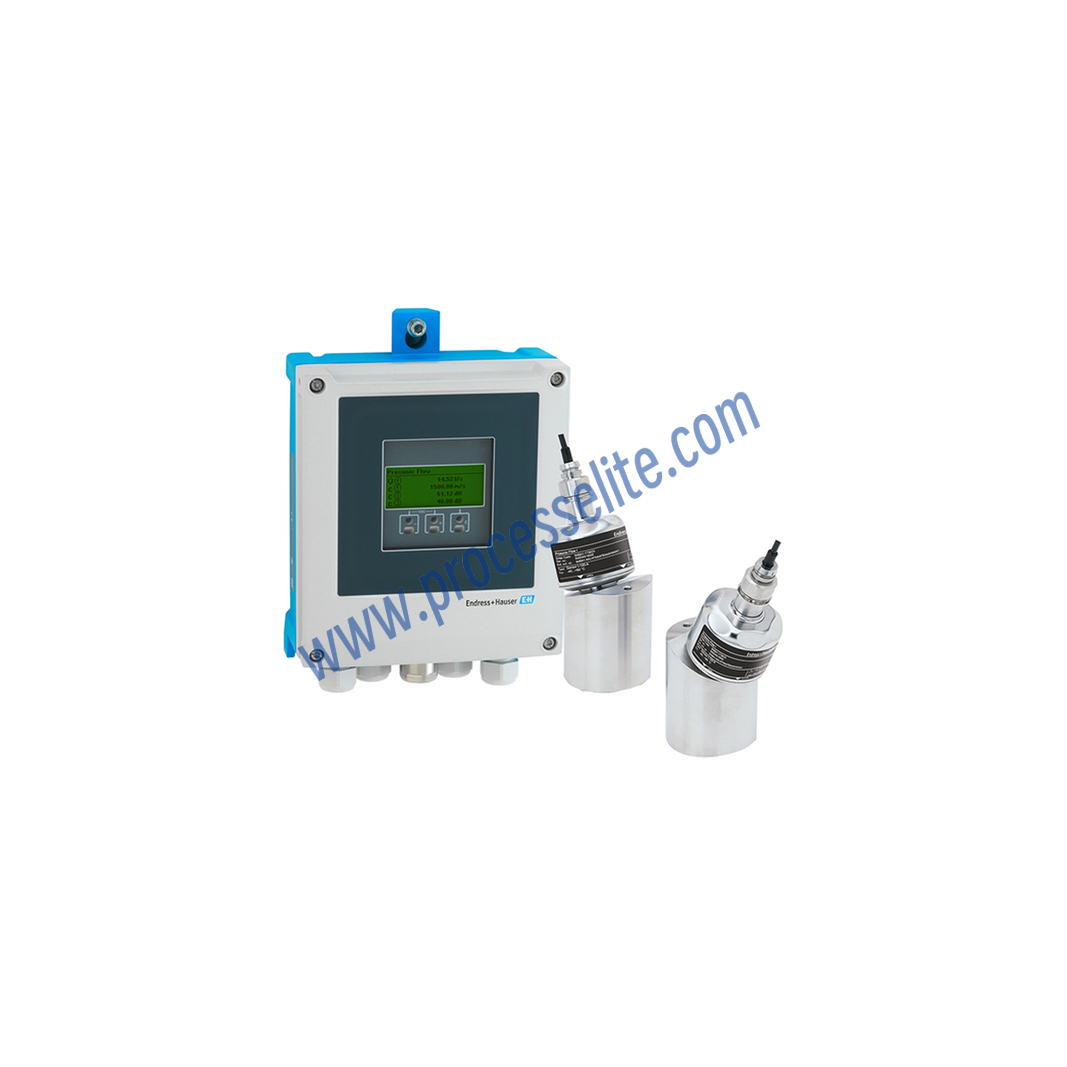

9I4B Ultrasonic Flowmeter - Processelite
Product name:
Ultrasonic Flowmeter
Product series:

9I4B

Product brand:
E+H/Endress+Hauser
Product feature:
• Supports dual‑path measurement • Wide pipe size range: DN200…4000 (8…160") • Medium temperature range: –40…+80 °C (–40…+176 °F) • Transmitter housing: Polycarbonate or aluminium for long service life • Remote version allows wall‑mounting • Integrated data logger for measured value monitoring • Cost‑effective: lower operating cost for larger pipe sizes (max. DN4000 / 160") • Long‑term signal stability: maintenance‑free, sensors are directly wetted • Process transparency with diagnostic functions • Safe operation: backlit touch‑screen display; no need to open the instrument • Trouble‑free remote access via web server • Heartbeat Technology: comprehensive self‑diagnosis, self‑monitoring and self‑verification
Favorite
Compare
Measuring principle:
The measuring system operates on the transit‑time principle. Acoustic signals (ultrasonic waves) are transmitted between two sensors. Bi‑directional signal transmission is supported, meaning each sensor can send and receive acoustic waves. The propagation speed of sound increases when travelling with the flow and decreases when travelling against the flow, resulting in a transit‑time difference. This transit‑time difference is proportional to the flow velocity of the medium. The measuring system calculates the volumetric flow rate of the medium using the measured transit‑time difference and the pipe cross‑sectional area. In addition to the transit‑time difference, the sound velocity of the medium can be measured simultaneously. This extra measured variable enables differentiation between different media or monitoring of medium quality.
Product positioning:
Standard & Insertion Measurement
Using scenario:
The Prosonic Flow I 400 combines the advantages of insertion sensors and the Proline 400 transmitter, such as Heartbeat Technology for safe process monitoring. Equipped with an Ethernet web server, it delivers high convenience in installation and operation. The Prosonic Flow I 400 is installed by welding directly onto the pipe wall, making it particularly suitable for large‑diameter pipes in water distribution networks and projects requiring fixed instrument mounting positions. Measurement is independent of medium density and conductivity. Bi‑directional flow measurement for water and wastewater.
