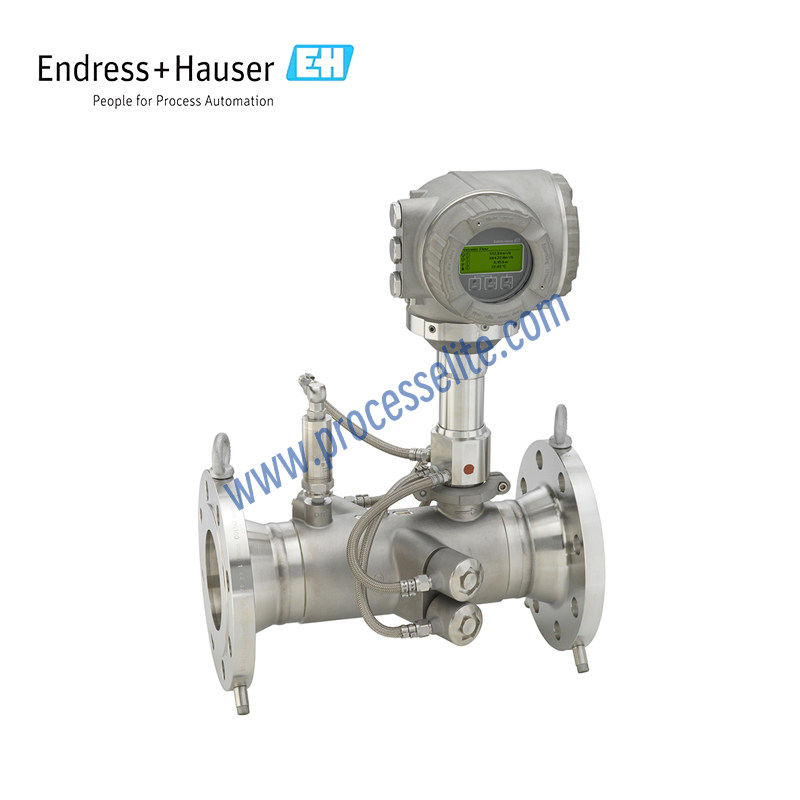

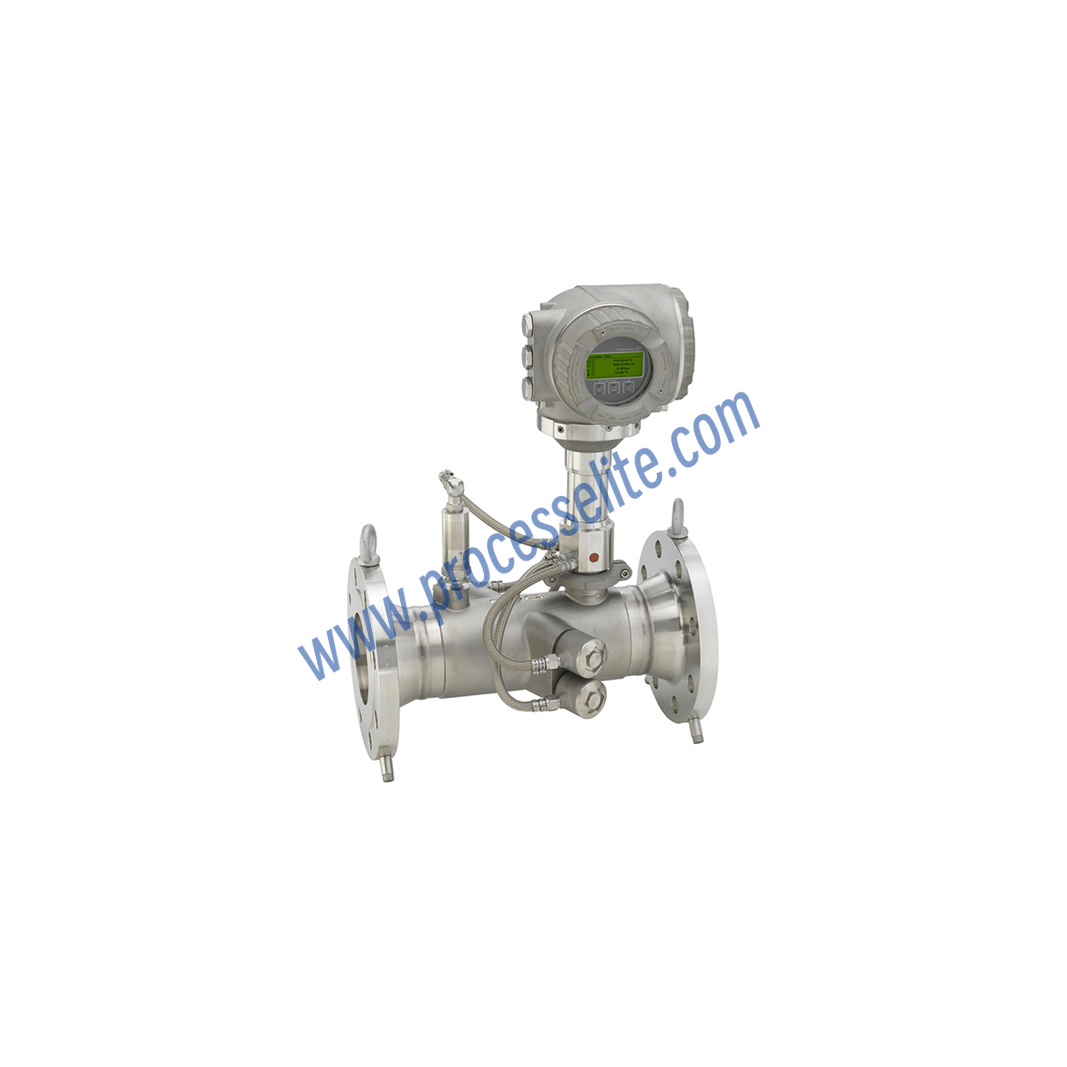

9G3B

The measuring device determines the flow velocity of the medium passing through the measuring tube by means of offset‑mounted downstream ultrasonic sensors. It features a design with no pressure loss and no moving parts. The flow signal is calculated by alternately measuring the one‑way transit time of sound waves between the sensors. The underlying principle: the propagation speed of sound waves increases in the downstream direction and decreases in the upstream direction. The resulting transit‑time difference (∆t) is used to determine the flow velocity of the medium between the sensors. The volumetric flow rate is obtained by summing the flow velocities measured by each sensor pair and multiplying the total by the cross‑sectional area of the measuring tube, with full consideration of fluid‑dynamic effects. The structural design and arrangement of the sensors ensure that only a short upstream straight pipe length is required behind common pipe disturbances upstream of the meter (e.g. elbows installed in one or two planes). Advanced digital signal processing combined with innovative sensor design enables stable calculation of flow signals. This combination mitigates the effects of multiphase flow conditions (wet and variable gas conditions) and improves measurement reliability.

Industrial Gas Measurement

Prosonic Flow G is widely used for various gas measurement applications. It delivers reliable flow measurement even under conditions of wet gas and fluctuating gas properties and compositions. The pressure‑resistant sensor housing is equipped with a rupture disc to reduce safety risks. When paired with the integrated transmitter, it offers flexible operation and easy integration: wiring on one side of the device, remote display, and improved connection options. Heartbeat Technology ensures continuous compliance and process safety. • Measuring principle independent of gas composition • High‑accuracy measurement of natural gas and process gas in the chemical and oil & gas industries
