9B2B Ultrasonic Flowmeter - Processelite
*Picture for reference only !

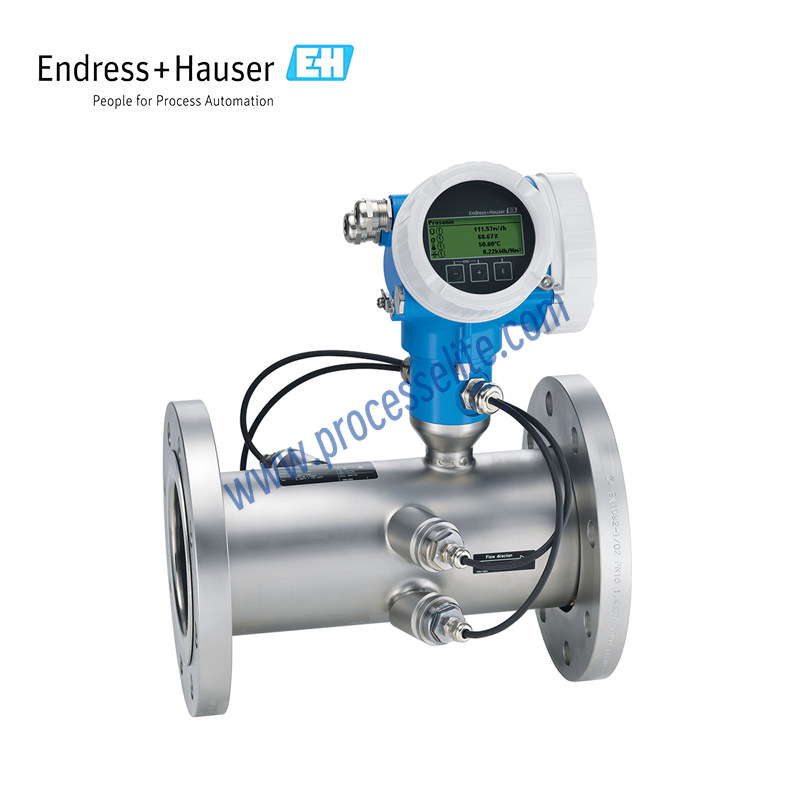

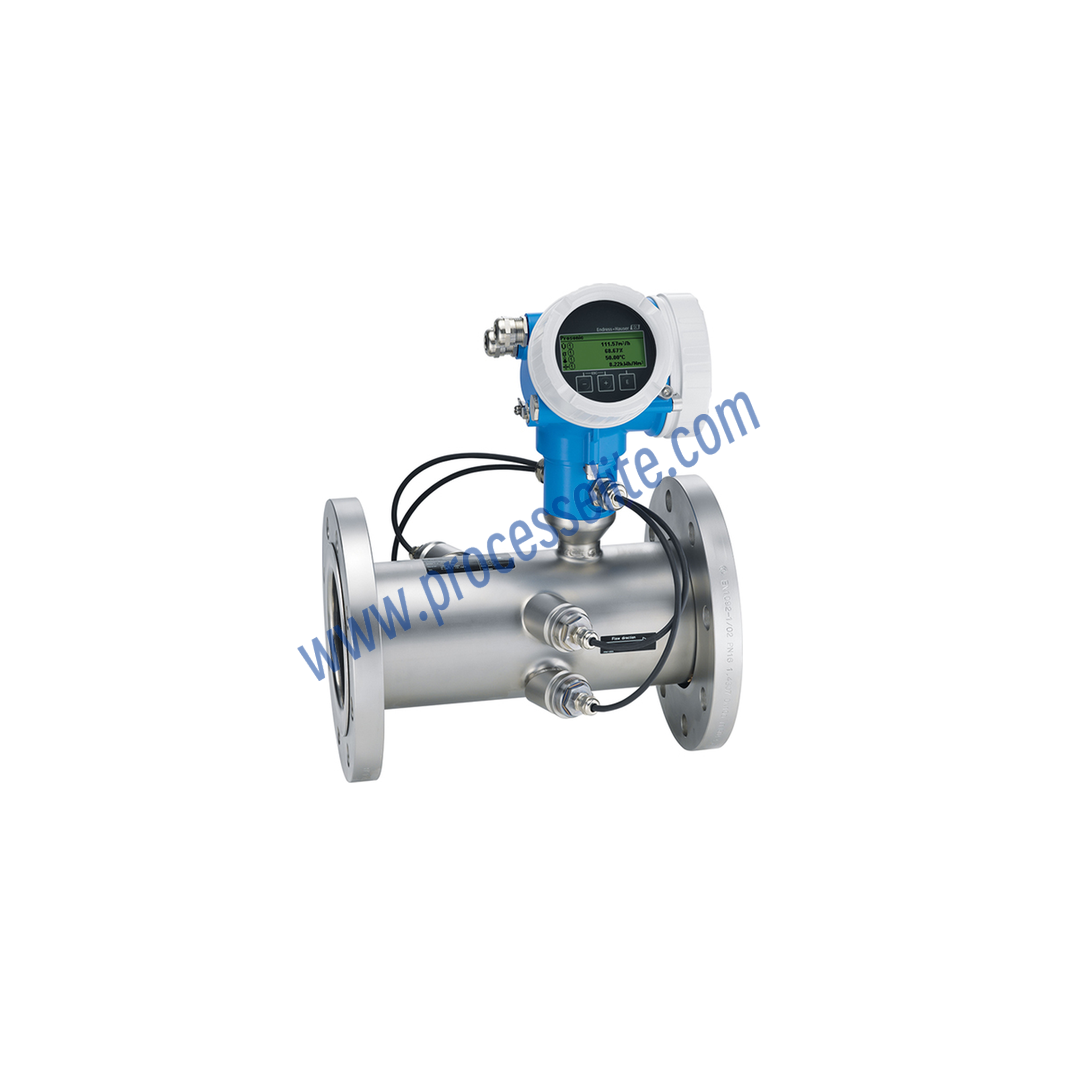

9B2B Ultrasonic Flowmeter - Processelite
Product name:
Ultrasonic Flowmeter
Product series:

9B2B

Product brand:
E+H/Endress+Hauser
Product feature:
• Multivariable device: flow, temperature and methane • Medium temperature: 0~80 °C (32~176 °F) • Process pressure: 0.7~11 barₐ (10.2~159 psiₐ) • Loop‑powered technology • Robust dual‑chamber enclosure • Plant safety: global approvals • Integrated real‑time methane content measurement • Optimal measuring device for low‑pressure gases: specially designed sensor • No pressure loss: full‑bore design • High process transparency with diagnostic functions • Convenient device wiring: separate connection housing • Safe operation: no cover opening required, thanks to touch‑operated backlit display • Comprehensive verification: Heartbeat Technology
Favorite
Compare
Measuring principle:
Proline Prosonic Flow ultrasonic flowmeters measure the flow velocity of the medium inside the pipe. Two sensors are mounted on opposite sides of the measuring tube at an angle, with one sensor positioned downstream of the other. The flowmeter’s design does not intrude into the pipe and contains no moving parts. The flow signal is calculated based on the acoustic signals and transit‑time difference between sensor pairs. The sound wave travels faster in the downstream direction than in the upstream direction. This creates a transit‑time difference (ΔT), which is used to determine the fluid flow velocity between the sensors.
Product positioning:
Biogas Measurement Specialist
Using scenario:
Prosonic Flow B 200 delivers accurate and reliable measurement of wet biogas and digester gas under fluctuating process conditions. In addition, Prosonic Flow B 200 provides real‑time methane content analysis. This unique feature enables users to perform continuous flow measurement as well as ongoing gas quality monitoring. Furthermore, Heartbeat Technology ensures effective process control and energy balancing, while consistently guaranteeing compliance and process safety. • Measuring principle independent of gas composition • Inline flowmeter for measurement of wet biogas and digester gas under fluctuating process conditions
