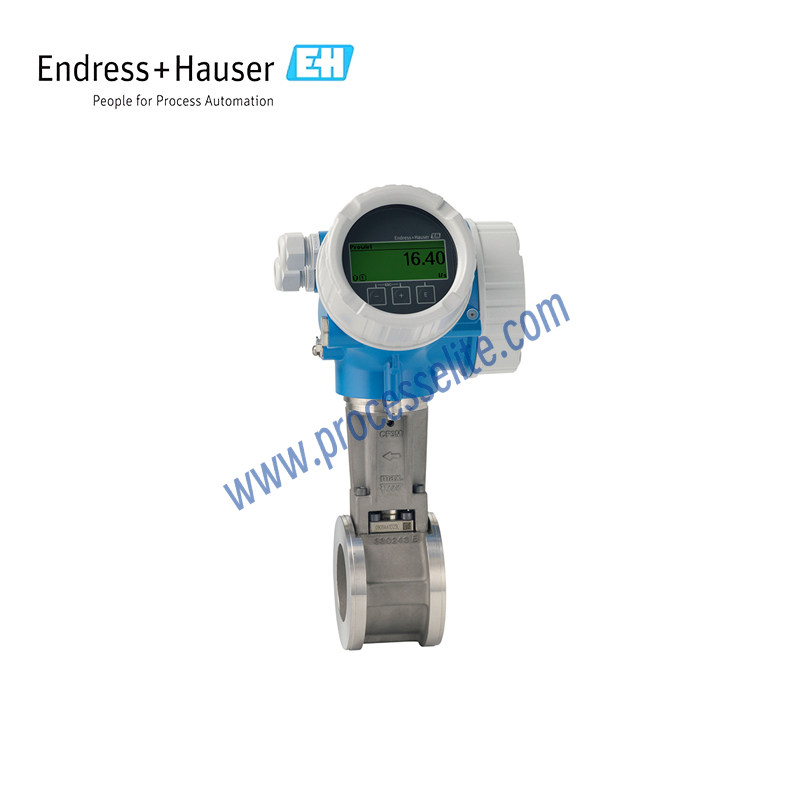

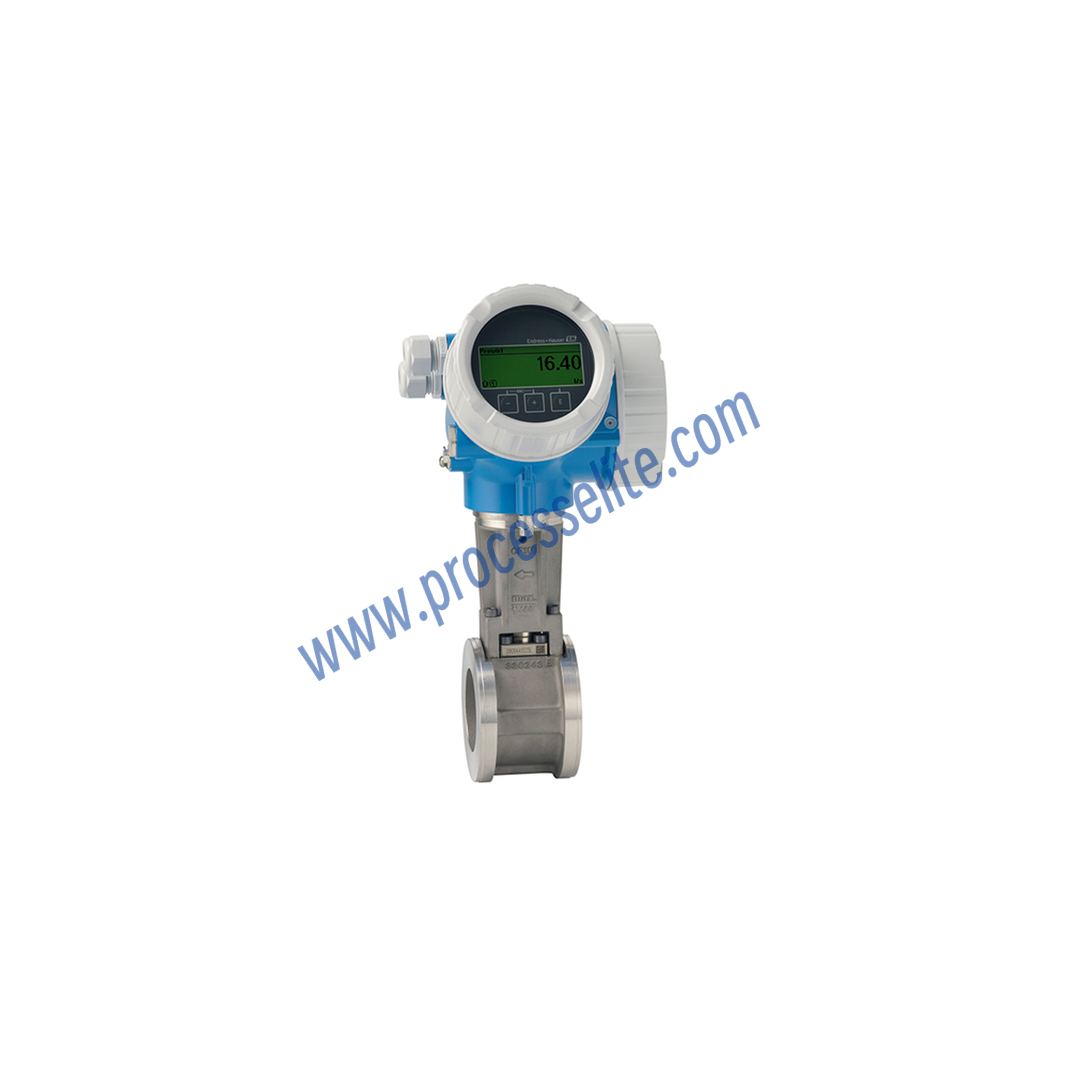

7D2C Vortex Flowmeter - Processelite
*Picture for reference only !
7D2C Vortex Flowmeter - Processelite
Product name:
Vortex Flowmeter
Product series:

7D2C

Product brand:
E+H/Endress+Hauser
Product feature:
• Face‑to‑face dimension: 65 mm (2.56 in) • Flangeless design • Low weight • Display unit with data transfer function • Robust dual‑chamber housing • Plant‑wide safety: multiple international certifications (SIL, explosion‑proof) • Integrated temperature measurement for mass‑flow / energy‑flow measurement of saturated steam • Simple installation: sensor with centring ring • High stability: field‑proven robustness against vibration, thermal shock and water hammer • Excellent long‑term stability: drift‑free capacitive sensor with rugged construction • Convenient wiring: separate wiring compartment • Safe operation: backlit display with touch‑key control; no need to open the instrument • Self‑verification function via Heartbeat Technology
Favorite
Compare
Measuring principle:
The vortex flowmeter operates based on the Karman vortex‑street principle. When fluid flows past a bluff body, vortices are alternately shed from both sides in opposite rotational directions. Each vortex creates a low‑pressure zone. The sensor detects these pressure fluctuations and converts them into electrical pulse signals. Within the permissible measuring range of the flowmeter, vortices are generated regularly. Consequently, the vortex frequency is proportional to the volumetric flow rate.
Product positioning:
Clamped‑type
Using scenario:
The Prowirl D sensor is installed directly between two flanges. For this reason, it acts as an auxiliary functional device in secondary process sections with very low operating costs. The Prowirl D 200 is a true two‑wire loop‑powered flowmeter. It is cost‑effective and allows seamless integration into existing systems, delivering maximum operational safety in hazardous areas. Heartbeat Technology consistently guarantees process safety. • The measuring principle is particularly suitable for wet steam / saturated steam / superheated steam, gases and liquids (including cryogenic media) • Suitable for all basic applications and enables one‑to‑one orifice plate replacement
