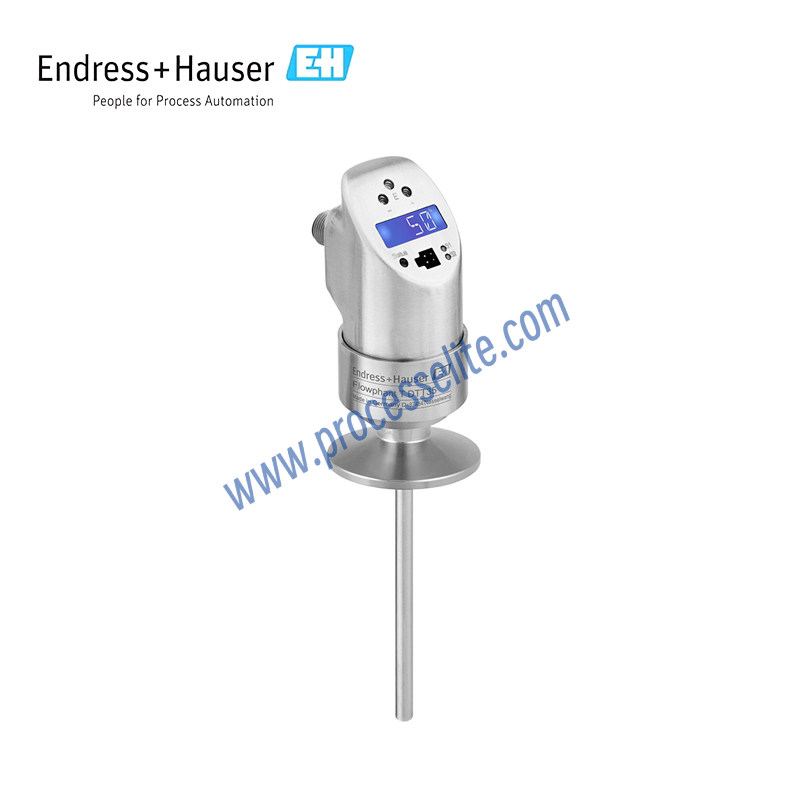

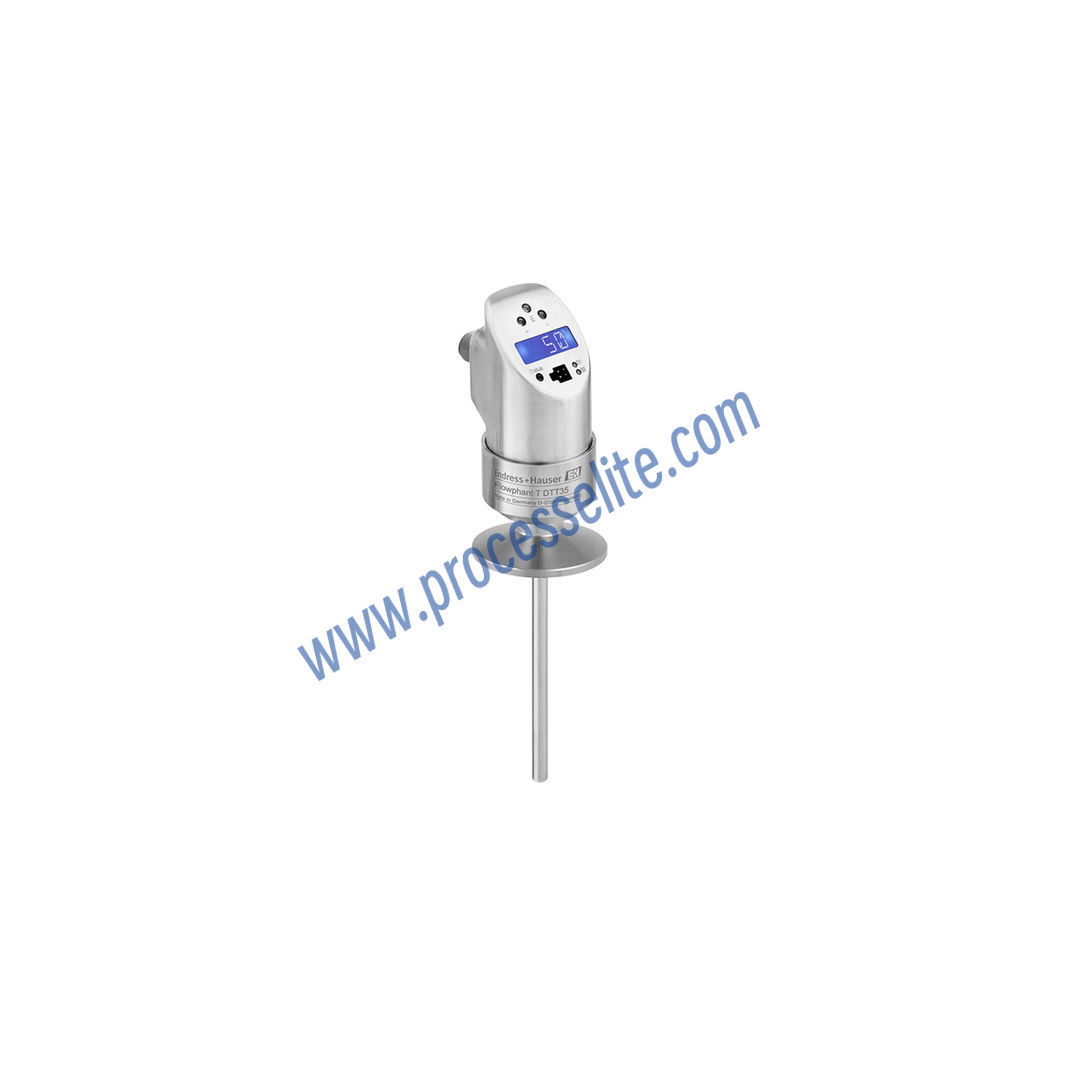

DTT35 Flow switch - Processelite
*Picture for reference only !
DTT35 Flow switch - Processelite
Product name:
Flow switch
Product series:

DTT35

Product brand:
E+H/Endress+Hauser
Product feature:
• Pressure loss can be ignored • Equipped with configuration software Field Care, used for quick setup and reliable storage of set values • Optional second switch output or 4~20mA analog output, for temperature monitoring or for reading flow percentage values • Digital display panel for online functional checks and process information display • Top of the housing can rotate 310°, equipped with a rotatable display panel, allowing measurement values to be read from any direction • 3-A certified
Favorite
Compare
Measuring principle:
The device measures the mass flow rate of a liquid based on the thermal principle. The thermal measurement principle involves measuring the cooling effect on a heated temperature sensor. As the medium flows through the sensor, it carries away part of the heat. The heat conduction capability depends on the flow rate of the medium as well as the temperature difference between the sensor and the medium (King's law). The greater the flow rate or mass flow of the medium, the more pronounced the cooling effect on the temperature sensor.
Product positioning:
Compact Thermal Flow Switch
Using scenario:
This flow switch is specifically designed for safety monitoring and displaying liquid mass flow in sanitary processes within the beverage industry, such as monitoring cooling water circulation systems and filtration. It offers optional 1~2 switch outputs, or 1 switch output and 1 standard analog output for flow and temperature value outputs. It is versatile in application and suitable for various sanitary process connections.
