8-channel Transmitter

E+H/Endress+Hauser

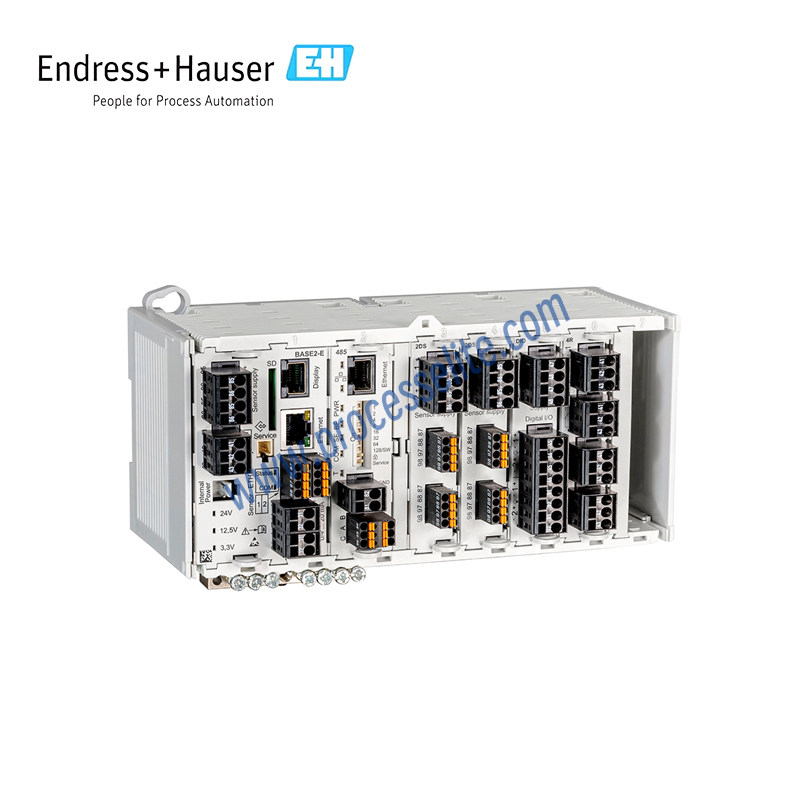

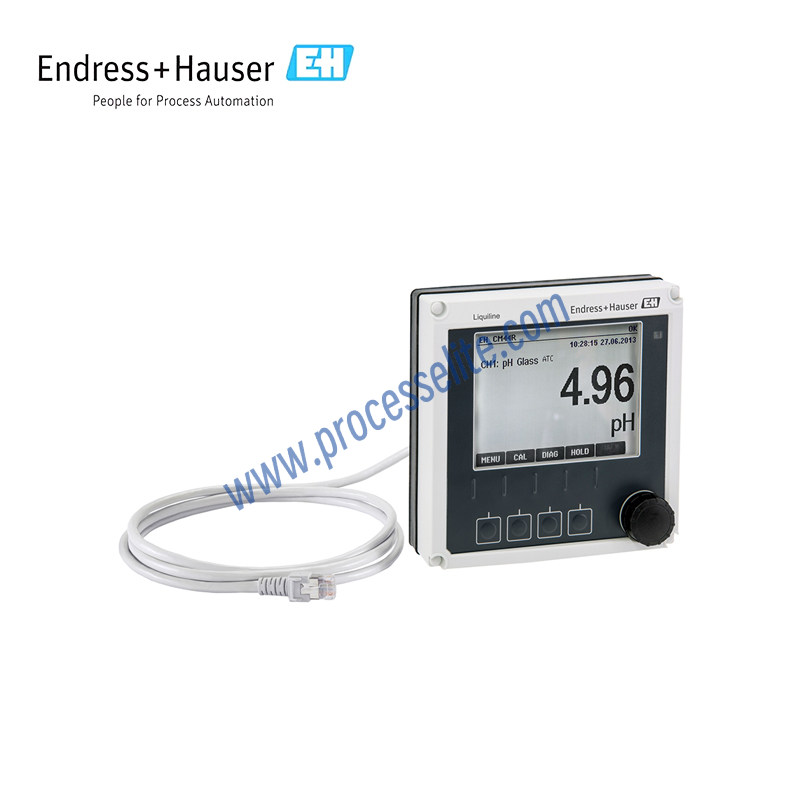

• Liquiline CM448R supports the following communication protocols and interfaces: 0/4...20 mA, HART, PROFIBUS DP, Modbus, EtherNet/IP, PROFINET, Webserver • The Liquiline CM448R transmitter can be expanded with modules holding explosion‑proof certifications (e.g. IECEx, ATEX and CSA), enabling connection to sensors installed in hazardous areas. • Space‑saving and cost‑effective: compact 8‑channel device for DIN rail mounting inside control cabinets. • Fast installation: no cutout required on cabinet door, one‑click DIN rail mounting with reduced wiring effort. • Simple and safe commissioning: configurations saved on SD card for quick setup during repeated installations. • Easy operation and servicing: intuitive user panel, plug‑and‑play functionality with pre‑calibrated Memosens sensors; universal components suitable for all measured parameters. • Remote process control: via the built‑in web server, operators can remotely access diagnostic data, perform parameter configuration or retrieve device parameters from any web browser — even using a smartphone. • Higher availability at lower cost: Heartbeat Technology enables condition‑based maintenance, effortless measuring‑point verification and supports optimisation actions. • Connectivity enabled: process data can be uploaded to the Netilion IIoT cloud ecosystem via the Liquiline Edge Module CYY7, independent of any fieldbus. It facilitates remote viewing and access to IIoT digital services. The edge device is available as an option for new units and can also be retrofitted on Liquiline platform devices.
