Product name:

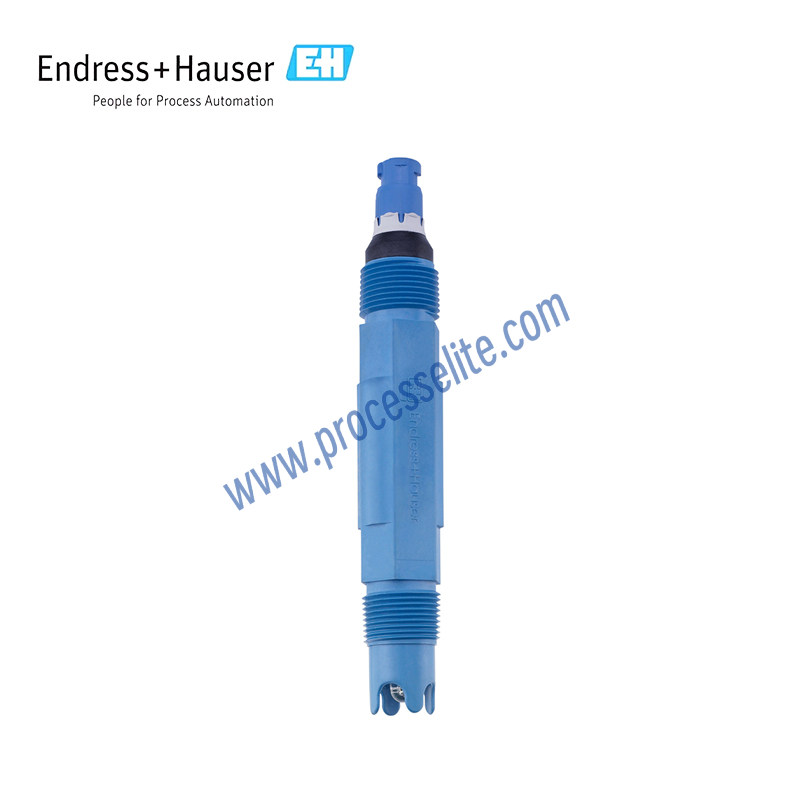

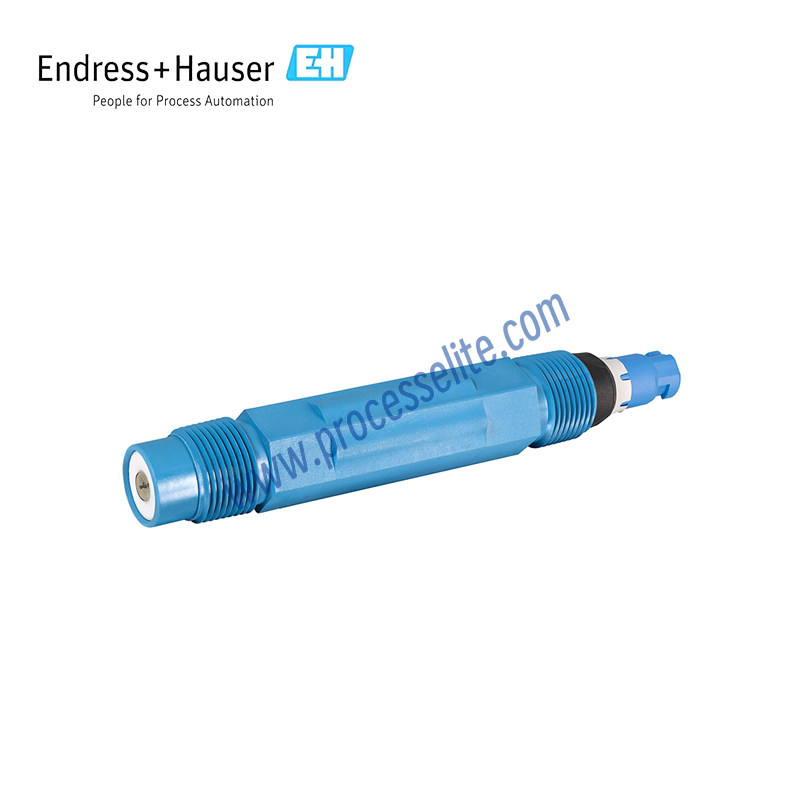

Digital pH Sensor
Product series:

CPF81E

Product brand:
E+H/Endress+Hauser
Product feature:
• Certified to CSA C/US for use in hazardous areas Zone 0, Zone 1 and Zone 2. • Memosens 2.0 with extended memory stores calibration and process parameters to enable improved trend identification, providing an ideal foundation for future predictive maintenance and enhanced IIoT services. • High long‑term stability: dual‑diaphragm design delivers superior resistance against ionic toxic diffusion, e.g. S²⁻ or CN⁻. • Robust polymer housing offers effective protection against mechanical damage. • Flat‑diaphragm option enables measurement in high‑flow and abrasive media. • Non‑contact inductive signal transmission ensures high process safety. • Minimises production downtime, extends electrode service life and reduces operating costs.
Favorite
Compare
Measuring principle:
pH is the unit for measuring the acidity and alkalinity of a medium. An electrochemical potential is generated on the glass membrane of the electrode, and its potential value depends on the pH of the medium. Hydrogen ions (H⁺) accumulate selectively on the outer membrane, producing an electrochemical potential, namely an electrochemical boundary layer with a potential difference. The built‑in Ag/AgCl reference system serves as the reference electrode. The measured voltage is converted into the corresponding pH value based on the Nernst equation.
Product positioning:
High-end
Using scenario:
The Memosens CPF81E is a digital pH electrode with robust construction for stable pH measurement under demanding operating conditions. Measurements remain unaffected even in corrosive media and high‑flow media. Supplied with an integrated mounting bracket, it requires minimal installation space. Featuring Memosens 2.0 digital technology, the CPF81E delivers high process integrity and user‑friendly operation. The electrode is moisture‑resistant and waterproof, and supports laboratory calibration. Its extended data storage saves calibration and process parameters, forming an ideal basis for predictive maintenance. The rugged Memosens CPF81E pH electrode is suitable for mining applications, water and wastewater treatment, flotation processes, leaching processes, neutralisation processes, as well as inlet and outlet points.
