All >> Water analysis >> Digital Non-glass pH Sensor

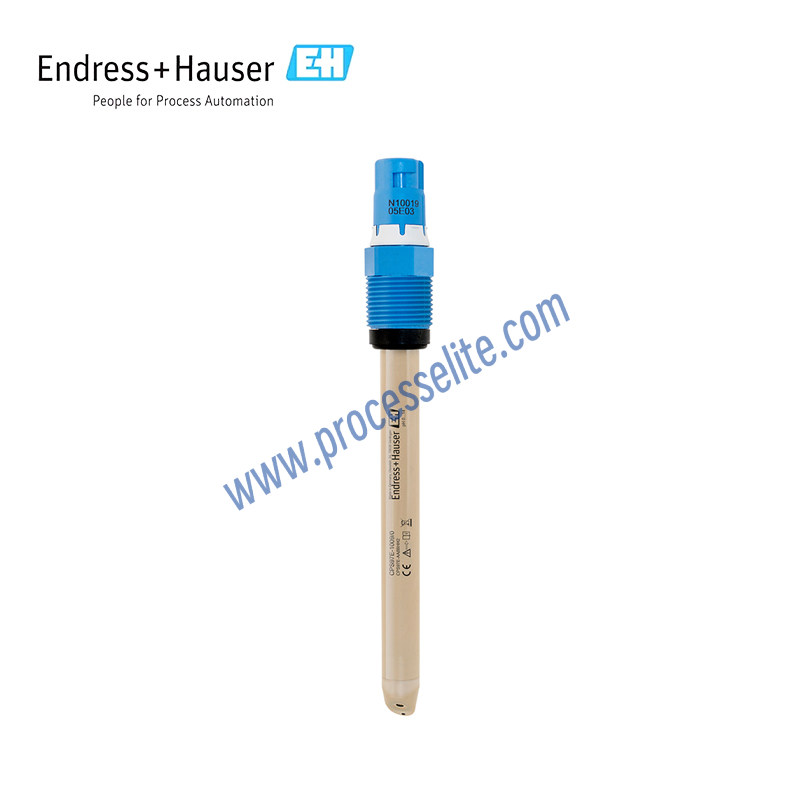

*Picture for reference only !

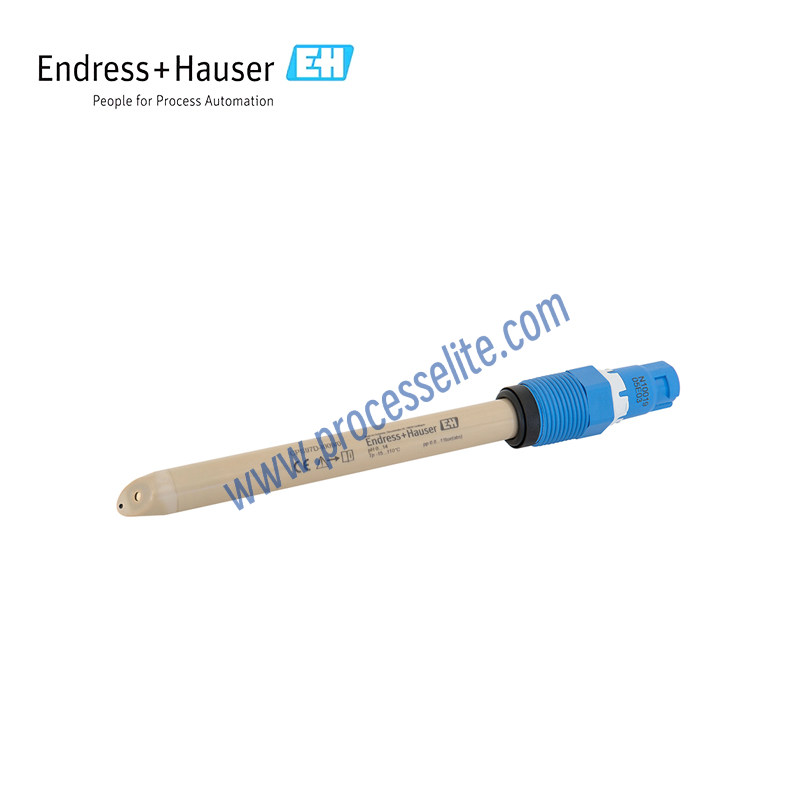

*Picture for reference only !
Product name:
Digital Non-glass pH Sensor
Product series:

CPS97E

Product brand:
E+H/Endress+Hauser
Product feature:
• Memosens 2.0 supports an extended memory unit for storing calibration and process parameters, enabling improved trend identification. It provides an ideal foundation for implementing predictive maintenance and advancing IIoT technologies. • No risk of glass breakage: PEEK electrode shaft withstands demanding process conditions and ensures product safety. • Open‑aperture diaphragm meets measurement requirements for heavily contaminated media and prevents electrode clogging. • Chemically stable reference gel guarantees long‑term stable measurement results. • Low maintenance effort: ISFET technology is immune to high temperatures and temperature fluctuations, allowing long calibration intervals. • Maximum process safety: non‑contact inductive signal transmission makes measurements unaffected by humid environments and corrosive conditions.
Favorite
Compare
Measuring principle:
The pH‑selective ISFET (Ion‑Sensitive Field‑Effect Transistor) gate insulator serves as the ion‑selective layer for H⁺ ions. The gate insulator permits bidirectional passage of H⁺ ions while blocking other ions (isolation effect). Depending on the acidity‑alkalinity of the measured medium, the insulator surface accepts or releases H⁺ ions (amphoteric behaviour). As a result, the insulator surface becomes positively charged (H⁺ uptake in acidic media) or negatively charged (H⁺ release in alkaline media). According to the pH value, the charge quantity on the insulator surface modulates the channel field‑effect between the source and drain. The control voltage between gate and source (U₍GS₎) is calculated based on the Nernst equation.
Product positioning:
High-end
Using scenario:
The Memosens CPS97E pH electrode eliminates the risk of glass breakage. It is especially suited for measuring media with high fibre content and suspensions containing solid particles, such as dispersions, precipitant solutions and emulsions. Featuring a breakage‑free non‑glass electrode shaft and an open‑aperture diaphragm, it delivers reliable measurements under demanding process conditions. Equipped with Memosens 2.0 digital technology, the CPS97E supports extended data memory to store calibration and process parameters for predictive maintenance. The moisture‑resistant electrode allows laboratory sensor calibration, enhances process integrity and reduces production downtime. Typical applications: chemical industry, contaminated media and solid‑particle suspensions, pulp and paper industry.
