Product name:

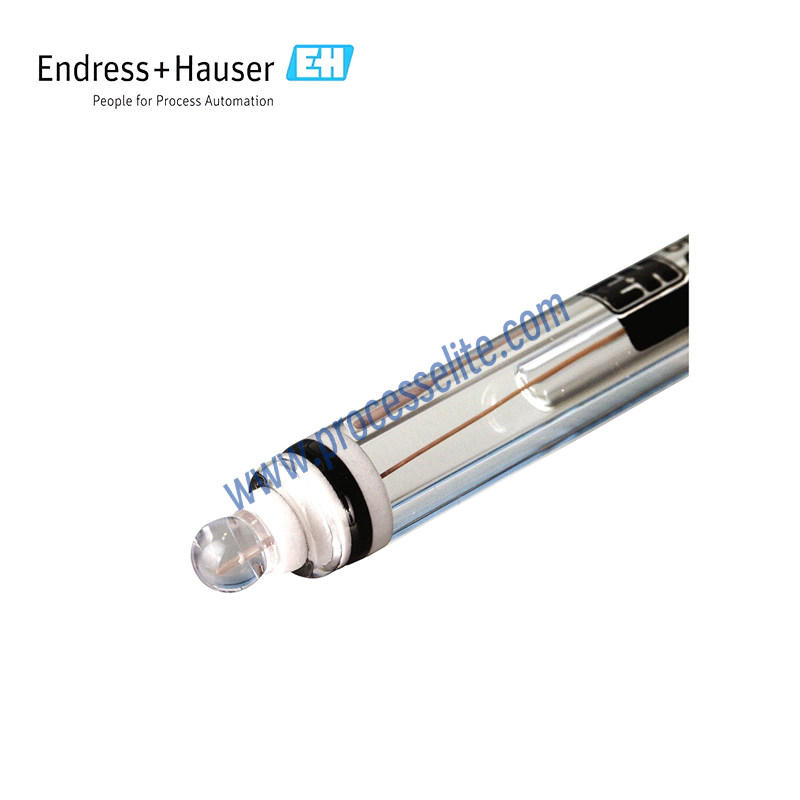

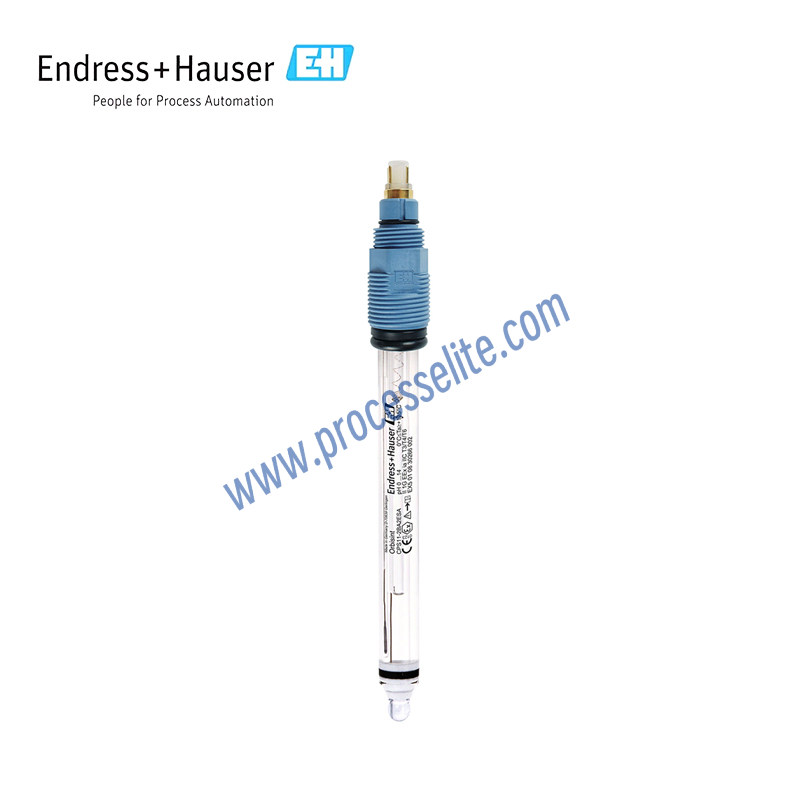

Analog pH Sensor
Product series:

CPS11

Product brand:
E+H/Endress+Hauser
Product feature:
• ATEX, FM and CSA approvals for use in explosive hazardous areas • Anti‑fouling PTFE annular diaphragm; robust electrode design with long toxic diffusion path and low maintenance requirements • Suitable for harsh process conditions: capable of measuring strongly alkaline media, with stable pressure up to 16 bar (232 psi) • Optional salt ring for low‑conductivity measurements, e.g. boiler feedwater and water for injection applications
Favorite
Compare
Measuring principle:
pH is the unit for measuring the acidity‑alkalinity of a medium. An electrochemical potential develops on the glass membrane of the electrode, and this potential depends on the pH value of the medium. Hydrogen‑ions (H⁺) accumulate selectively on the outer membrane, generating an electrochemical potential, i.e., an electrochemical boundary layer with a potential difference. The integrated Ag/AgCl reference system serves as the reference electrode. The measured voltage is converted into the corresponding pH value based on the Nernst equation.
Product positioning:
Standard
Using scenario:
The Orbisint CPS11 is an all‑round electrode for process and environmental engineering. It delivers reliable measurements even in highly concentrated alkaline solutions or within hazardous areas. Designed for low maintenance and long service life, the electrode reduces operating costs. Suitable for long‑term monitoring and limited monitoring under stable conditions: chemical industry, pulp & paper industry, power plants (e.g. flue‑gas scrubbers, boiler feedwater), incineration plants, water treatment.
