All >> Water analysis >> Analog pH Sensor
*Picture for reference only !
*Picture for reference only !
Product name:

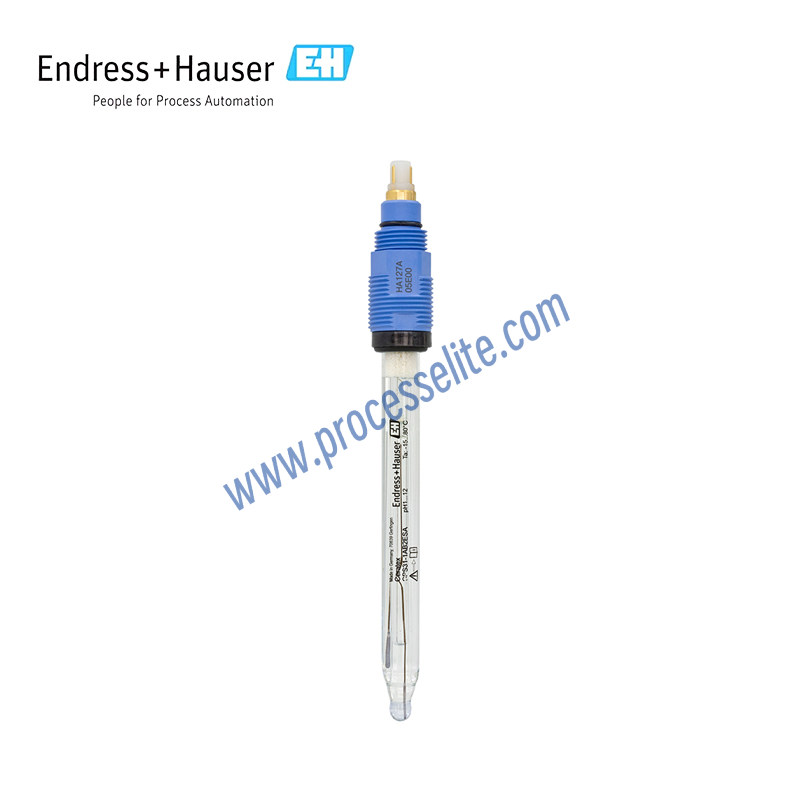

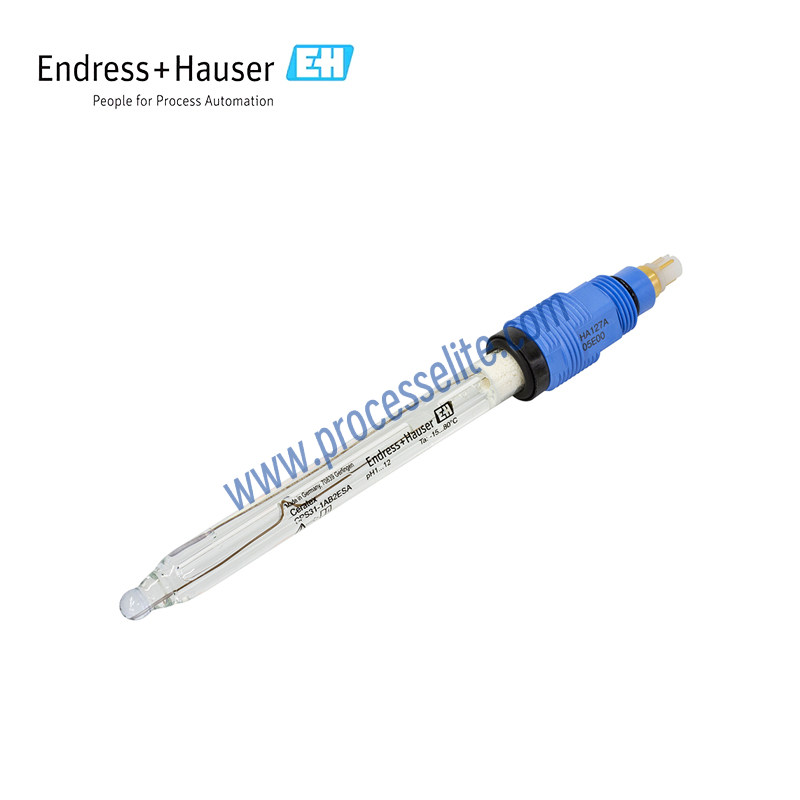

Analog pH Sensor
Product series:

CPS31

Product brand:
E+H/Endress+Hauser
Product feature:
• Triple‑diaphragm design ensures reliable measurement for media with the lowest conductivity • Low drift and extremely low ion consumption of electrolyte • Optional salt ring for extended service life
Favorite
Compare
Measuring principle:
pH is a measure of a medium’s acidity and alkalinity. An electrochemical potential is generated on the glass membrane of the electrode, and this potential depends on the pH value of the medium. H⁺ ions accumulate selectively on the outer membrane, producing an electrochemical potential, namely an electrochemical boundary layer with a potential difference. An integrated Ag/AgCl reference system serves as the reference electrode. The measured voltage is converted into the corresponding pH value based on the Nernst equation.
Product positioning:
Standard
Using scenario:
Ceratex CPS31 is a digital electrode specially designed for pH compensation in disinfection processes. Featuring three ceramic diaphragms, it is suitable for measuring media with minimum conductivity. It delivers low drift and ensures stable measurement, helping to meet water quality requirements for swimming pool water and drinking water standards. Typical applications: drinking water, swimming pool water, pH compensation for residual chlorine measurement.
