All >> Water analysis >> Analog pH Sensor
*Picture for reference only !
*Picture for reference only !
Product name:

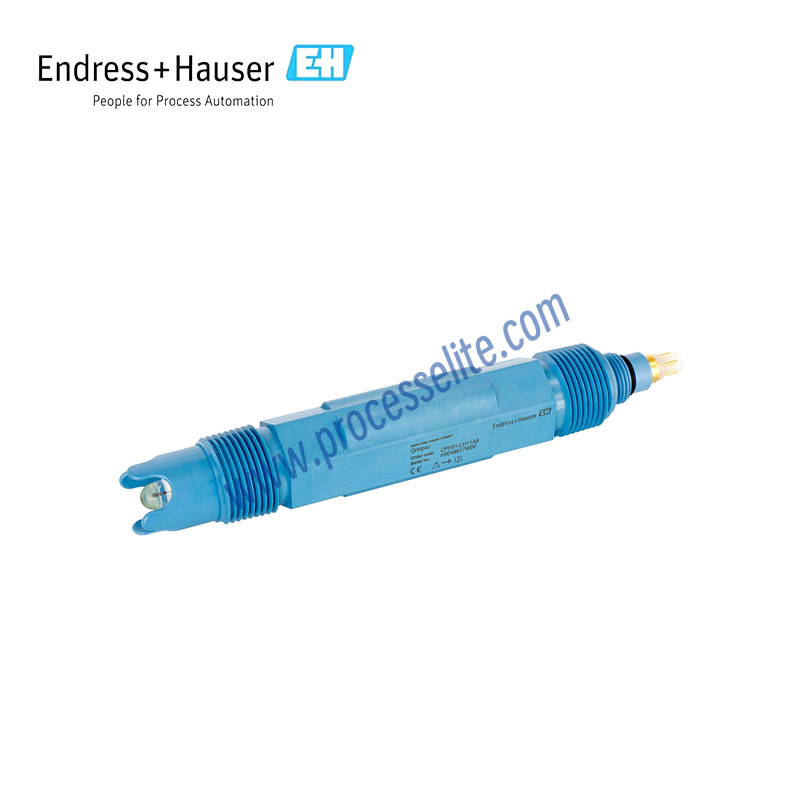

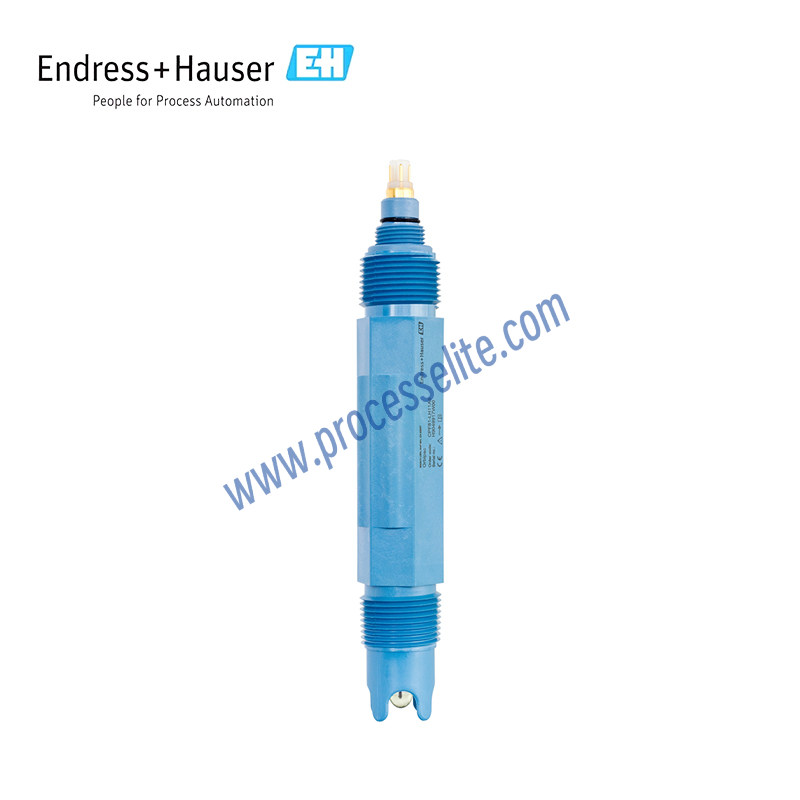

Analog pH Sensor
Product series:

CPF81

Product brand:
E+H/Endress+Hauser
Product feature:
• Suitable for flow‑through and immersion mounting • Long‑term stability: second electrolyte bridge provides enhanced protection against electrode poisoning, for example by S²⁻ or CN⁻ ions • Robust polymer housing protects against mechanical damage • Flat diaphragm suited for high‑flow conditions, fibrous media and mining applications
Favorite
Compare
Measuring principle:
pH is the unit for measuring the acidity‑alkalinity of a medium. An electrochemical potential develops on the glass membrane of the electrode, and this potential depends on the pH value of the medium. H⁺ ions accumulate selectively on the outer membrane, generating an electrochemical potential, i.e. an electrochemical boundary layer with a potential difference. An integrated Ag/AgCl reference system acts as the reference electrode. The measured voltage is converted into the corresponding pH value based on the Nernst equation.
Product positioning:
Standard
Using scenario:
The Orbipac CPF81 is an analog electrode, a simple solution for measurement under harsh process conditions. It delivers reliable and high‑accuracy measurements even for fibrous media and high‑flow applications. With an integrated mounting holder, it saves installation space and time for flow‑through or immersion mounting. The rugged Orbipac CPF81 pH electrode is designed for mining processes as well as water and wastewater treatment. It monitors: flotation, leaching, neutralisation, inlet and outlet points.
