All >> Water analysis >> Digital Combined pH/ORP Sensor

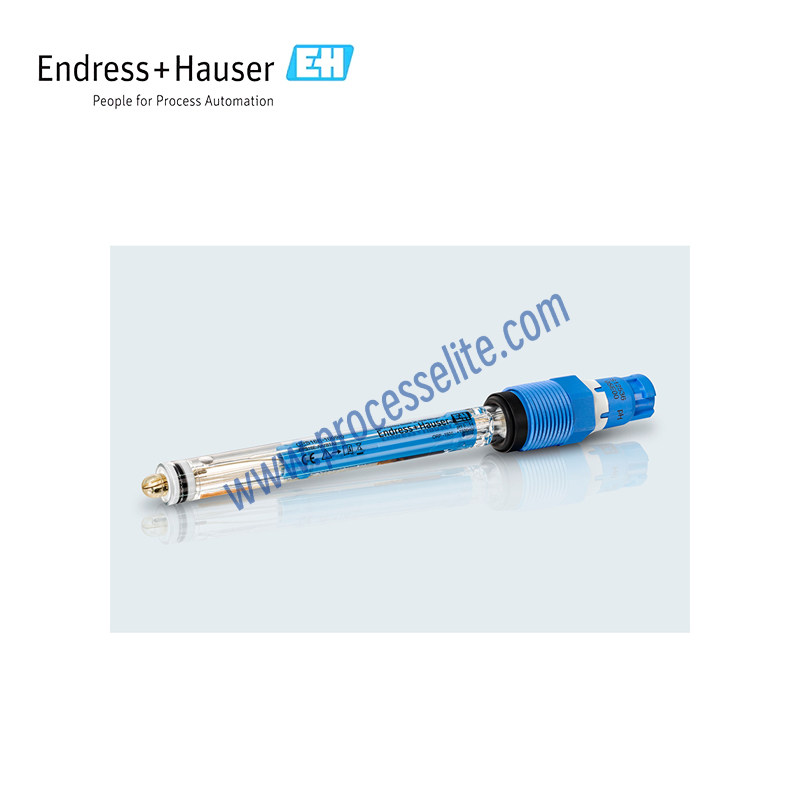

*Picture for reference only !

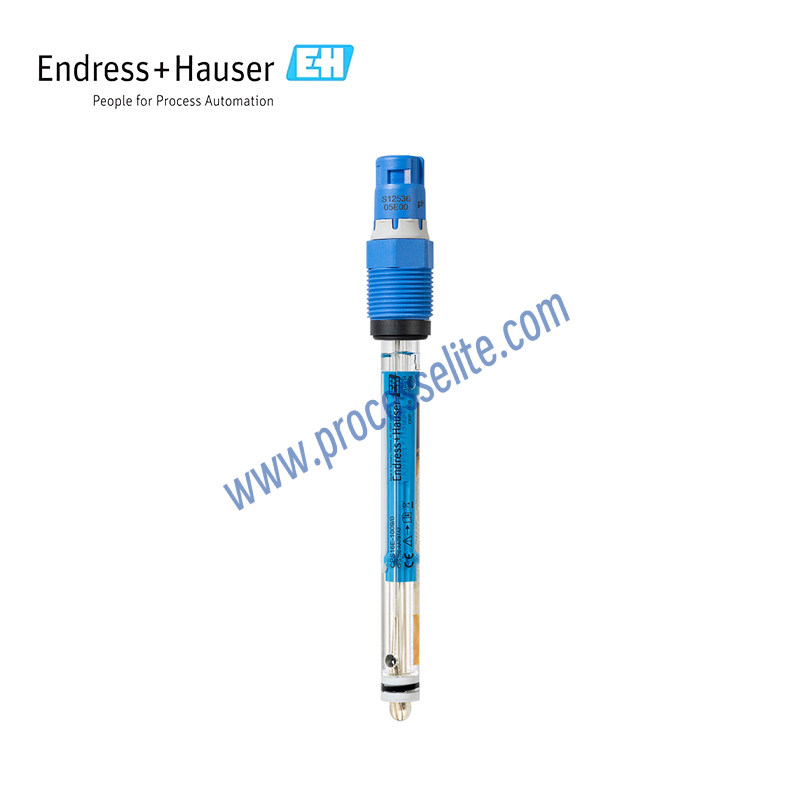

*Picture for reference only !
Product name:
Digital Combined pH/ORP Sensor
Product series:

CPS16E

Product brand:
E+H/Endress+Hauser
Product feature:
• Memosens 2.0 supports an extended memory unit to store calibration and process parameters for improved trend recognition, providing an ideal foundation for future predictive maintenance and enhanced IIoT services. • An additional platinum electrode continuously monitors reference impedance to reliably guarantee electrode quality. • Simultaneous measurement of pH, ORP and rH values (in rH mode) delivers comprehensive process information as a solid basis for stringent process control. • Robust construction with a large‑area annular PTFE diaphragm; the reference electrode incorporates an ion trap to effectively prevent electrode poisoning. • Suitable for demanding applications: process‑grade glass resists corrosion by strongly alkaline media, enabling stable measurement at pressures up to 17 bar (246 psi). • Reduced operating costs: laboratory calibration and fast on‑site sensor replacement minimise production downtime. Laboratory sensor regeneration extends the service life of the sensor. • Non‑contact digital signal transmission ensures consistently reliable measurement results and high process safety. • Approved for use in Ex Zones 0, 1 and 2 with ATEX, IECEx, CSA C/US, NEPSI, JPN and INMETRO certifications.
Favorite
Compare
Measuring principle:
pH is a measure of the acidity or alkalinity of a medium. An electrochemical potential develops at the glass membrane of the electrode, and this potential depends on the pH of the medium. Hydrogen ions (H⁺) accumulate selectively on the outer membrane, generating an electrochemical potential, namely an electrochemical boundary layer with a potential difference. The integrated Ag/AgCl reference system acts as the reference electrode. The measured voltage is converted into the corresponding pH value based on the Nernst equation. ORP is a measure of the redox capability of a medium. ORP measurement is performed using platinum or gold electrodes. Similar to pH measurement, the integrated Ag/AgCl reference system serves as the reference electrode. The rH value is defined as the negative logarithm of the hydrogen partial pressure in a solution. Both the pH and ORP values of the solution must be measured to calculate the rH value. The formula for rH calculation is shown below: rH = 2 × (mV/S) + 2pH
Product positioning:
High‑end
Using scenario:
The Memosens CPS16E enables simultaneous pH and ORP measurement and is designed for stable process conditions. Integrated with both pH and ORP measuring elements, the electrode delivers comprehensive process information as a solid foundation for stringent process control. Equipped with Memosens 2.0 digital technology, the Memosens CPS16E supports extended data memory for predictive maintenance and IIoT applications. Unaffected by humid environments, this pH/ORP electrode allows laboratory calibration, simplifies routine operations and achieves higher process integrity. Long‑term process monitoring or limit monitoring under stable operating conditions: chemical industry, pulp and paper industry, power plants (e.g. flue‑gas scrubbing), waste incineration plants, mining industry, wastewater industry, water treatment.
