All >> Flow Measurement >> Insertion Thermal Mass Flowmeter

*Picture for reference only !

Product name:

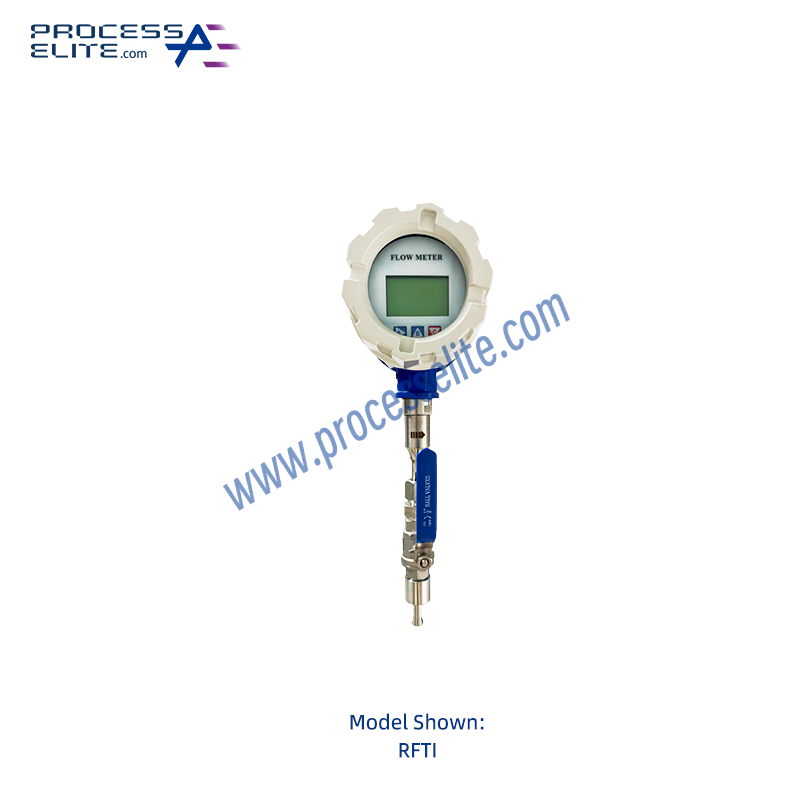

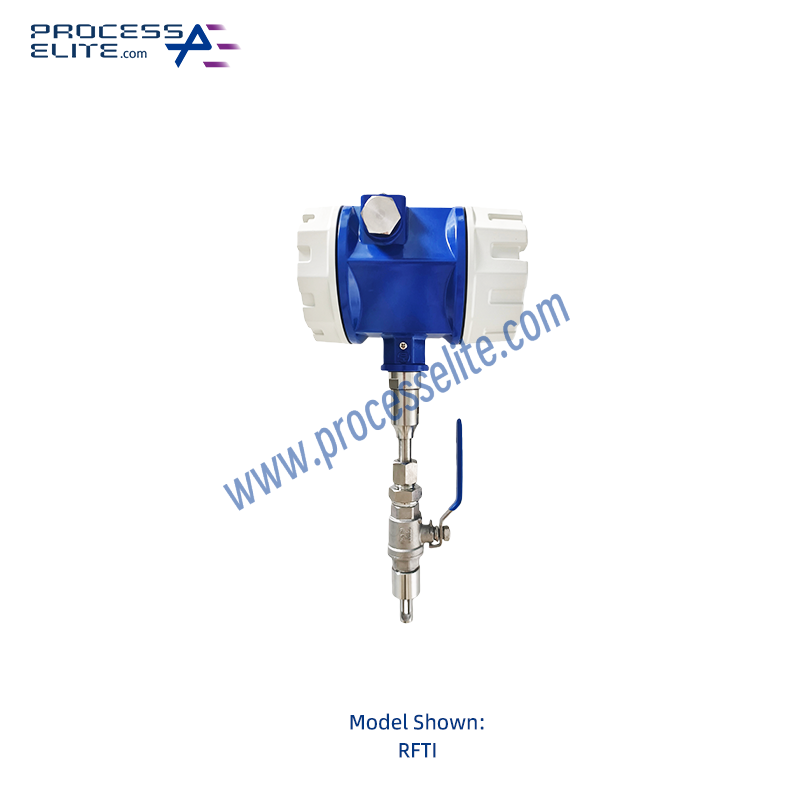

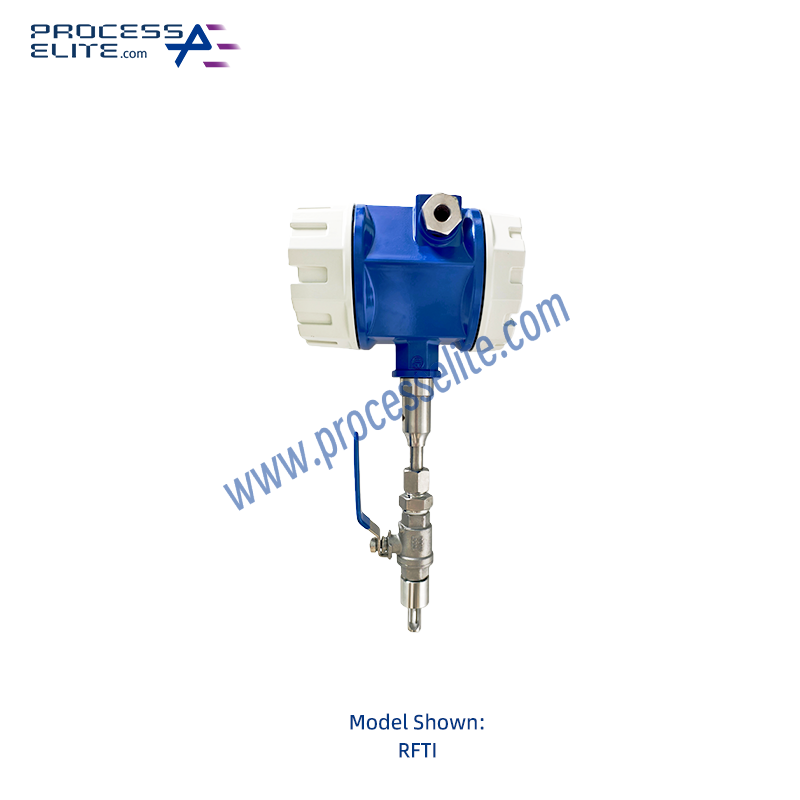

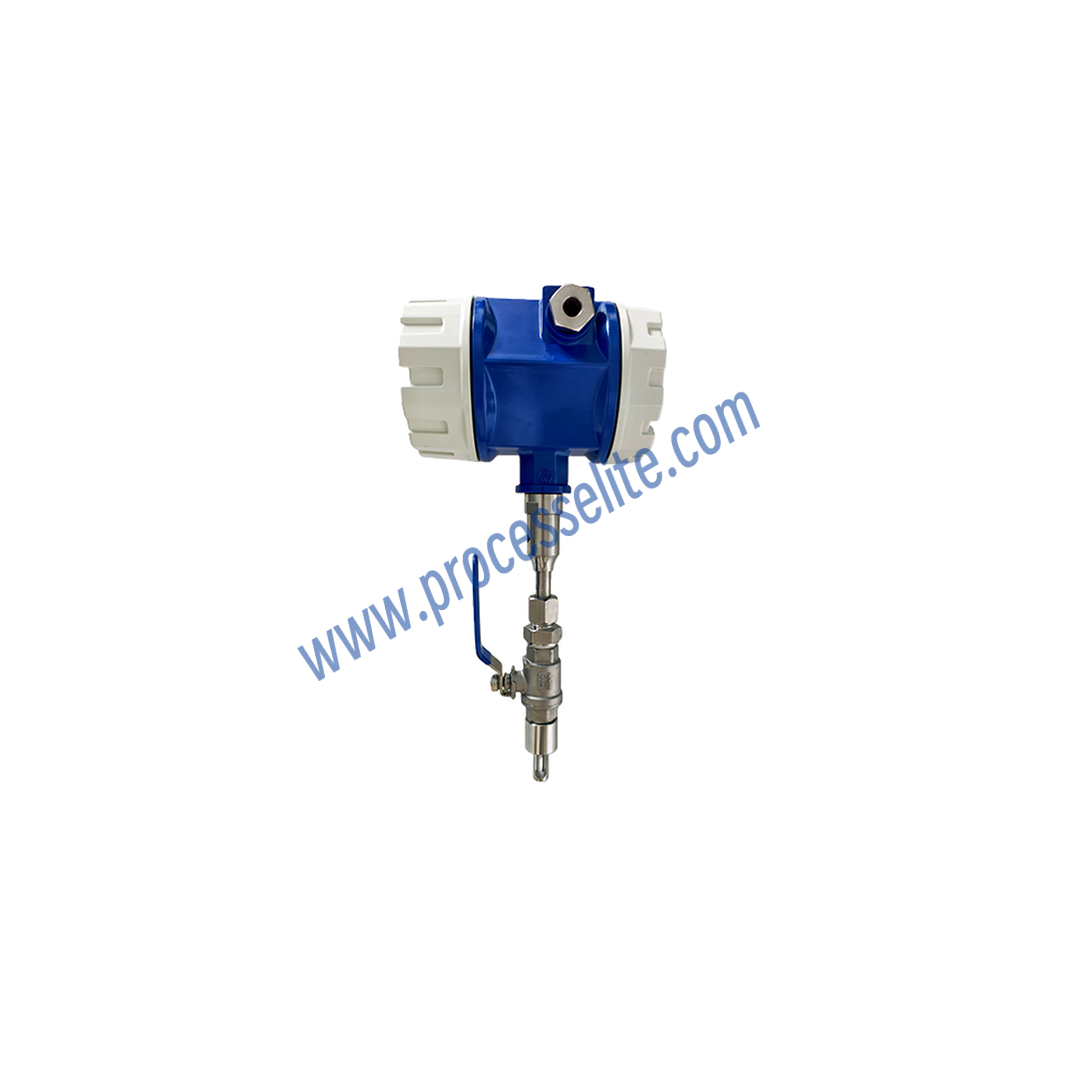

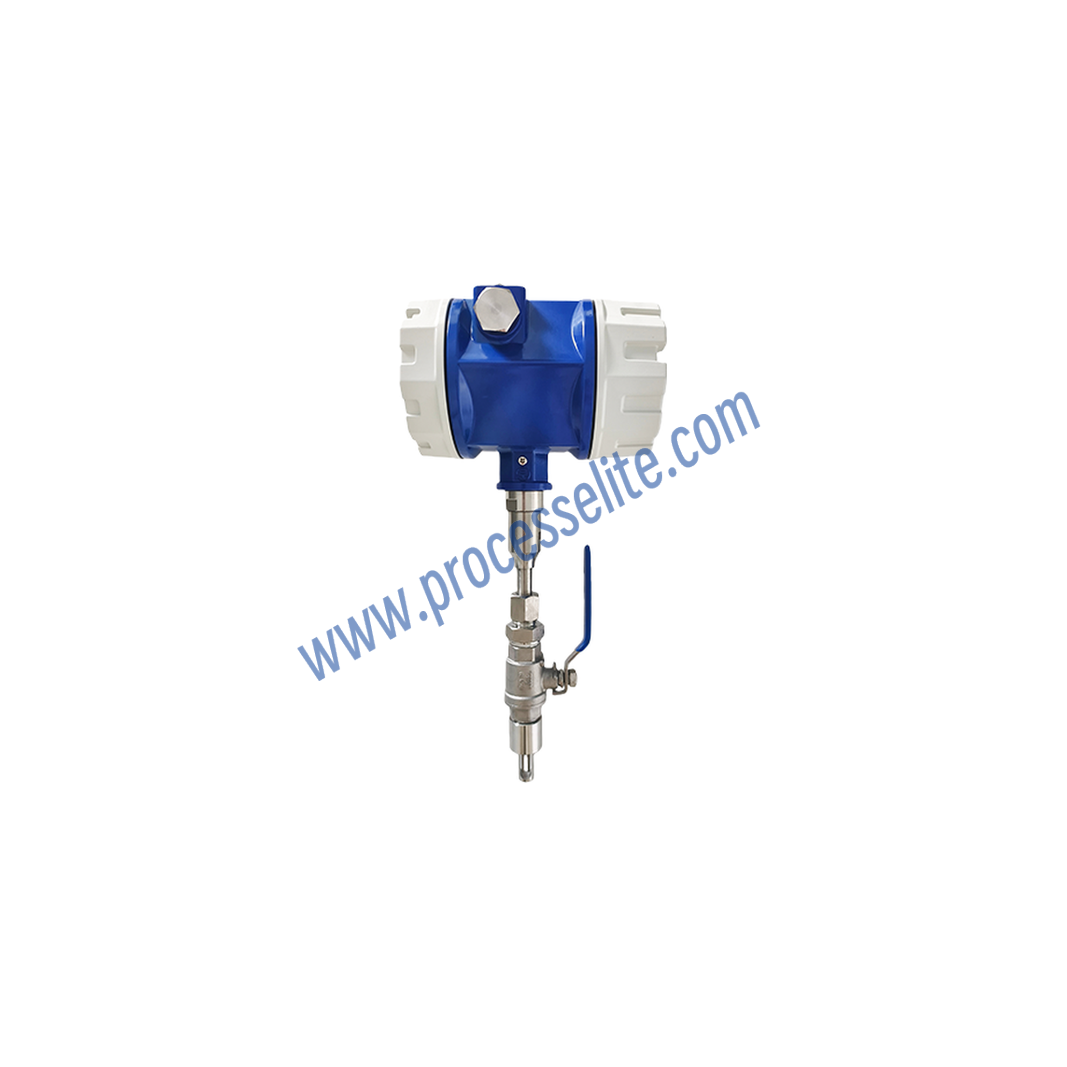

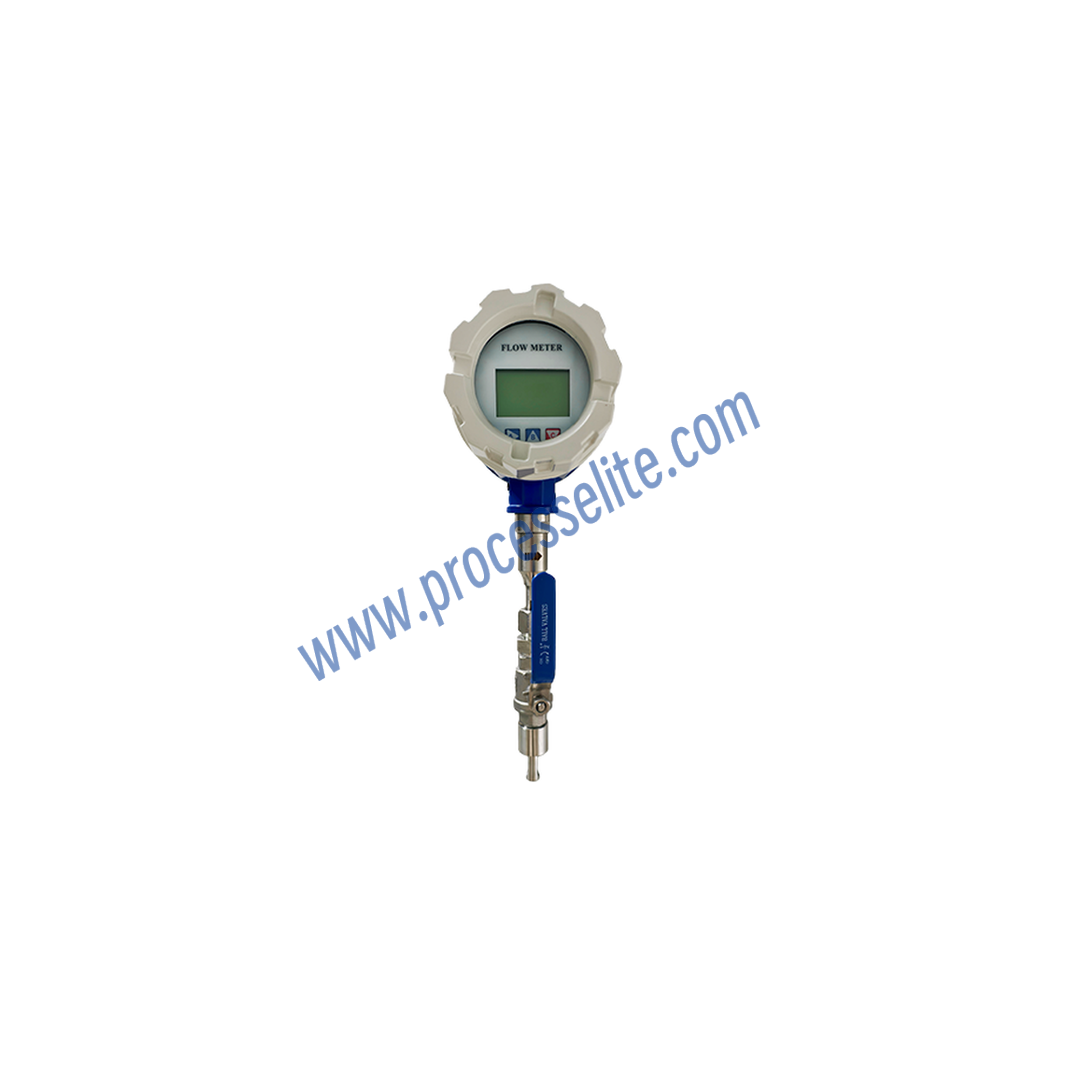

Insertion Thermal Mass Flowmeter

Product series:

RFTI

Product brand:

PE/PE

Product feature:

Insertion Thermal Mass Flowmeter are classified into insertion type and in-line type by structural form. Featuring simple construction, low pressure drop and convenient maintenance, they deliver stable measurement accuracy, dependable operation and long service life with precision manufacturing workmanship.

Favorite

Compare

Configure

Measuring principle:

Insertion Thermal Mass Flowmeter works on the thermal diffusion principle. Its sensor is equipped with two platinum RTDs. When immersed in process fluid, one RTD is heated and the other measures fluid temperature. The temperature difference between the two elements is associated with flow velocity and fluid characteristics. Two measurement modes are available: constant temperature differential mode and constant power mode.

Product positioning:

Standard

Using scenario:

安装方式：

插入式

接液材质：

316(L)

精度(标况)：

±1.5% o.r.

过程连接：

最大过程压力：

≤40bar

最高过程温度：

通讯方式：

4-20mA

4-20mA HART

供电电源：

24VDC

220VAC

防爆型式：

非防爆

Ex d

防护等级：

IP67

外壳材质：

铝/铸铝

All

Instruction

Operation

2D/3D

Certificate

Summary

Thermal Mass Flow Meter RFT
