Product name:

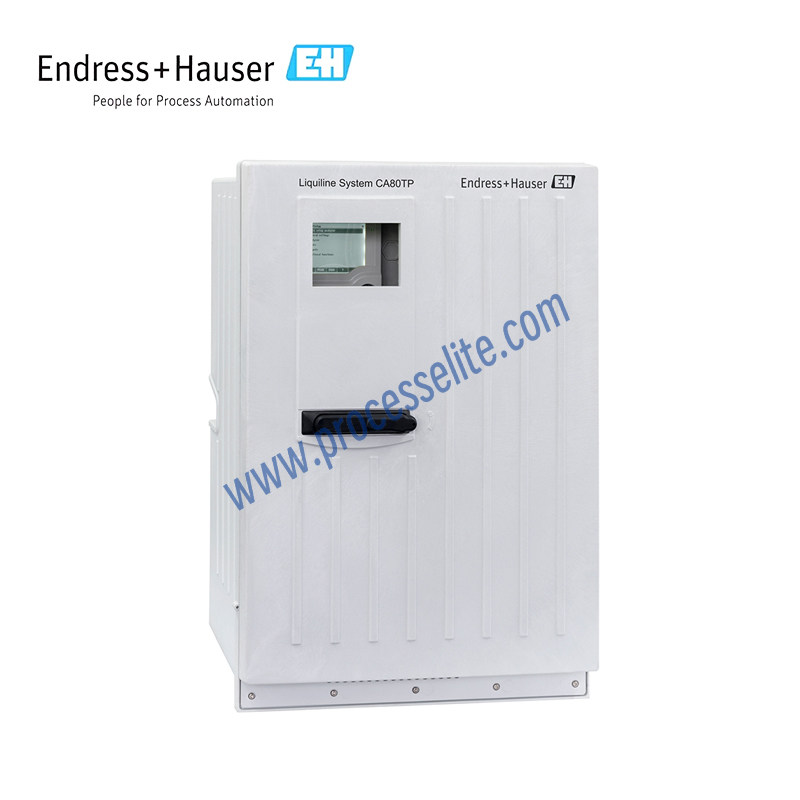

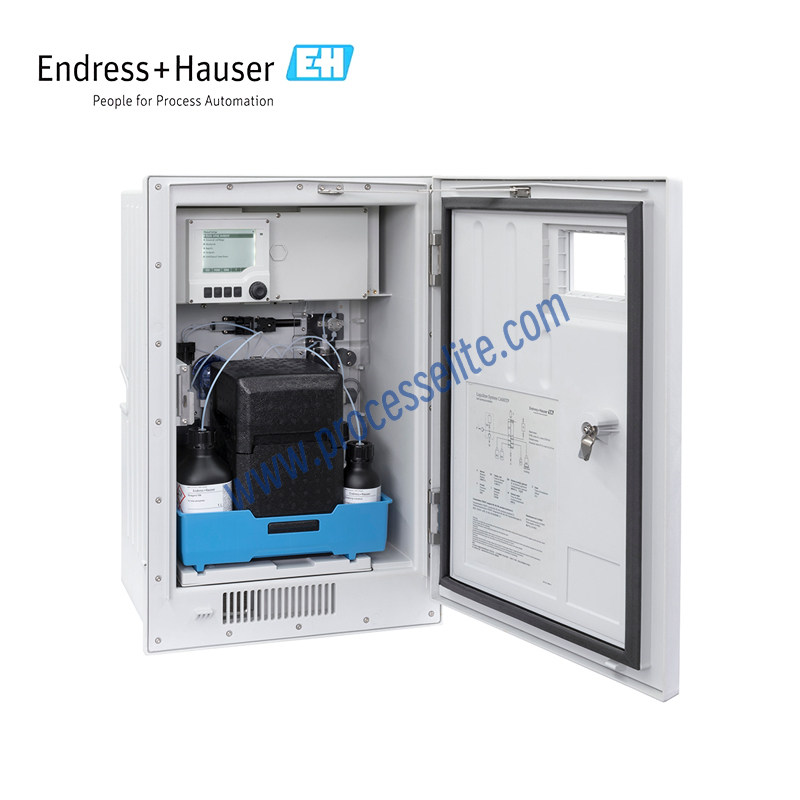

TP analyzer Liquiline System
Product series:

CA80TP

Product brand:
E+H/Endress+Hauser
Product feature:
• Molybdenum blue method according to EN ISO 6878:2004 for direct comparability with laboratory results • Fast process integration with direct installation or Y-strainer bypass configuration • High-level safety with software-controlled reactor cover, heated-part protection, and safety light barrier to prevent reagent and sample overdosing • Reliable sample handling and high-precision dosing with particle-tolerant peristaltic pumps and light barriers • Extended reagent lifetime with optional cooling module • Easy upgrade to a complete measuring station with modules and Memosens sensors • Remote process data transfer to Netilion via Liquiline Edge Module CYY7, enabling remote monitoring and IIoT services
Favorite
Compare
Measuring principle:
Colorimetric measurement is based on a chemical reaction between the sample and specific reagents. After sample conditioning, part of the filtered sample is pumped into a mixing or reaction chamber, where digestion reagents are added at high temperature. A color reagent is then precisely dosed at a defined ratio, producing a characteristic color. A full-spectrum photometer measures the absorbance at selected wavelengths, which is proportional to the concentration of the target parameter. A reference measurement compensates for interference, while constant photometer temperature ensures stable and reproducible results.
Product positioning:
Standard
Using scenario:
Liquiline System TP is a high-precision online total phosphorus analyzer for continuous monitoring and reliable process control. Automatic calibration and cleaning reduce operating costs, while advanced diagnostics and remote access support process documentation and regulatory compliance. Suitable for: • Total phosphorus monitoring at wastewater treatment plant influent and effluent • Treatment performance evaluation and data archiving • Industrial wastewater discharge monitoring and discharge fee assessment • Process water monitoring
