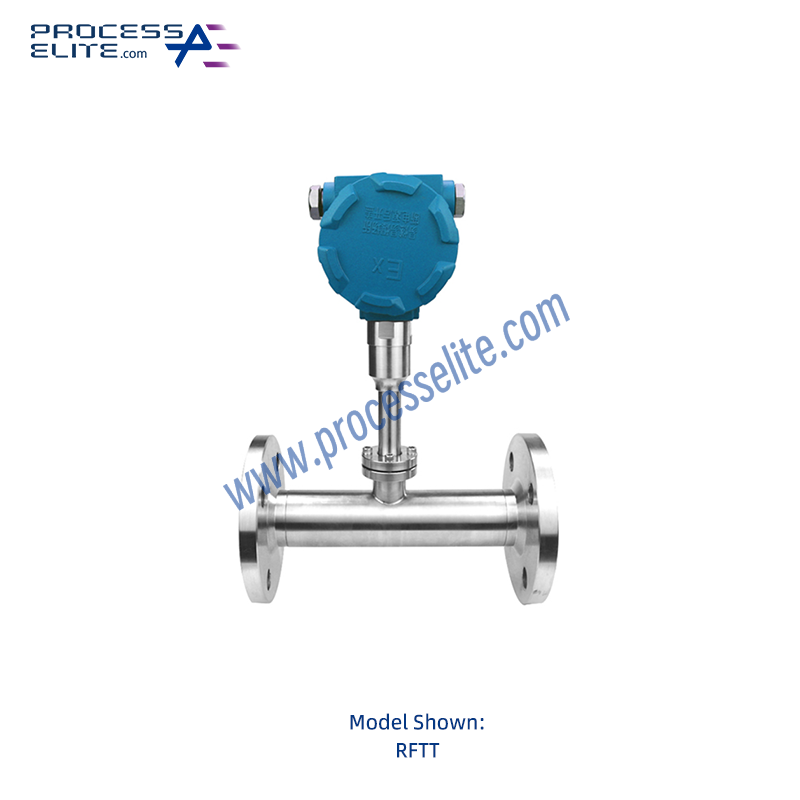

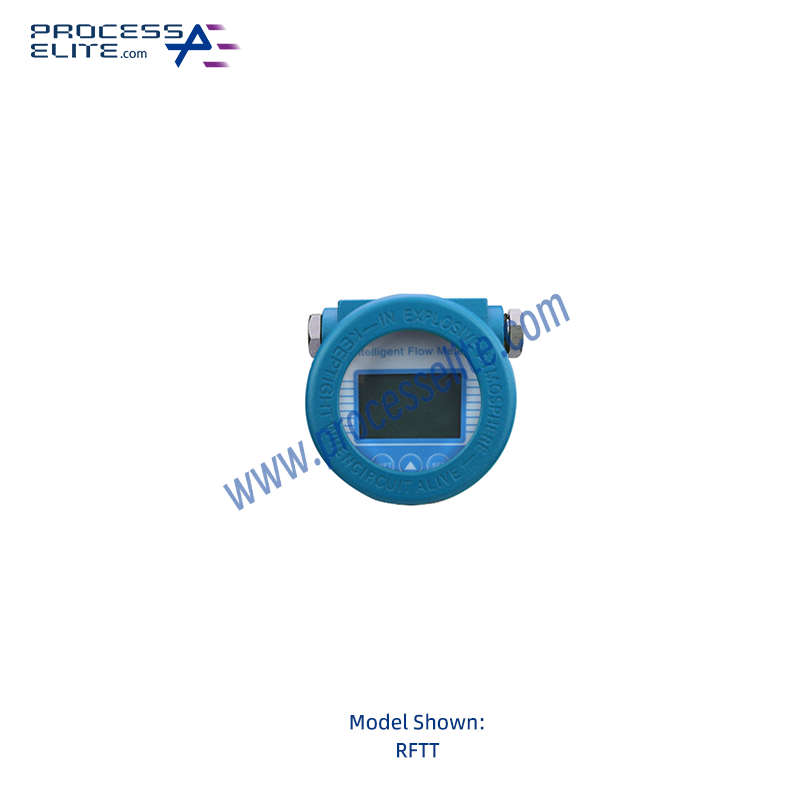

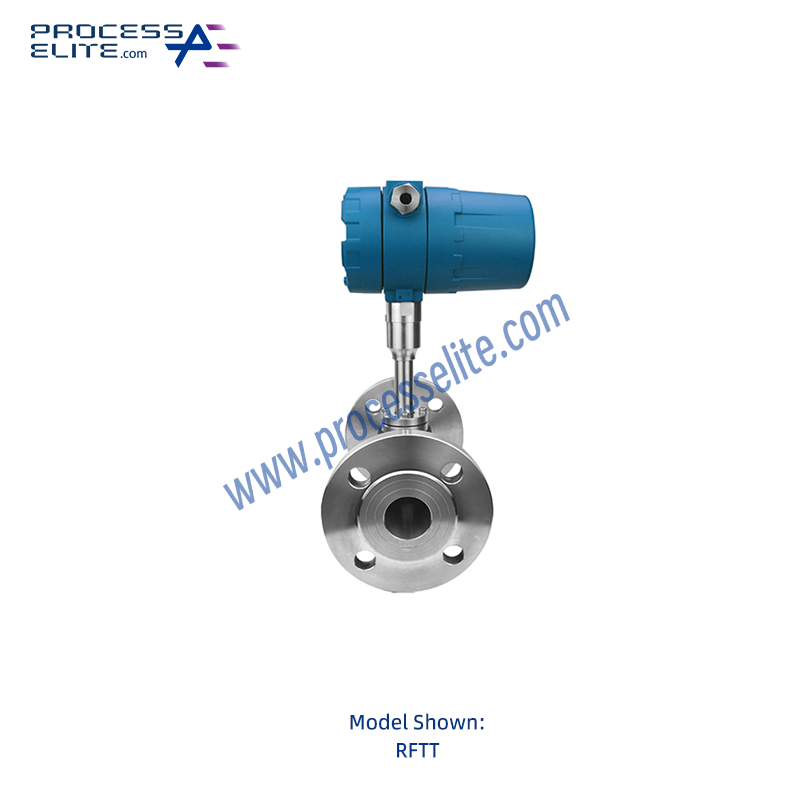

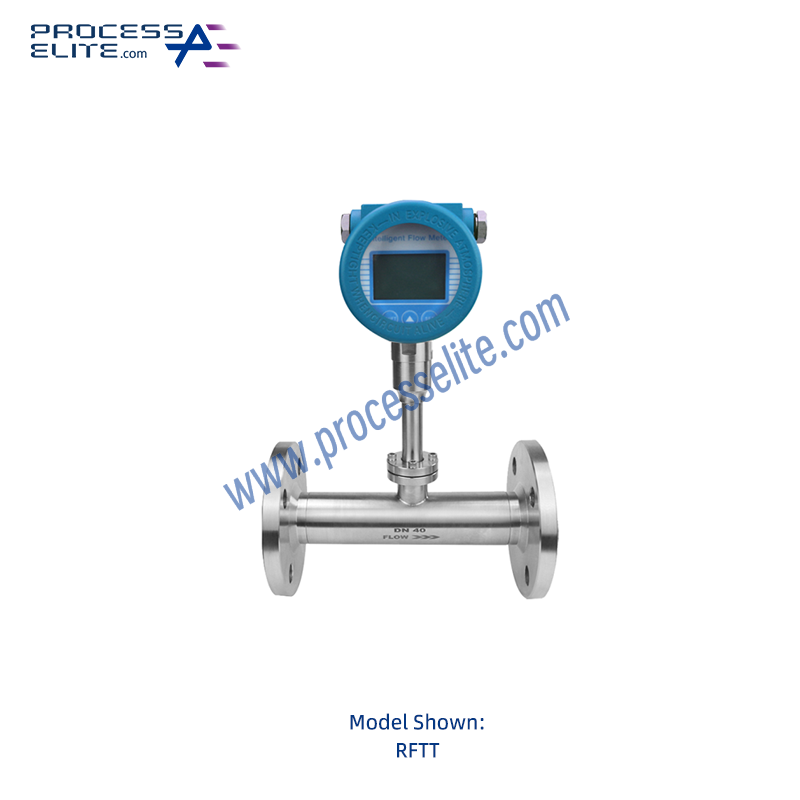

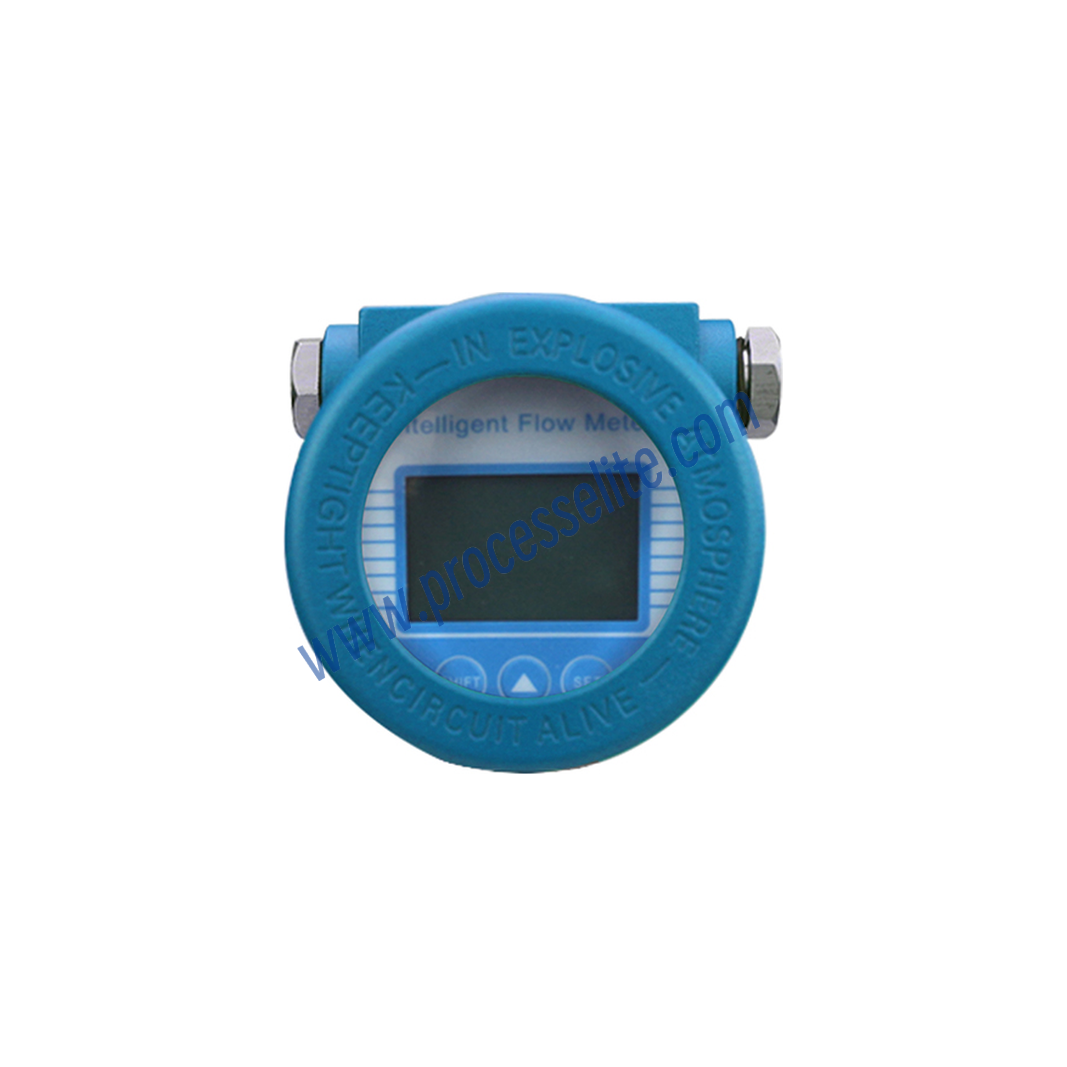

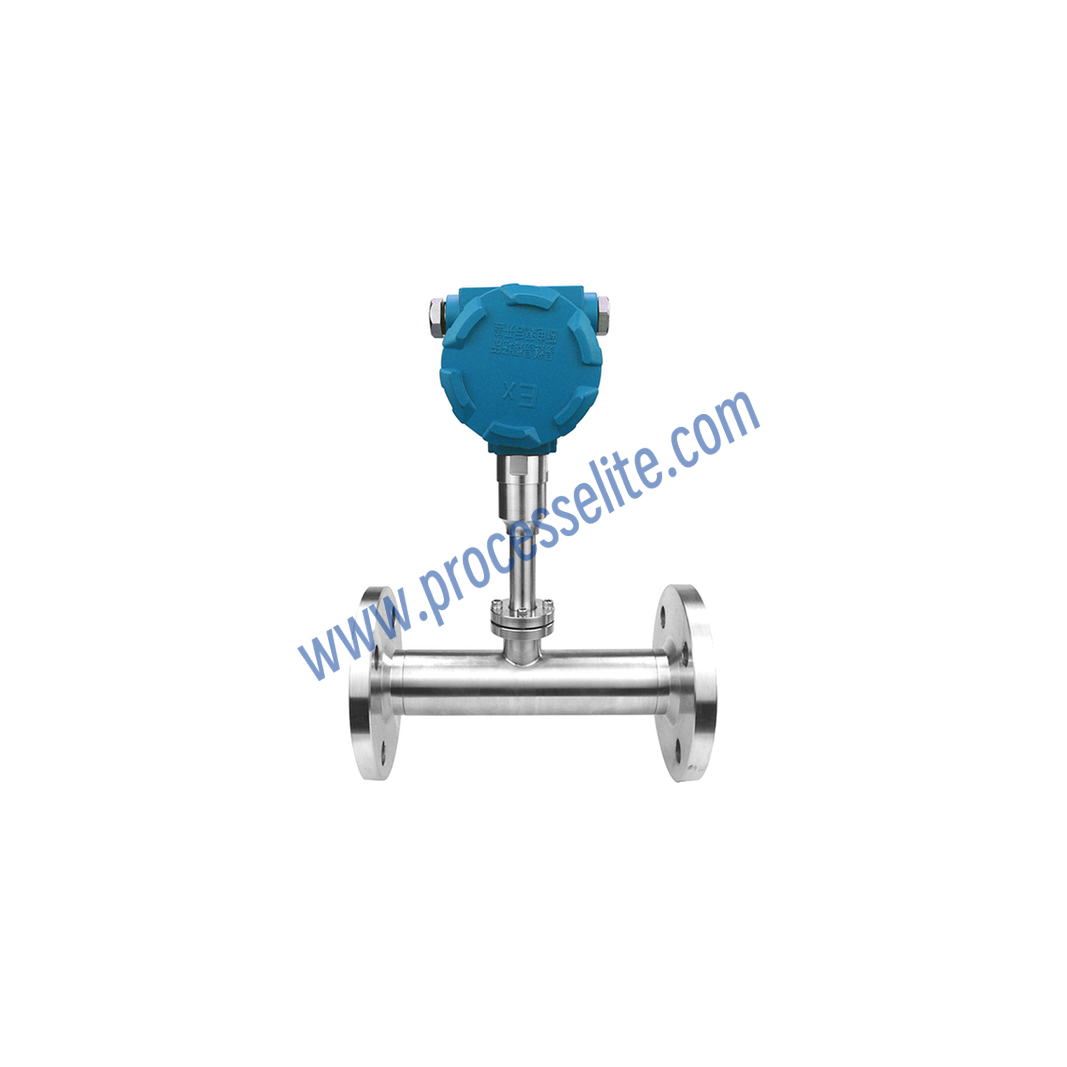

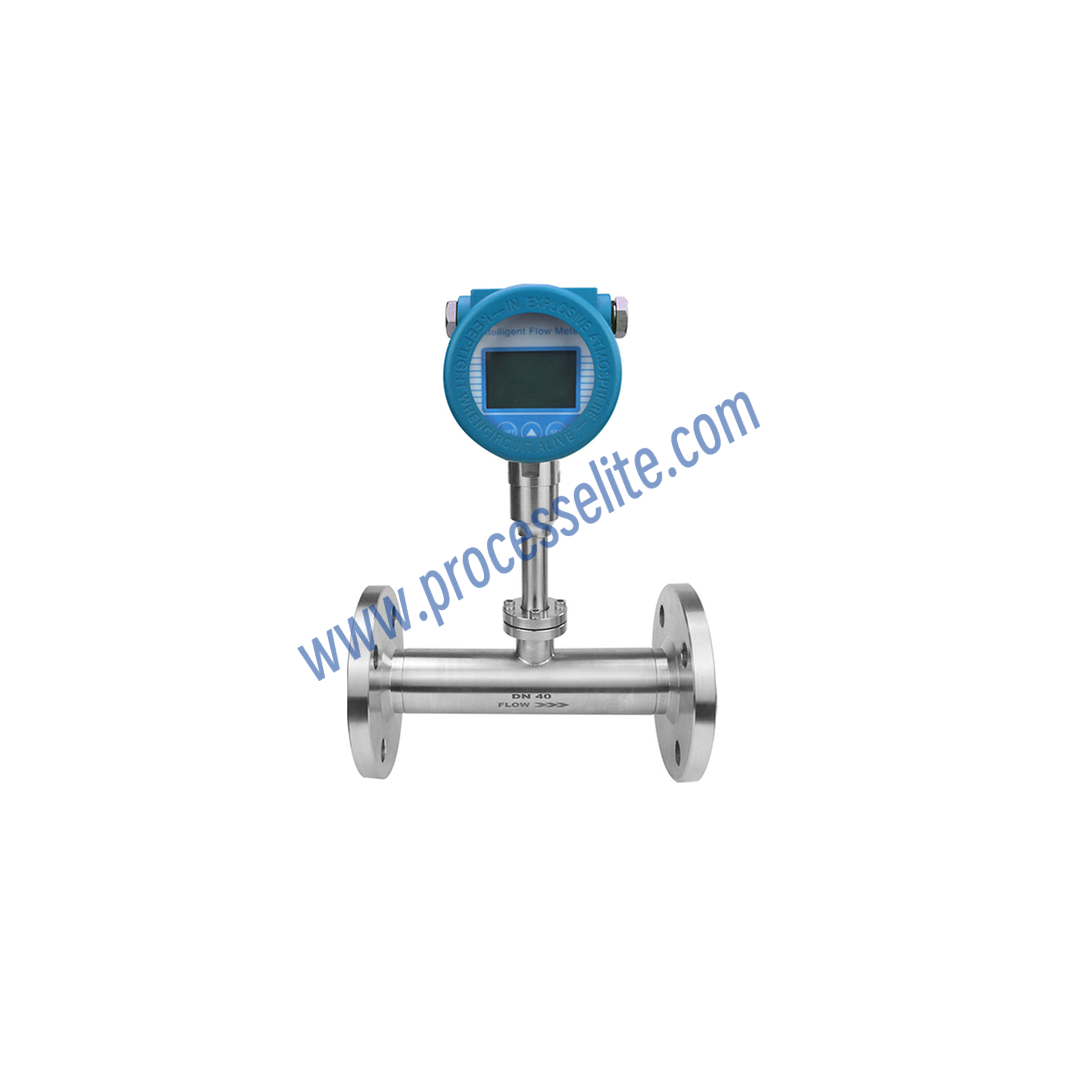

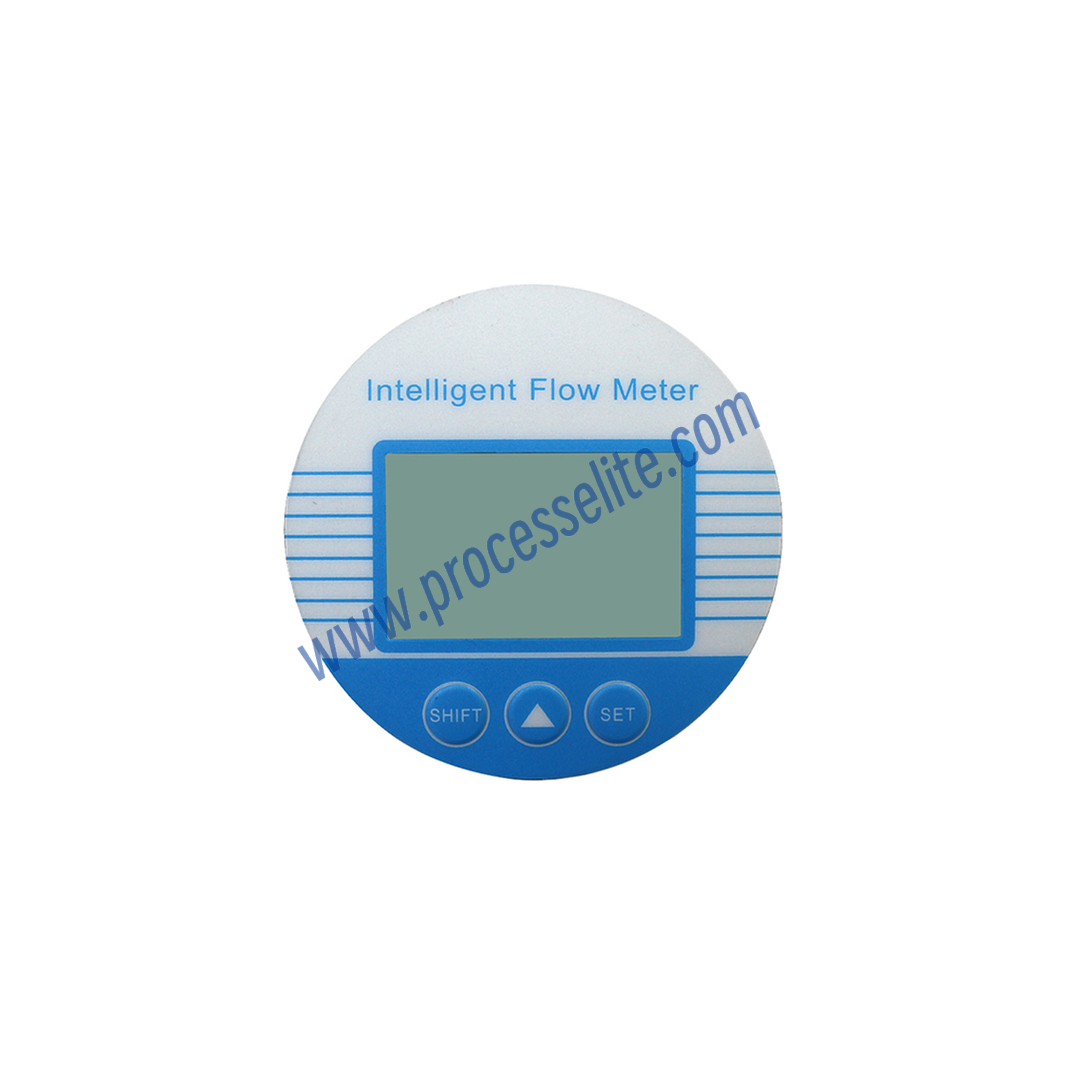

RFTT Inline Thermal Mass Flowmeter - Processelite

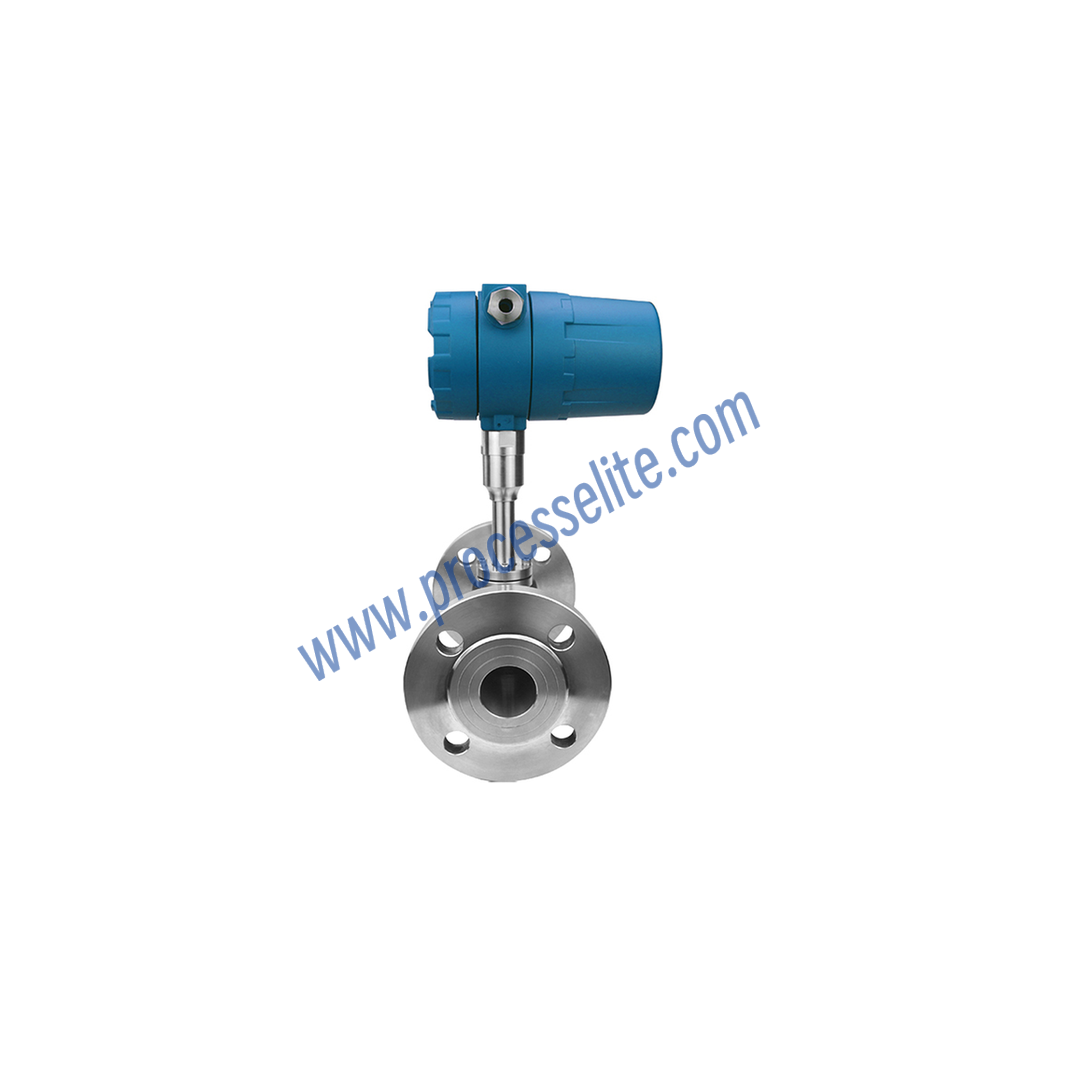

*Picture for reference only !

Product name:

Inline Thermal Mass Flowmeter

Product series:

RFTT

Product brand:

PE/PE

Product feature:

Inline and insertion thermal mass flowmeters feature simple structure, low pressure drop and effortless maintenance. Precision machining ensures high measurement accuracy, stable performance and long service life.

Favorite

Compare

Configure

Measuring principle:

Inline Thermal Mass Flowmeters operate via the thermal diffusion principle. The sensor is composed of two platinum RTDs immersed in process fluid; one is heated while the other senses fluid temperature. The temperature differential between the two RTDs depends on flow velocity and fluid properties, with two measurement modes: constant temperature differential and constant power.

Product positioning:

Standard

Using scenario:

Mounting type:

In-line (pipe) type

Wetted material:

316(L)

Accuracy (Standard conditions ):

±1.5% o.r.

Process connection:

Carbon steel flange

Max. process pressure:

≤40bar

Max. process temperature:

Communication:

4-20mA

4-20mA HART

Power supply:

24VDC

220VAC

Explosion-proof type:

Non-explosion-proof

Ex d

Protection class:

IP67

Housing material:

Aluminium / cast aluminium
