OUSAF44

Absorbance measurement is based on the Lambert-Beer law, where absorbance is linearly proportional to the concentration of the absorbing substance. A light source passes through the process medium, while a detector measures the transmitted light. A beam splitter provides separate measurement and reference beams, with the reference compensating for particles, air bubbles, and light source aging. A filter selects the required wavelength, and a photodiode converts the detected light intensity into a photocurrent. The transmitter then converts the signal into absorbance units (AU or OD).

Standard

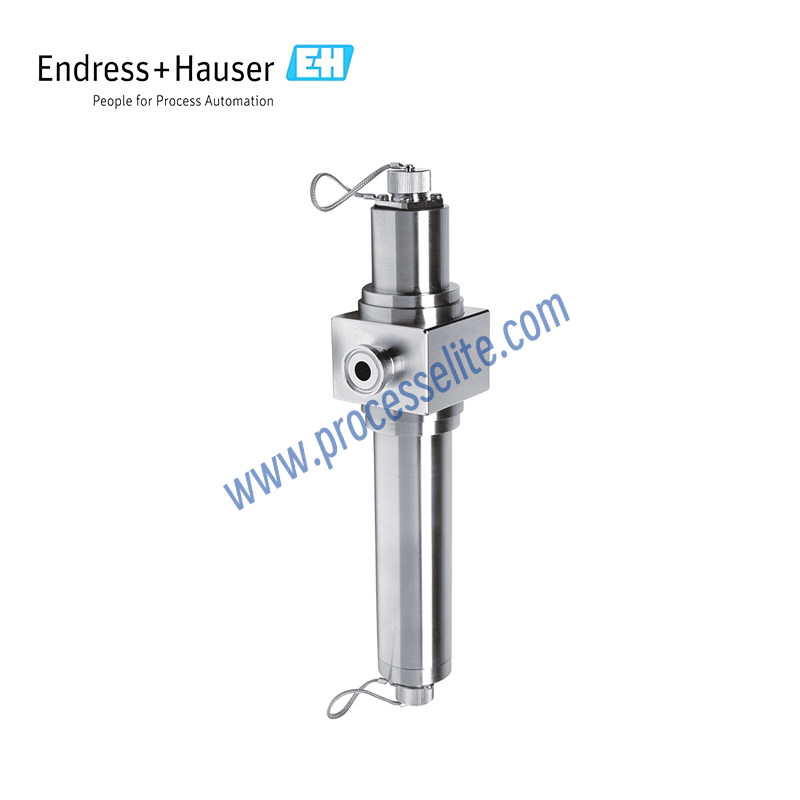

OUSAF44 is a UV absorption sensor for monitoring product concentration in process media. Its excellent filter performance ensures high linearity and consistent correlation with laboratory results, providing fast and reliable process information to improve product yield. The patented Easycal™ system enables NIST-traceable, liquid-free online calibration. OUSAF44 is approved for hazardous areas (ATEX/FM) and suitable for hygienic processes with CIP/SIP cleaning. Suitable for: • Protein concentration measurement • Chromatography process control • Permeate and retentate monitoring • Organic compound concentration measurement • Aromatic hydrocarbon detection • Filter monitoring
