All >> Pressure measurement >> Gauge pressure Cerabar PMC11

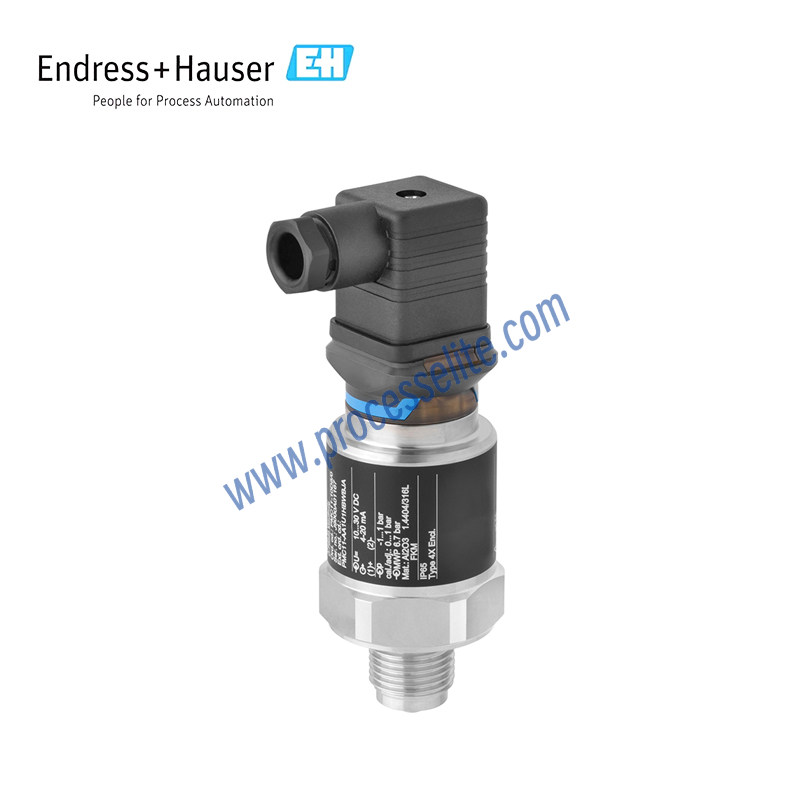

*Picture for reference only !

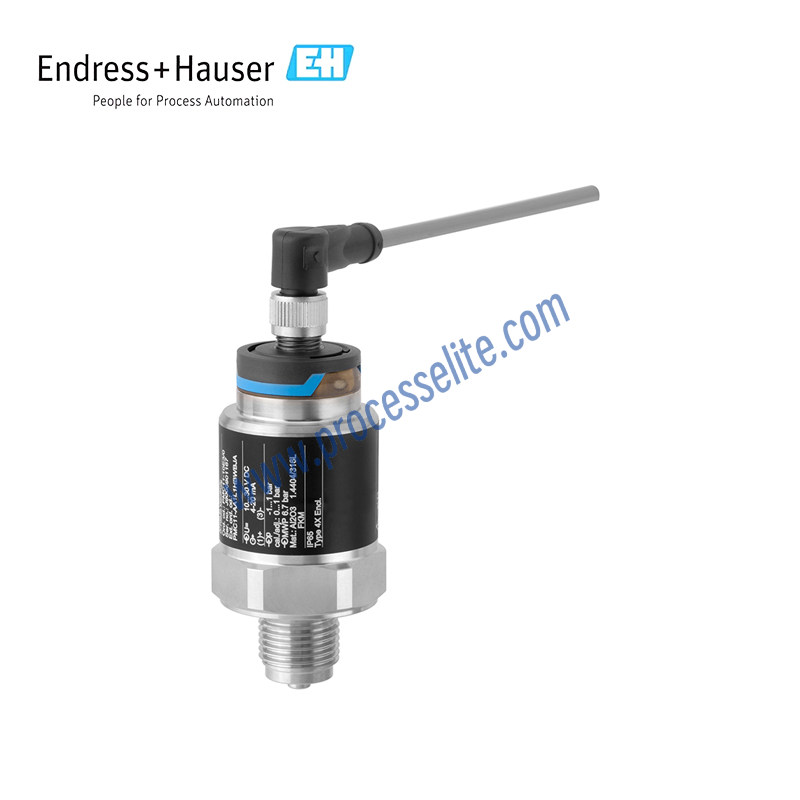

*Picture for reference only !
Product name:
Gauge pressure Cerabar PMC11
Product series:

PMC11

Product brand:
E+H/Endress+Hauser
Product feature:
• Process connections: Threads • Process temperature: -25 to +85 °C (-13 to +185 °F) • Process pressure: 400 mbar to +40 bar (6 to 600 psi) • Accuracy: ±0.5% of span • Easy and time-saving installation and setup within the plant due to its very compact design and customizable measuring ranges • Reference accuracy of 0.5% combined with excellent long-term stability and repeatability ensures high-quality process monitoring in standard applications • Capacitive oil-free measuring cell with high abrasion resistance and 100% production testing coverage ensures long process availability
Favorite
Compare
Measuring principle:
Pressure transmitter measurement is primarily based on the deformation characteristics of the diaphragm. When the process pressure changes, the fill fluid transfers the pressure to the Wheatstone resistance bridge, converting the deformation of the sensing element into an electrical signal. The electrical signal is transmitted through wires to the amplifier for amplification and signal processing, and is finally converted into a standard output signal (typically 4–20 mA) for communication with the control system.
Product positioning:
Foundamental
Using scenario:
The Cerabar PMC11 is a cost-effective compact pressure transmitter. It features a capacitive, oil-free ceramic diaphragm sensor and supports gauge pressure measurement ranges from 400 mbar to 40 bar. The PMC11 is designed for standard process industry applications and uses high-quality materials, such as 316L stainless steel and 99.9% Al₂O₃ ceramic, to meet the requirements of various operating conditions.
