All >> Pressure measurement >> Absolute and gauge pressure Cerabar PMC21

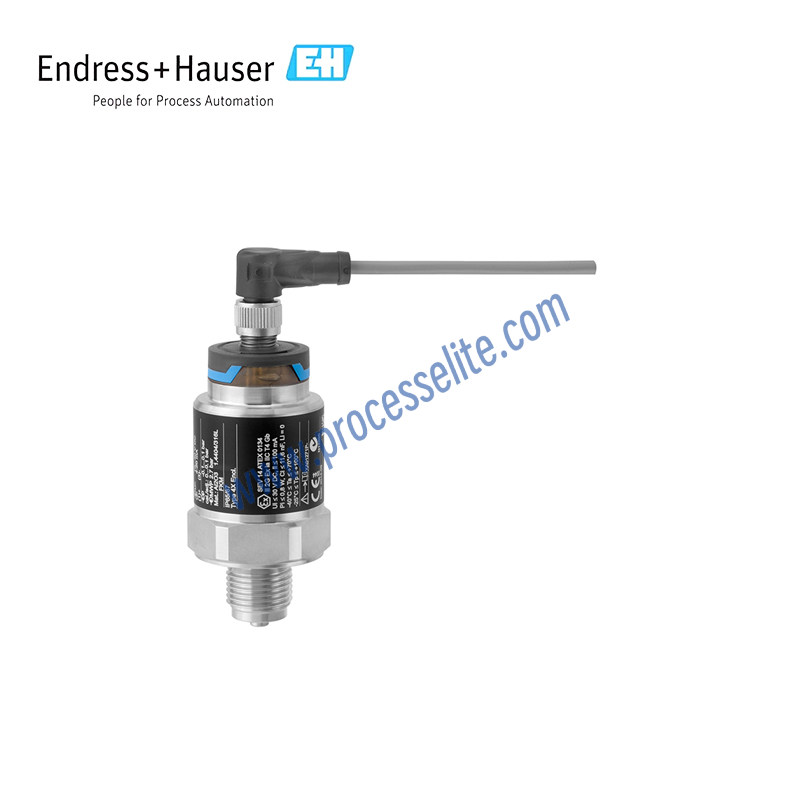

*Picture for reference only !
Product name:
Absolute and gauge pressure Cerabar PMC21
Product series:

PMC21

Product brand:
E+H/Endress+Hauser
Product feature:
• Easy and time-saving installation and setup within the plant due to its very compact design and customizable measuring ranges • High reference accuracy of 0.3% combined with excellent long-term stability and repeatability ensures high-quality process monitoring. 100% production testing guarantees consistent product quality • High process availability even in demanding environments is ensured through various cleaning options, connection options, and optional IP68 ingress protection versions • The PMC21 supports plant documentation, traceability, and safety requirements by complying with various hazardous area and marine certifications, with optional EN 10204 3.1 material certificates available
Favorite
Compare
Measuring principle:
Pressure transmitter measurement is primarily based on the deformation characteristics of the diaphragm. When the process pressure changes, the fill fluid transfers the pressure to the Wheatstone resistance bridge, converting the deformation of the sensing element into an electrical signal. The electrical signal is transmitted through wires to the amplifier for amplification and signal processing, and is finally converted into a standard output signal (typically 4–20 mA) for communication with the control system.
Product positioning:
Foundamental
Using scenario:
The Cerabar PMC21 is a compact pressure transmitter. It features a non-oil-filled capacitive ceramic diaphragm sensor for absolute and gauge pressure measurement, with measuring ranges from 100 mbar to 40 bar. The transmitter is designed for demanding process industry applications, offering a maximum ingress protection rating of IP68, a highly wear-resistant Ceraphire ceramic diaphragm, and a high-quality 316L stainless steel housing. With multiple certifications, including explosion protection and marine approvals, the PMC21 meets the requirements of a wide range of pressure measurement applications.
