All >> Pressure measurement >> Absolute and gauge pressure Cerabar PMP21

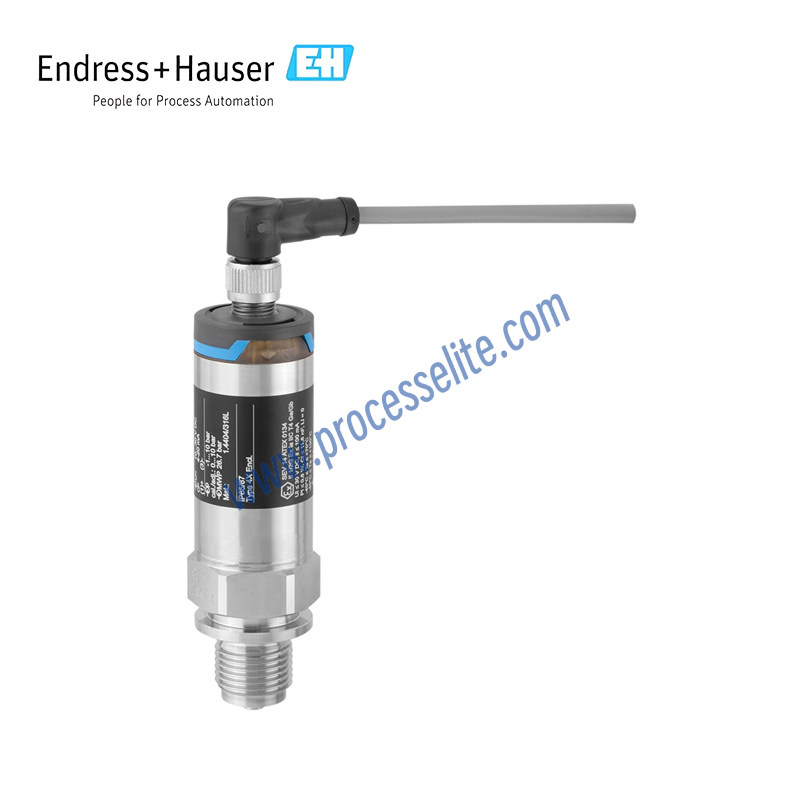

*Picture for reference only !

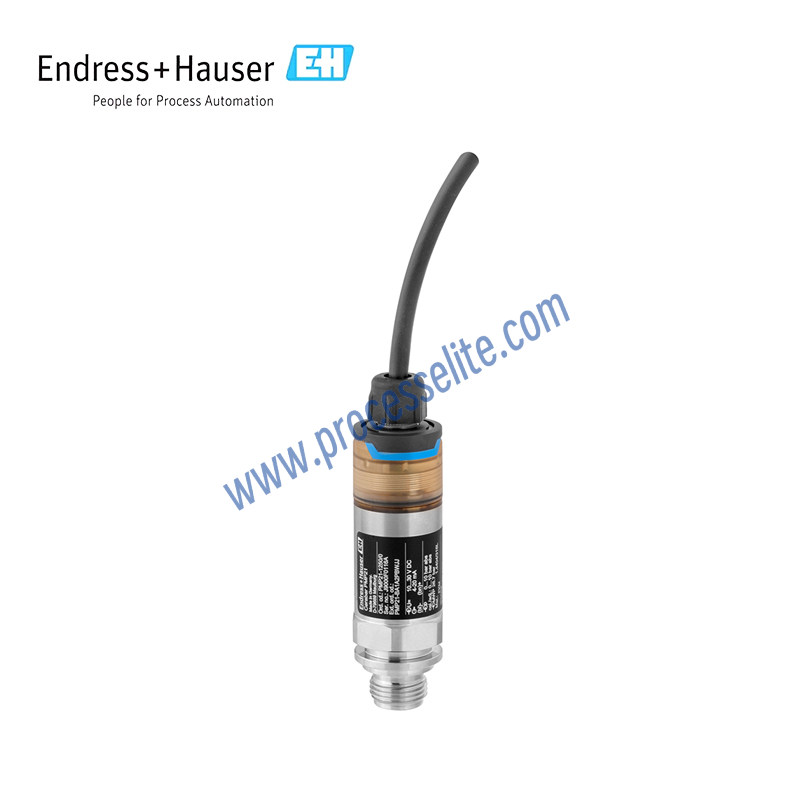

*Picture for reference only !
Product name:
Absolute and gauge pressure Cerabar PMP21
Product series:

PMP21

Product brand:
E+H/Endress+Hauser
Product feature:
• Easy and time-saving installation and setup within the plant due to its very compact design and customizable measuring ranges • High reference accuracy of 0.3% combined with excellent long-term stability and repeatability ensures high-quality process monitoring • Enhanced process availability is ensured through the extensive use of 316L material and the availability of a submersible version with IP68 ingress protection rating • The PMP21 supports plant documentation, traceability, and safety requirements by complying with various hazardous area and marine certifications, with optional EN 10204 3.1 material certificates available
Favorite
Compare
Measuring principle:
Pressure transmitter measurement is primarily based on the deformation characteristics of the diaphragm. When the process pressure changes, the fill fluid transfers the pressure to the Wheatstone resistance bridge, converting the deformation of the sensing element into an electrical signal. The electrical signal is transmitted through wires to the amplifier for amplification and signal processing, and is finally converted into a standard output signal (typically 4–20 mA) for communication with the control system.
Product positioning:
Foundamental
Using scenario:
The Cerabar PMP21 is a highly cost-effective, ultra-compact pressure transmitter. It features a piezoresistive sensor and supports absolute or gauge pressure measurement ranges from 400 mbar to 400 bar. The PMP21 is designed for demanding process industry applications, offering a maximum ingress protection rating of IP68 and using high-quality materials such as 316L stainless steel. With multiple certifications, including explosion protection and marine approvals, it is suitable for a wide range of pressure measurement applications.
