Product name:

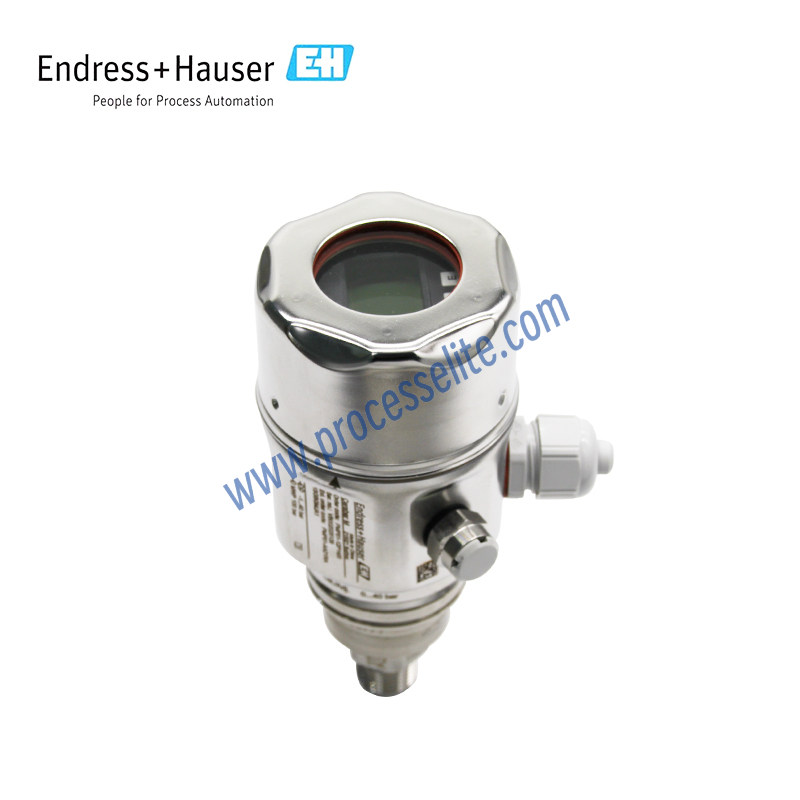

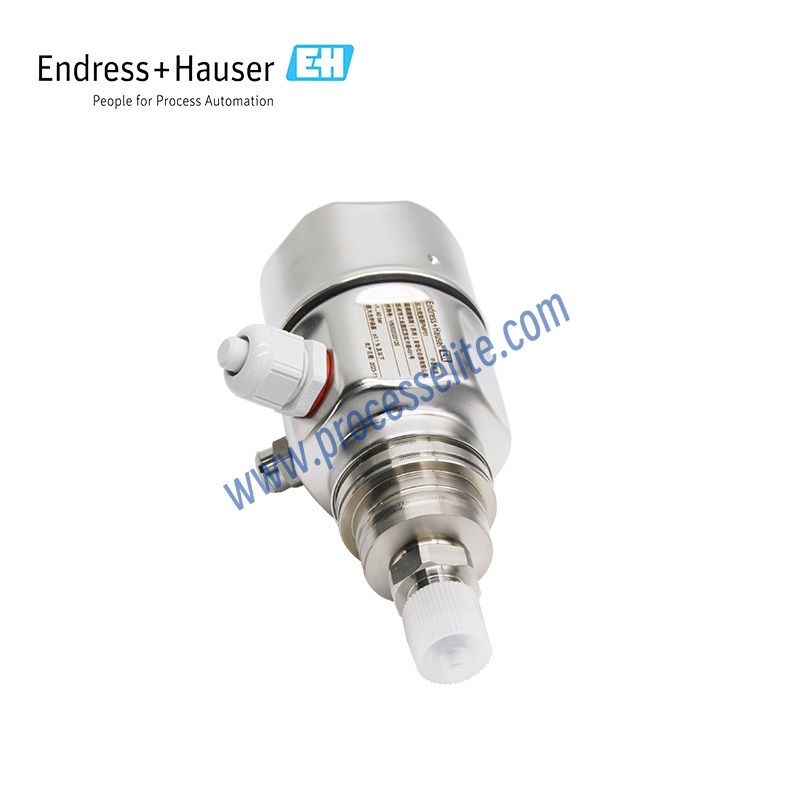

Absolute and gauge pressure Cerabar PMC51
Product series:

PMC51

Product brand:
E+H/Endress+Hauser
Product feature:
• Best fit for vacuum applications and applications with corrosive and abrasive media • Process safety through membrane breakage detection • Overload-resistant high-purity ceramic sensor (99.9% Al₂O₃) • Condensation-resistant design, also suitable for hygienic applications • Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, and FOUNDATION Fieldbus • Process pressure monitoring up to SIL2, certified according to IEC 61508 and IEC 61511 • Available with mounted manifolds: always properly fitted and leak-tested
Favorite
Compare
Measuring principle:
Pressure transmitter measurement is primarily based on the deformation characteristics of the diaphragm. When the process pressure changes, the fill fluid transfers the pressure to the Wheatstone resistance bridge, converting the deformation of the sensing element into an electrical signal. The electrical signal is then transmitted through wires to the amplifier for amplification and signal processing, and finally converted into a standard output signal (typically 4–20 mA) for communication with the control system.
Product positioning:
Standard
Using scenario:
The Cerabar PMC51 digital pressure transmitter features an oil-free capacitive ceramic measuring cell and is mainly designed for process industries and hygienic applications. It is suitable for measuring the pressure of liquids and gases, as well as level, volume, and mass measurements. The PMC51 uses a vacuum-resistant ceramic diaphragm to ensure high safety and reliability of the measuring system. With adjustable measuring ranges and fast setup functions, it simplifies commissioning while reducing costs and time. Designed according to IEC 61508 and IEC 61511 standards, it meets SIL2 functional safety requirements.
