All >> Pressure measurement >> Absolute and gauge pressure Cerabar PMP51

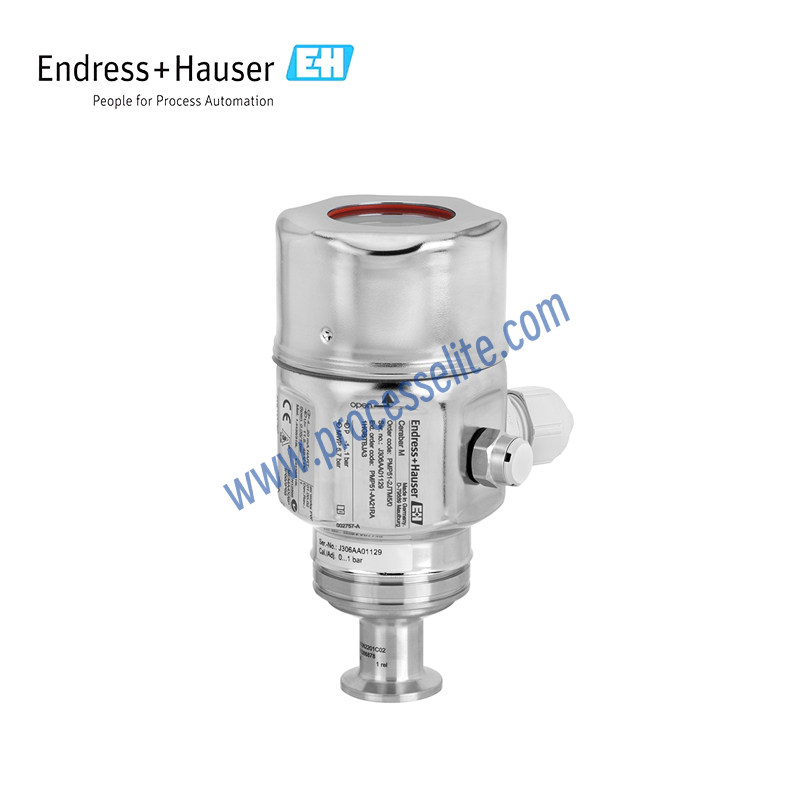

*Picture for reference only !

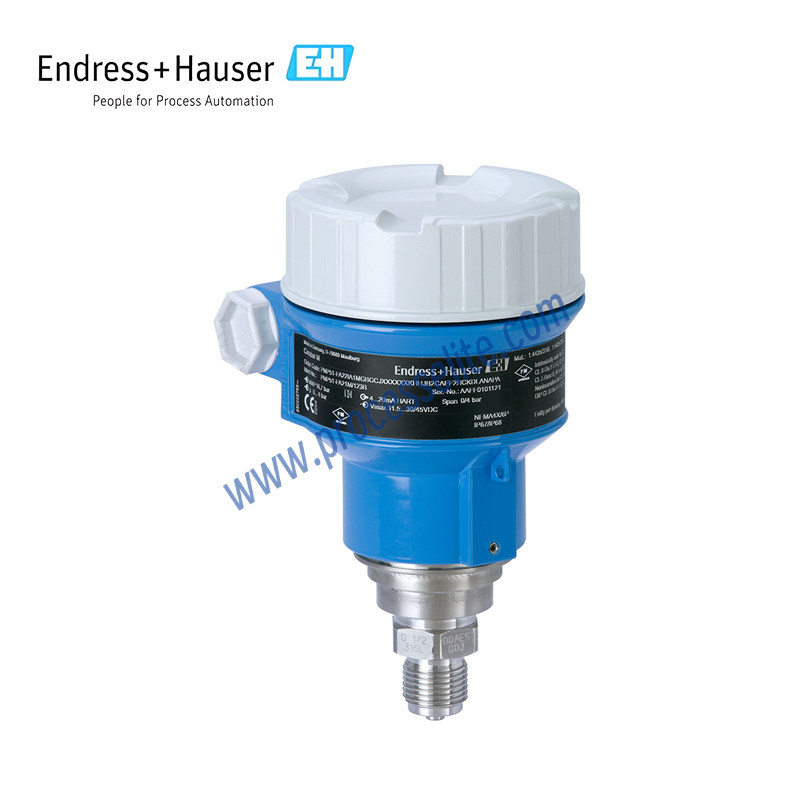

*Picture for reference only !

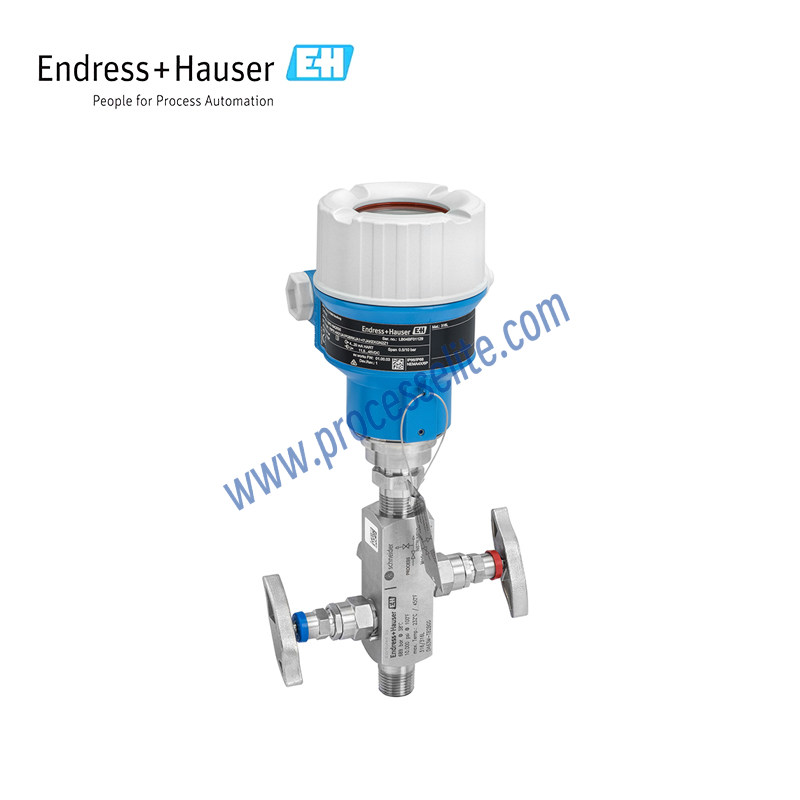

*Picture for reference only !

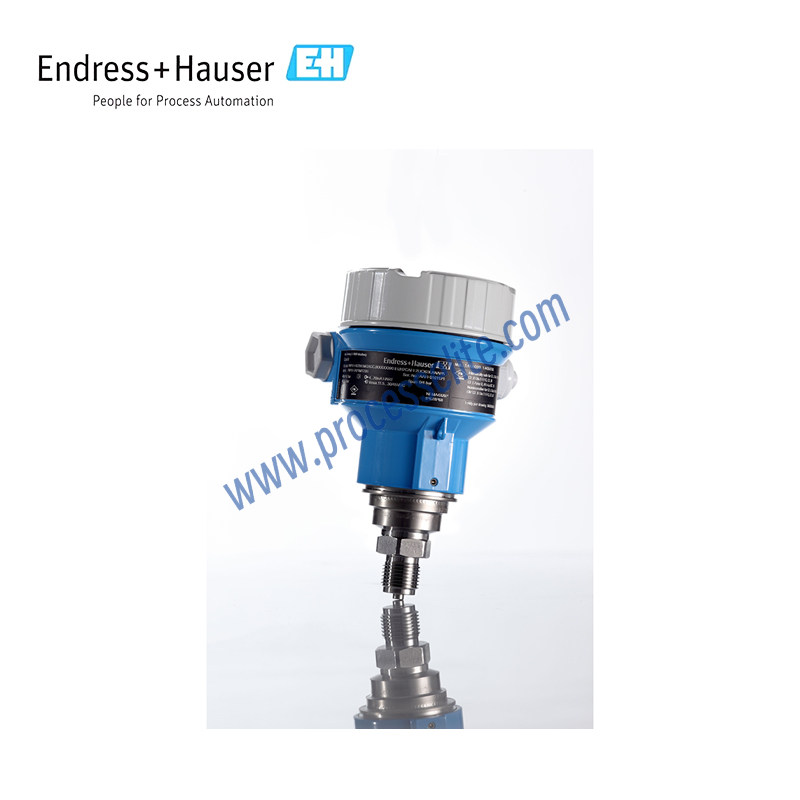

*Picture for reference only !
Product name:
Absolute and gauge pressure Cerabar PMP51
Product series:

PMP51

Product brand:
E+H/Endress+Hauser
Product feature:
• Accurate measurement of the process value even under changing process temperature conditions • Process safety ensured with small flush-mounted process connections for hygienic applications • Process pressure monitoring up to SIL2, certified according to IEC 61508 and IEC 61511 • Modular design concept for easy replacement of display modules or electronics • Easy menu-guided commissioning via on-site display, 4 to 20 mA with HART, PROFIBUS PA, and FOUNDATION Fieldbus • Seamless and independent system integration (HART/PA/FF) • Available with mounted manifolds: always properly fitted and leak-tested
Favorite
Compare
Measuring principle:
Pressure transmitter measurement is primarily based on the deformation characteristics of the diaphragm. When the process pressure changes, the fill fluid transfers the pressure to the Wheatstone resistance bridge, converting the deformation of the sensing element into an electrical signal. The electrical signal is transmitted through wires to the amplifier for amplification and signal processing, and is finally converted into a standard output signal (typically 4–20 mA) for communication with the control system.
Product positioning:
Economical
Using scenario:
The Cerabar PMP51 digital pressure transmitter features a metal diaphragm and is mainly designed for pressure, level, volume, and mass measurement of liquids and gases in process industries and hygienic applications. The PMP51 is specially developed for high-pressure applications, with a maximum operating pressure of up to 400 bar. With adjustable measuring ranges and fast setup functions, it helps reduce commissioning costs and time. Compliant with IEC 61508 and IEC 61511 standards, it meets SIL2 functional safety requirements.
