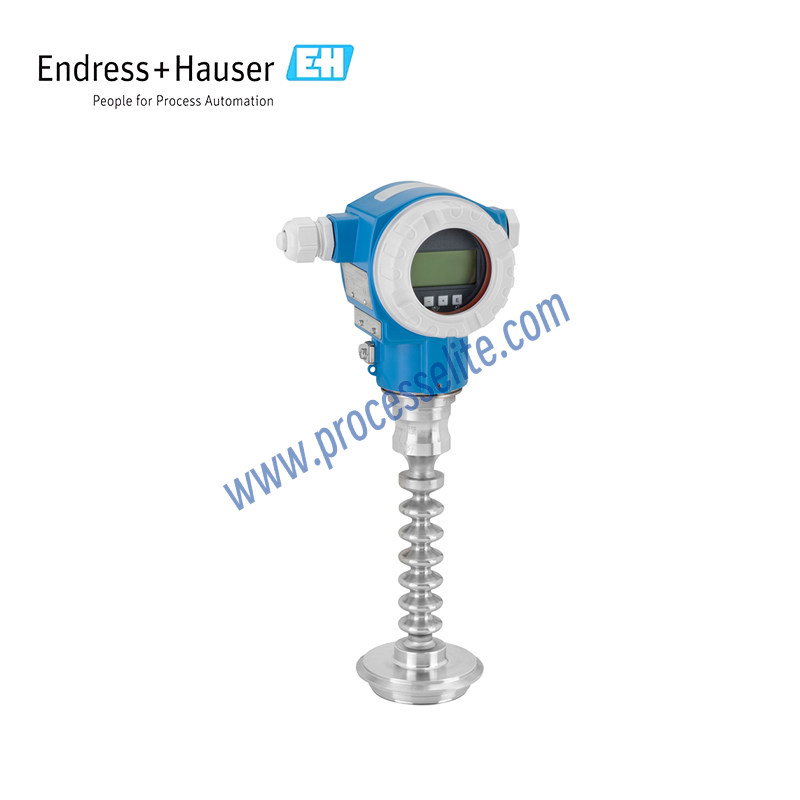

*Picture for reference only !

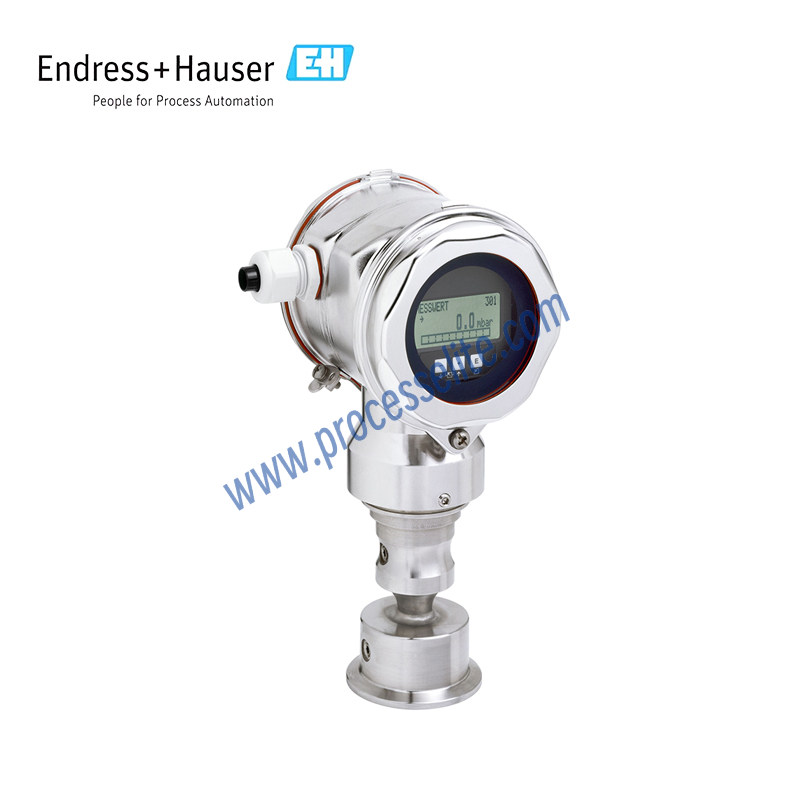

*Picture for reference only !
*Picture for reference only !
*Picture for reference only !
*Picture for reference only !
Product name:
Absolute and gauge pressure Cerabar PMP75
Product series:

PMP75

Product brand:
E+H/Endress+Hauser
Product feature:
• Large variety of process connections and diaphragm materials • New TempC diaphragm minimizes the influence of ambient and process temperature fluctuations • HistoROM data management concept for fast and easy commissioning, maintenance, and diagnostics • Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, and FOUNDATION Fieldbus • Highest safety with gas-tight feedthrough, supporting SIL 2/3 and certified to IEC 61508 • Cost savings with a modular concept for easy replacement of the sensor, display, or electronics • Overload-resistant and function-monitored from the measuring cell to the electronics
Favorite
Compare
Measuring principle:
The measurement principle of a pressure transmitter is primarily based on diaphragm deformation. When the pressure changes, the fill fluid transfers the pressure to a Wheatstone resistive bridge, which converts the deformation of the sensing element into an electrical signal. The electrical signal is transmitted through wires to an amplifier for signal amplification and is ultimately converted into a standard output signal, typically 4–20 mA, for communication with the control system.
Product positioning:
Standard
Using scenario:
The Cerabar PMP75 digital pressure transmitter features a metal diaphragm seal and is primarily designed for process and hygienic applications. It can be used to measure the pressure, level, volume, and mass of liquids or gases. The transmitter is suitable for high-temperature and high-pressure applications, with a temperature range from -70 to 400 °C. The adjustable measuring range and quick setup help reduce costs and save time. The design complies with IEC 61508 and supports SIL 2/3 functional safety requirements.
